46 - Installation manual - Ecotype

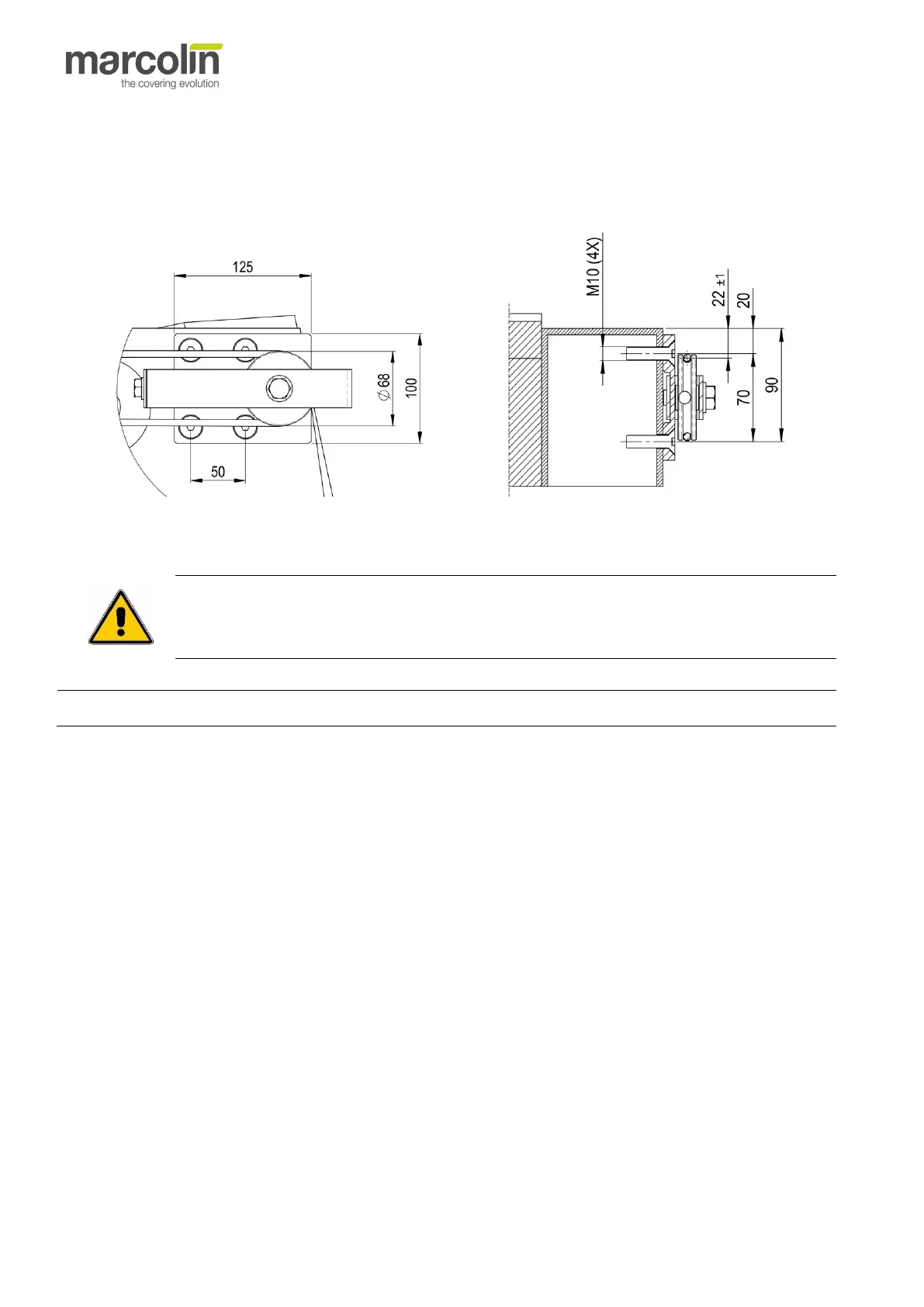

4.3.2 Installing the rear tensioning plate with 70 mm pulley with "LOWERED CABLE SYSTEM”
The most appropriate location of the plate is as close as possible to the rear edge, but, at the same time, at such a distance
as not to hinder the movement of hinges and similar.
1. For the correct operation of the covering, ensure that the axis of the lower plate fixing hole is located at a distance of 90
mm from the upper edge of the body.
2. Proceed with four M10 threaded holes on the side wall, in correspondence with the holes on the plate.
3. Secure the plate using the bevelled head screws M10x40 provided with the kit, ensuring that the tensioning screw is
facing the front of the vehicle.
Incorrect placement could cause damage to the covering itself or to the body.
If in doubt, it is advisable to try out the movement of the rear moving parts to avoid unpleasant
surprises.
During its lifetime, the structure will be subject to vibrations and stresses. It is therefore recommended to use a
medium or high strength thread locking fluid.
