3.4.2 Cable fastening
Now that the steel cable has been properly positioned on its path the cable fastening activities can be carried out.
During the installing activities of the steel cable the use of suitable protective gloves is mandatory in
order to avoid any injury to hands due to a possible fraying of the steel cable mesh.

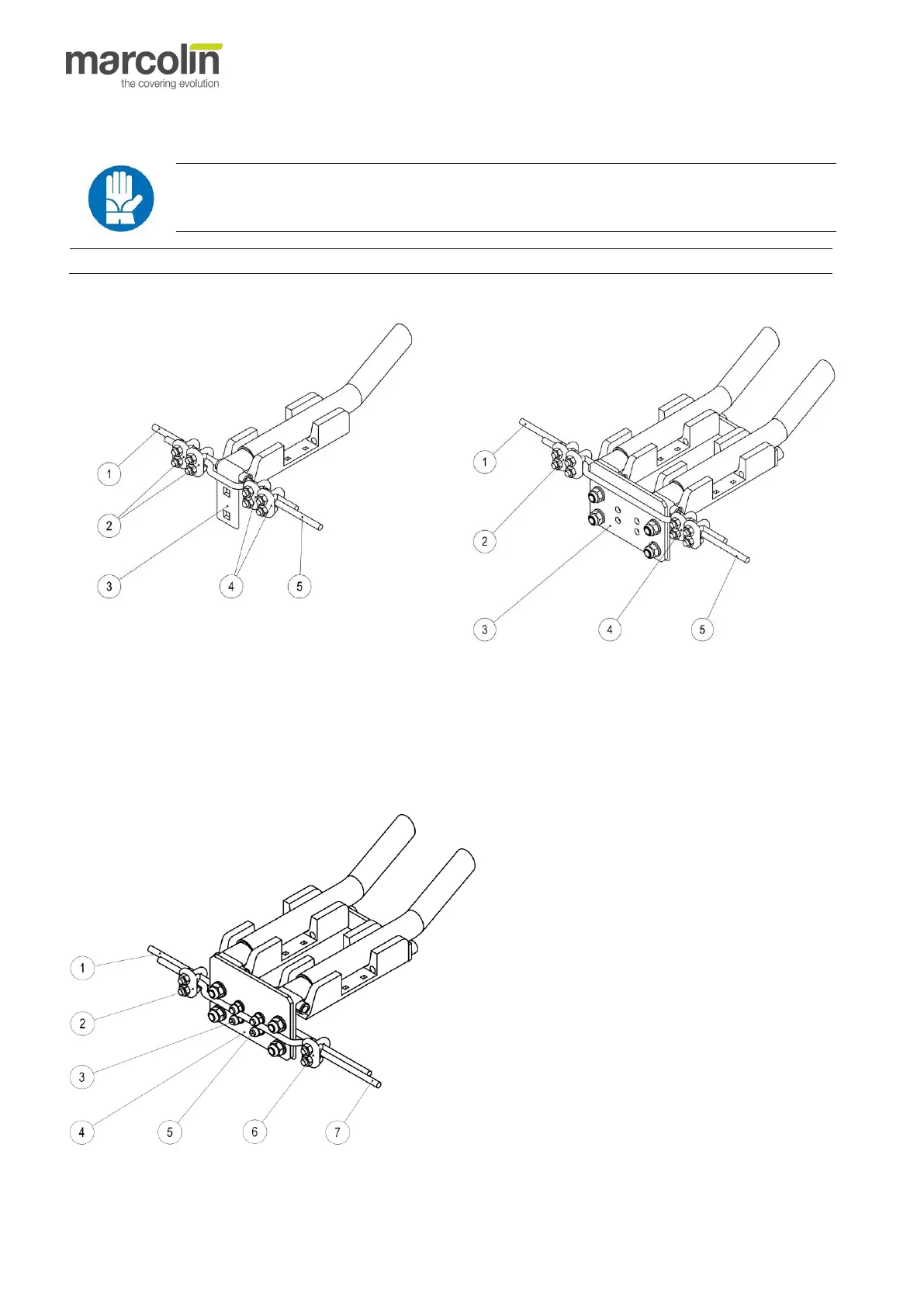

1. Take the cable which comes back from the rear part (pulley side) (5) and pass it at the outside of the pulling bow support
(3).
2. Tighten the steel cable by pulling it manually.
3. Fasten both ends of the cable (1) & (5) pulling them through the specific supplied clamps (2) & (4).
1. Insert two clamps (3) and (5) in the inner side of the
support plate of the double pulling bow (4).
2. Take the end of the cable (1) which comes back from
the vehicle cab side and fasten it with the clamps (3)
and (5) passing it through the inner side of the
support plate (4).
3. Take the end of the cable which comes back from
the rear side of the vehicle (pulley side) (7), overlap
the first one (1) passing it through the outer side of
the support plate (4).
4. Manually, pull the cable which comes back from the
rear side of the vehicle (pulley side) (7) for tensioning
it.
5. Fasten both cable ends with two clamps on the left
(2) and right (6) side of the previously fastened
ones..
