Installation manual - Ecotype - 21

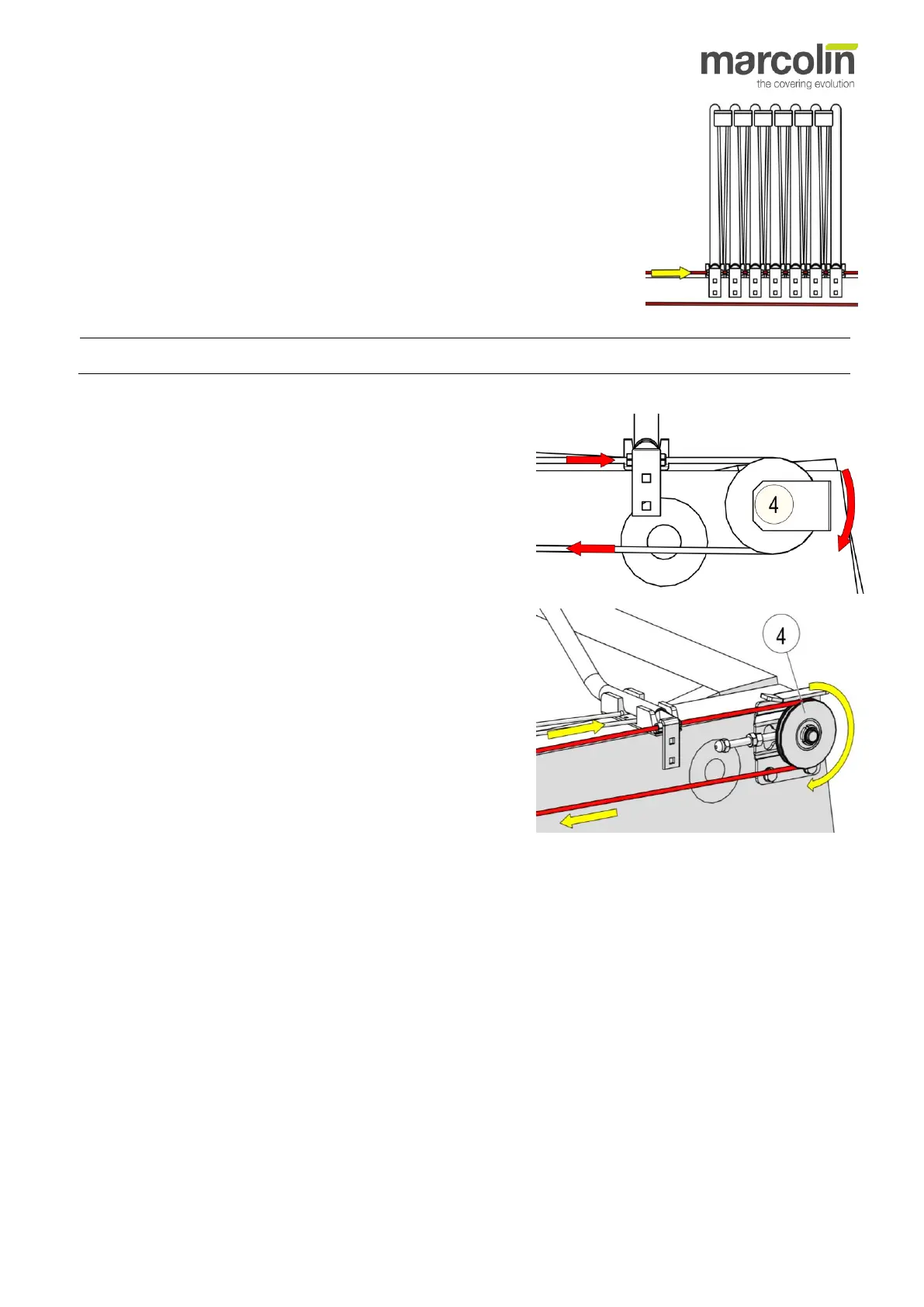

Using the head of the upper cable, proceed as follows:
• Insert the steel cable onto all the bows through the hole on the bow support;
• Last of all, insert the head of the cable into the hole of the first pulling bow;
• Make sure that there is at least 100-150 mm left of the back end of the cable for
further fastening and possible corrections.
Ensure that the bow keeps as perpendicular as possible to the board walls for avoiding any subsequent adjustment
service.
Now proceed with positioning the lower end of the steel cable:
HAND OPERATED VERSION for tipper body length < 8 m
1. Pull the lower end onto the rear part of the body.
2. Wrap the steel cable on the rear idler pulley (4).
3. Bring the end of the cable back to the pulling bow support.
HAND OPERATED VERSION for tipper body length > 8 m
4. Pull the lower end onto the rear part of the body.
5. Wrap the steel cable on the rear idler pulley or on the pulley of
the rear tensioning plate (4).
6. Bring the end of the cable back to the pulling bow support.
