THE ECOTYPE COVERING SYSTEM
2.1 Covering system components
 THE INSTALLER IS OBLIGED TO KNOW THE CONTENT OF THE MANUAL HANDED OVER TO THE OPERATOR
TOGETHER WITH EACH COVERING SYSTEM AND TO OBSERVE COMPLETELY PROHIBITIONS,
REGULATIONS AND ADVICES.
Before installing the covering system it is essential to know well its characteristics and the various elements the system is
made of. The figure below shows the main parts of the covering system.

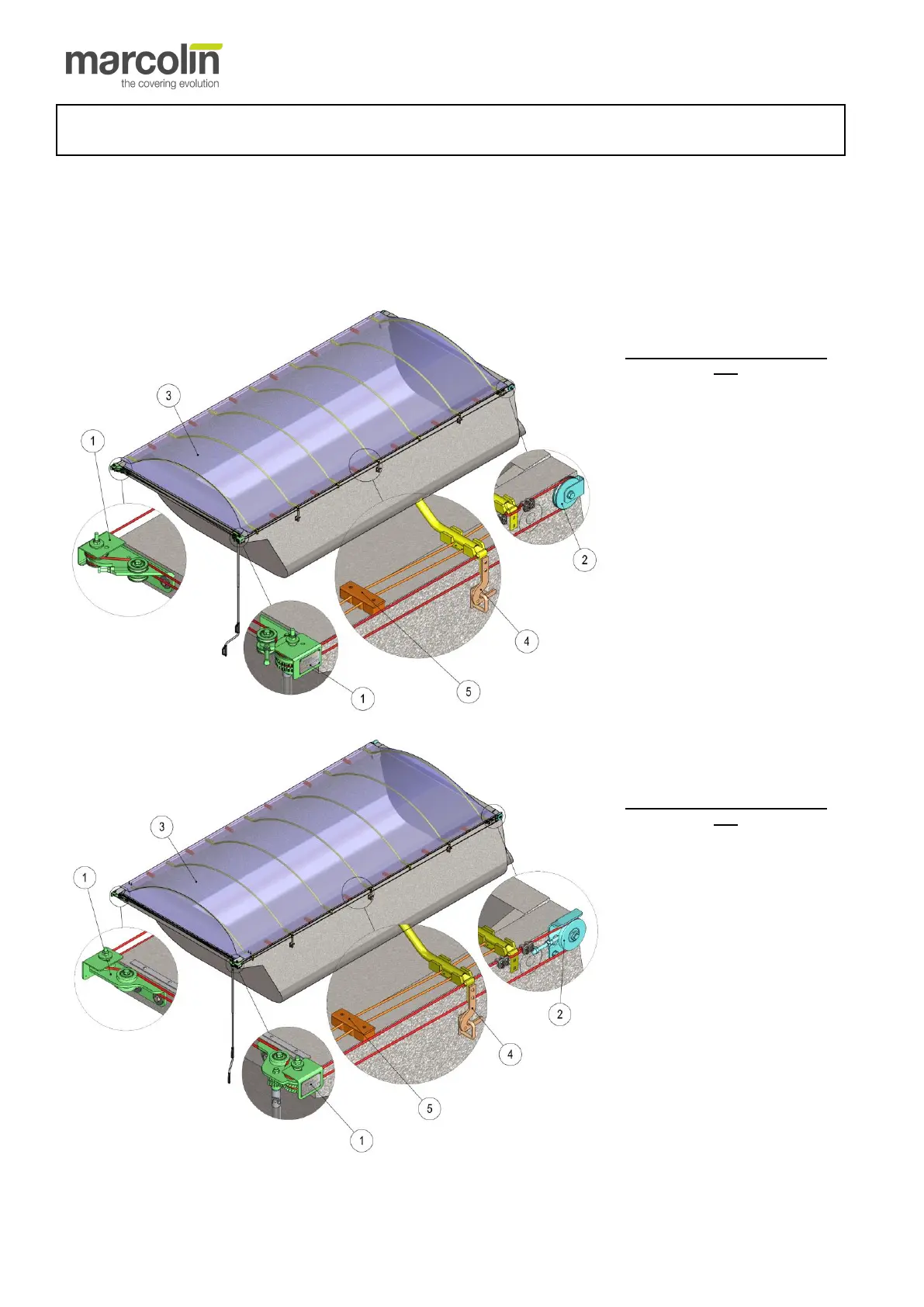

HAND-OPERATED VERSION <
8 m
1. Front covering drive system,
with cable tensioning and
operating rod.
2. Pulley and bracket for the
return of the cable at the rear.
3. Tarpaulin of variable size
according to tipper body length.
4. Covering fastening system
(depending on the model, it
could be supplied with a
hermetic closure with elastic
strings).
5. Folding and lifting system of the
tarpaulin.
HAND-OPERATED VERSION >
8 m
1. Front covering drive system,
with operating rod.
2. Rear cable tensioning system.
3. Tarpaulin of variable size
according to tipper body length.
4. Covering fastening system
(depending on the model, it
could be supplied with a
hermetic closure with elastic
strings).
5. Folding and lifting system of the
tarpaulin.
