26 - Installation manual - Ecotype
3.5 Fastening the operating rod (hand-operated covering system)
When installing the hand-operated covering system, after having installed the driving system, it is necessary to assemble
and mount the operating rod.

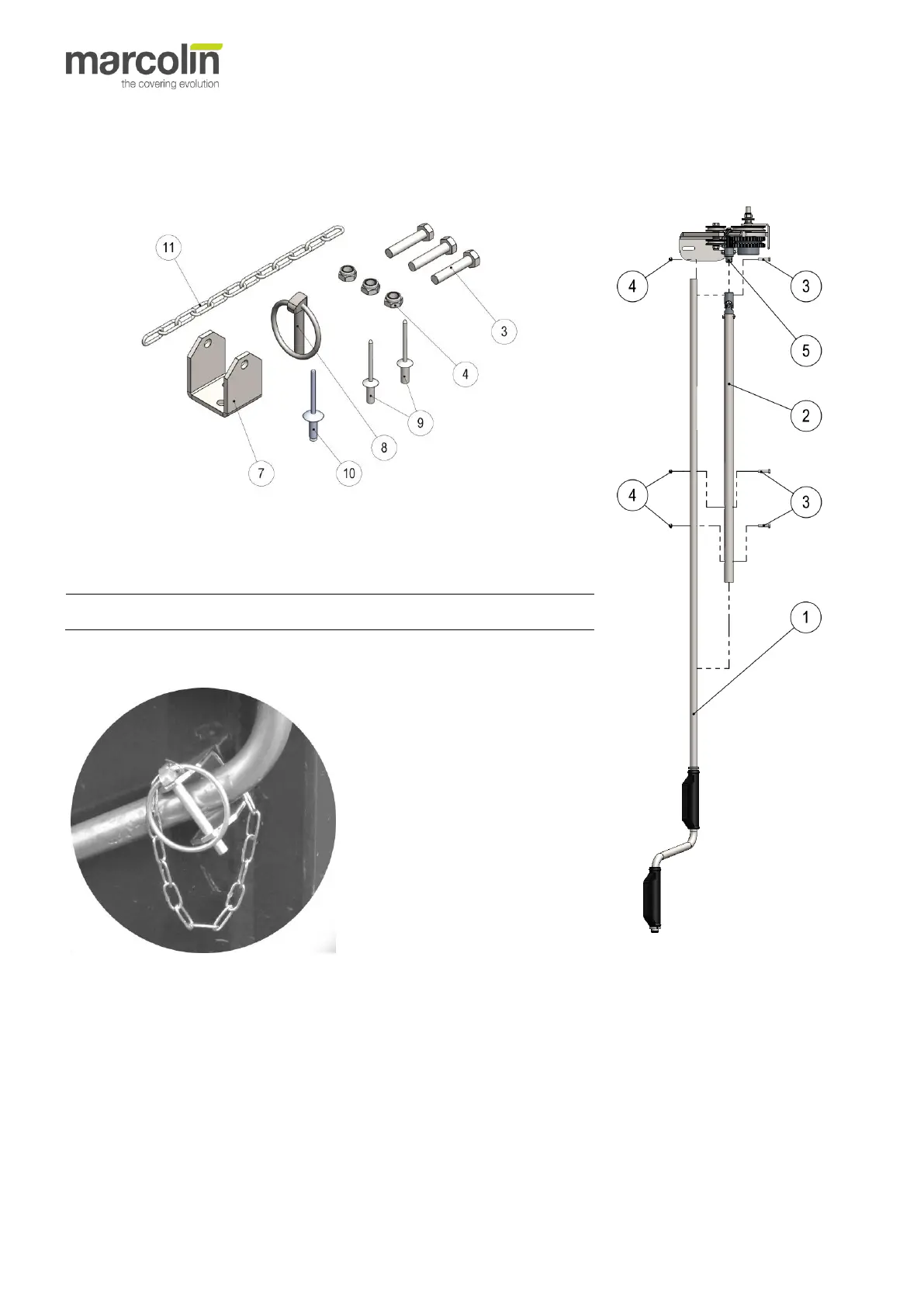

For fastening the operating rod use the following items:
• Insert the operating rod (1) into the extension piece (2) and drill 2 holes for
fastening it at the desired height.
• Fasten the operating rod (1) on the extension piece (2) with the supplied screws
(3) and self-locking nuts (4).
During its working life the structure is subject to vibrations and stress;
therefore, it is recommended to apply a threadlocker Loctite
®
liquid.
• Place and fasten the operating rod on the pivot (5) situated on the manual gear
of the handling system, with the supplied screws (3) and self-locking nuts (4).
Fasten the holder for the rod:
1. Find a suitable location for the
rod in order that it does not
become an obstacle;
2. Drill the tipper body to fit the
holder’s holes;
3. Fasten the holder (7) with
proper supplied rivets (9).
4. Fasten the safety chain (11)
of the forelock (8) with proper
supplied rivet (10).
