Installation manual - Ecotype - 29
After having defined the safety hook height, it is possible to
fasten the U-bolt on the tipper body as follows:
• Place the U-bolt centrally to the safety hook.;
• Drill the board wall of the tipper body and fasten the hooking
with suitable supplied rivets.
Now the positioning of the remaining safety hooks can be done.
From now on the height positioning of the safety hook is the decisive factor for a proper working of the
covering system.

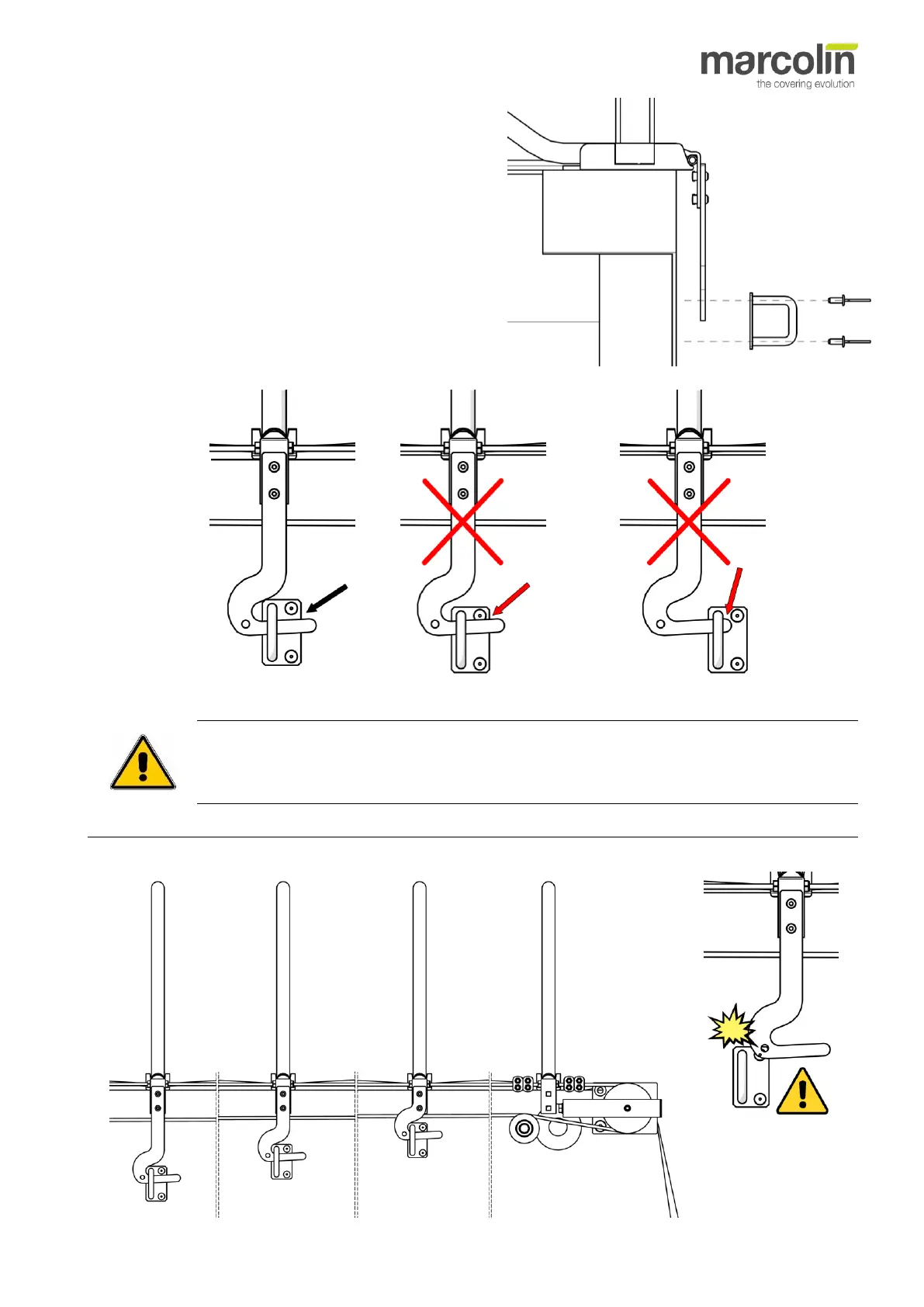

• Proceed installing the remaining safety hooks as shown in the below figure
Before fastening the respective hooking, Check that while folding the tarpaulin the safety hook is fastened on a
different level than the foregoing one, in order not to interfere with the foregoing fastened hooking.
