Covering with lowered cables
Dear Customer, all the Coverings model Sigillo
®
, MCA and Ecotype manufactured by Marcolin Covering s.r.l.
can be purchased with “lowered cables”.
The system is intended for lowering the cable run of the upper steel cable which pulls the covering system. The
cable run is lowered by approx. 22 mm under the body upper edge compared to the standard cable run which is
approx. 11 mm over the body upper edge.
This option aims at fulfilling the requirements of our Customers and eliminating the breakage problems of the
steel cable as a result of cable crushing during the normal loading operations.
If you purchase the covering with lowered cables, please follow the advices on the drawings while fitting the
mechanical part on the front side and the tensioning plates or idler pulleys on the rear part.

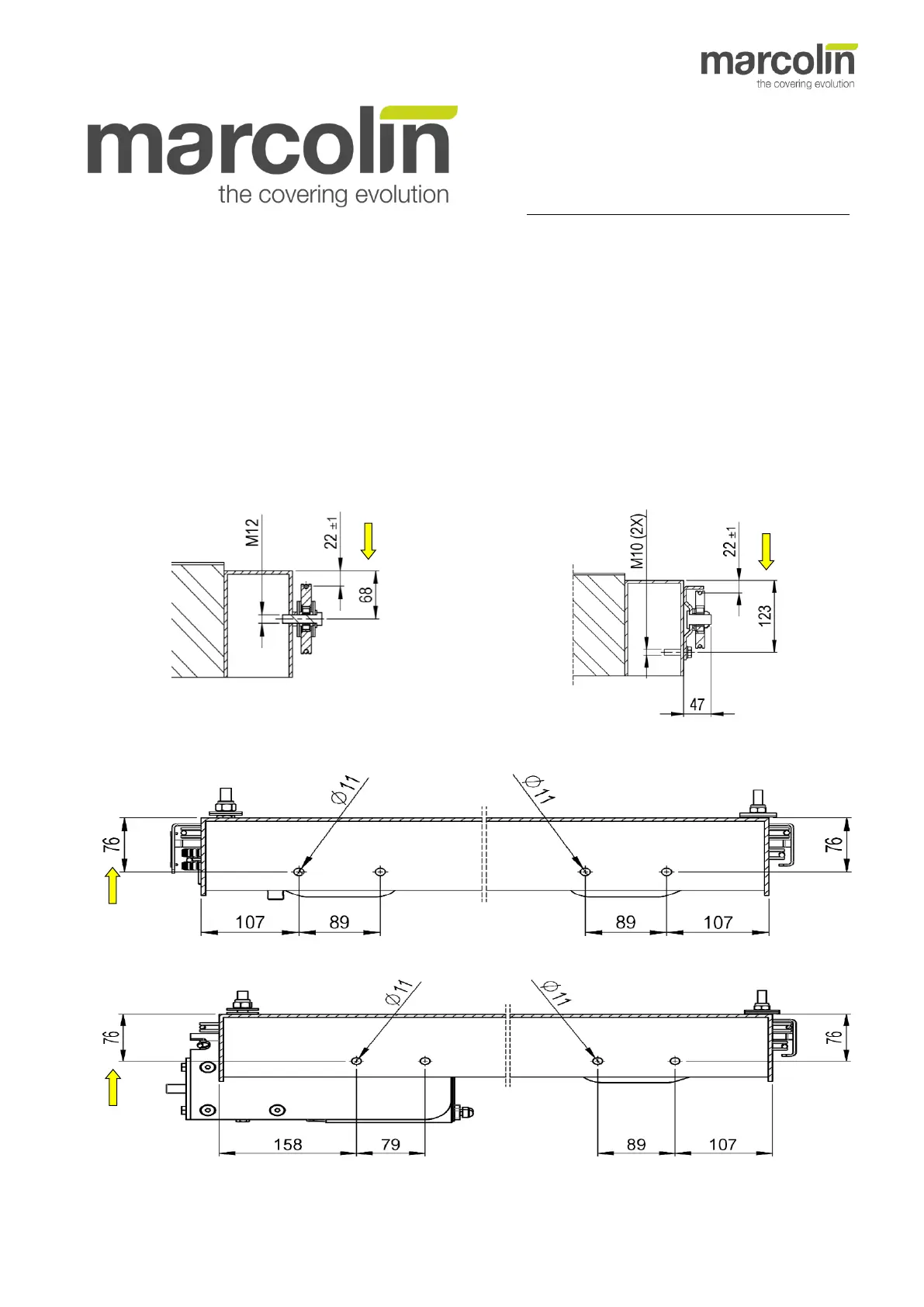

Ecotype covering fitting with lowered cables:
Fitting dimensions for the front mechanical part in case
of lowered cables - hand-operated version for body <
8 m
Fitting dimensions for the front mechanical part in case
of lowered cables - hand-operated version for body >
8 m
