4.2 Explanation of display and symbols.
B
C
A
D
E
06 29 189
OptiTherm+
12.0
08:00
01-03-2011
18.0 °C
00:15
F
H
I
P
O
N
M
K
L
01:00
J

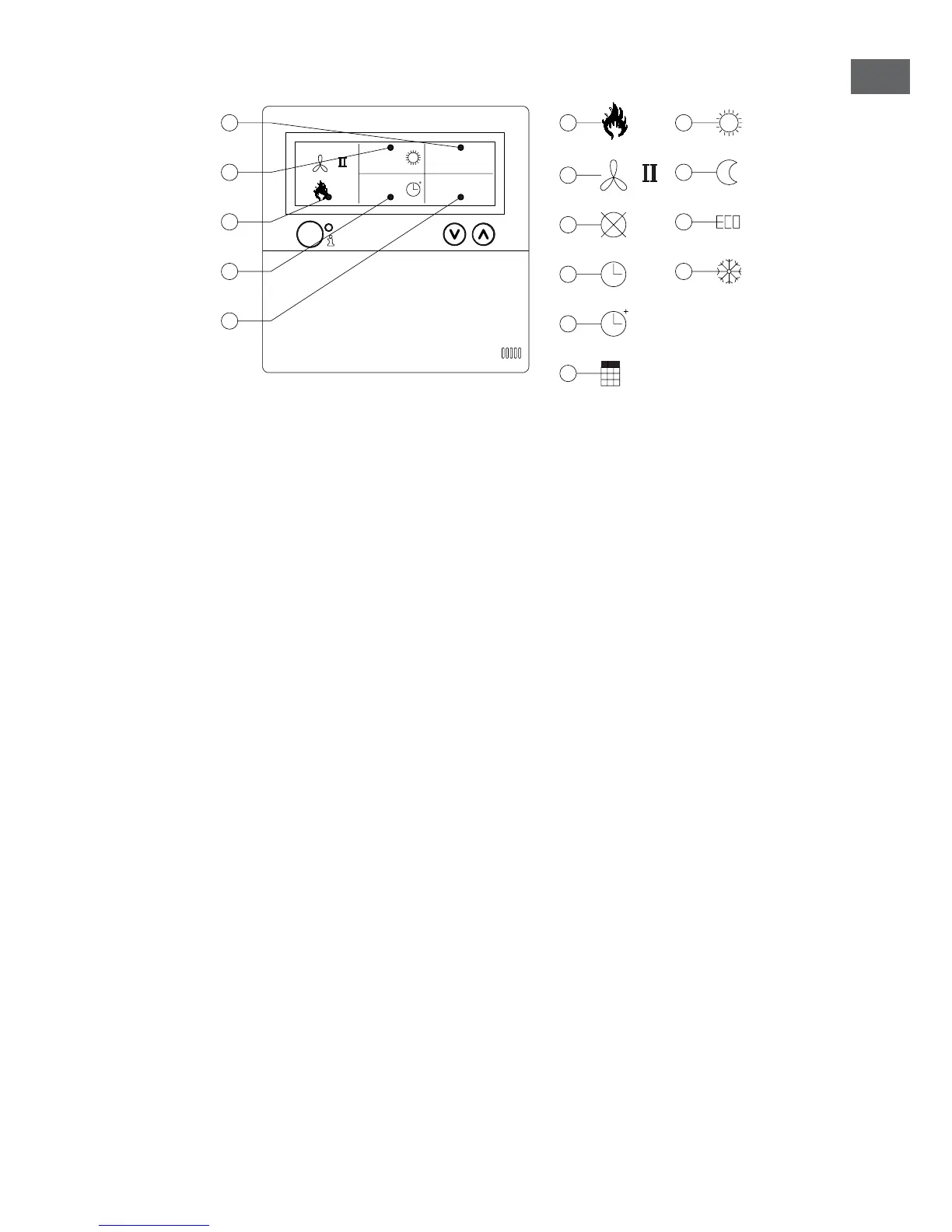

Display
A - Shows the measured room temperature.
B - Displays the desired room temperature.
Displays the mode of operation (DAY, NIGHT, ECO, FROST PROTECTION)
C - Indicates which functional mode is switched on (HEATING, VENTILATION),
if there is a heating request and of the Message
⦻
(clip 1 and 2 on the air heater
disconnected) is active.
D - Reason for the mode of operation.
(clock switch, overtime timer or exception day)
E - Shows the actual date and time
Symbols
F - Heating mode switched on symbol
H - Ventilator switched on symbol
I or II indicates if the ventilator is in high or low position (if applicable).
I - Message OFF (clip 1 and 2 on equipment disconnected)
J - Clock switch active symbol
K - overtime timer active symbol
(running time indicates when this function will be switched off again)
L - Exception day active symbol
M - Day temperature symbol (factory setting 18 °C)
N - Night temperature symbol (factory setting 15 °C)
O - ECO temperature symbol (factory setting 8 °C)
P - Frost protection symbol (factory setting 5 °C)
