Safety Notes
• The 60822 Power Supply Unit is for use for digital model
railroads to supply power to the m83 / m84 / k83 decoders.
• The operation instructions for this unit are a component
part of the product must therefore be kept in safe place
as well as transferred along with the product to third
parties.
• The voltage supply for the Power Supply Unit comes
exclusively by means of the 66360/66361/66365/66367
switched mode power pack.
• Connections to the 60822 Power Supply Unit may only be
done when there is no voltage present.
• The housing may not be opened.
• The 60822 Power Supply Unit is designed for use in dry
areas only.
1
2b
2a
2a
2b
3
6
4
5

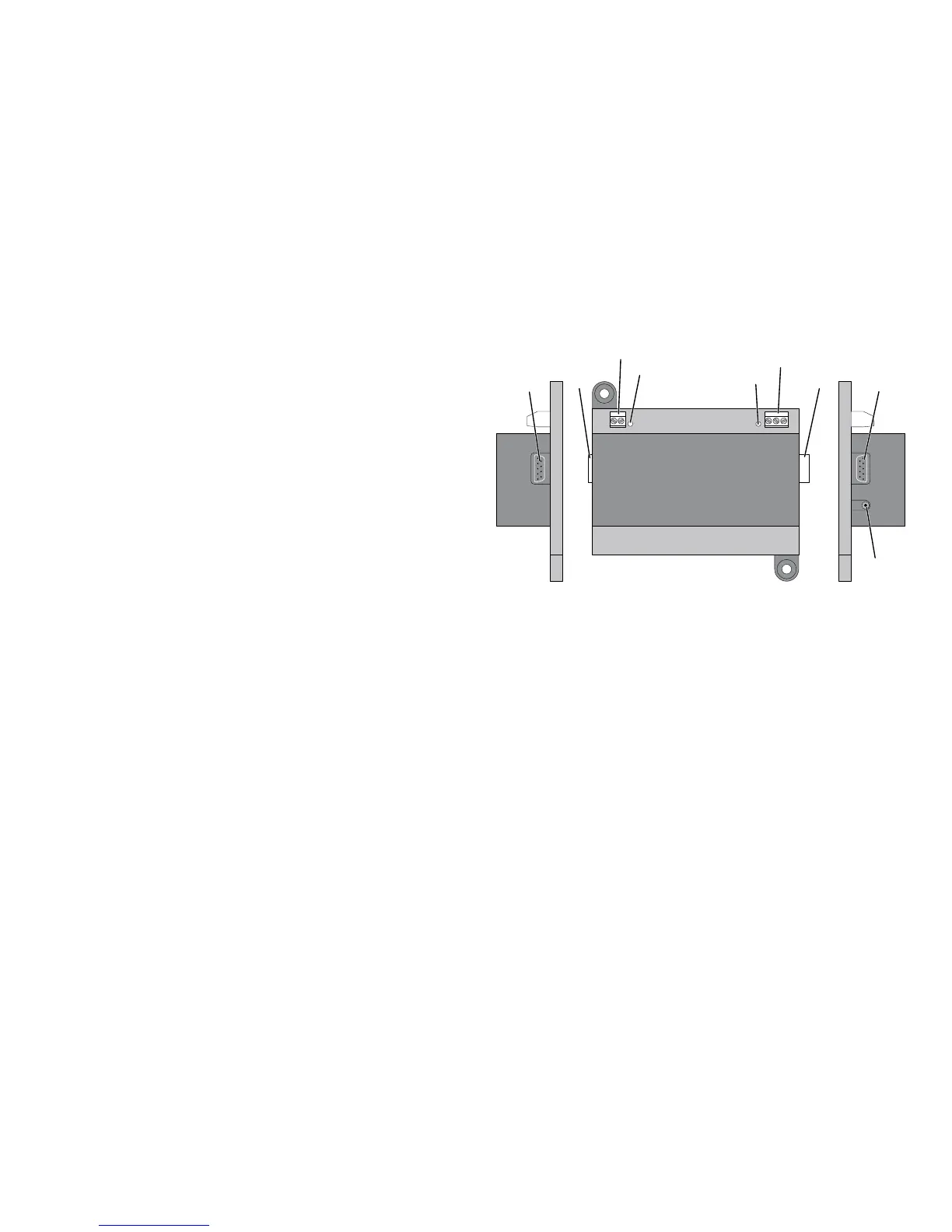

1 Connection socket for the 66360/66361/66365/66367,
voltage supply
2 The right socket 2a is intended for direct connections for
a m83 / m84 decoder.
The left socket 2b has no function.
3 Currently not used.
4 Terminal clips for k83 decoder.
5 Green LED, status indicator
(shows that the device is supplied with voltage).
6 Red LED, overload indicator
