7
0 B
k83
B 0 L
Anschluss für 66360/66361
m83 / m8460822
Universalversorgungseinheit
L 0 B 0 B

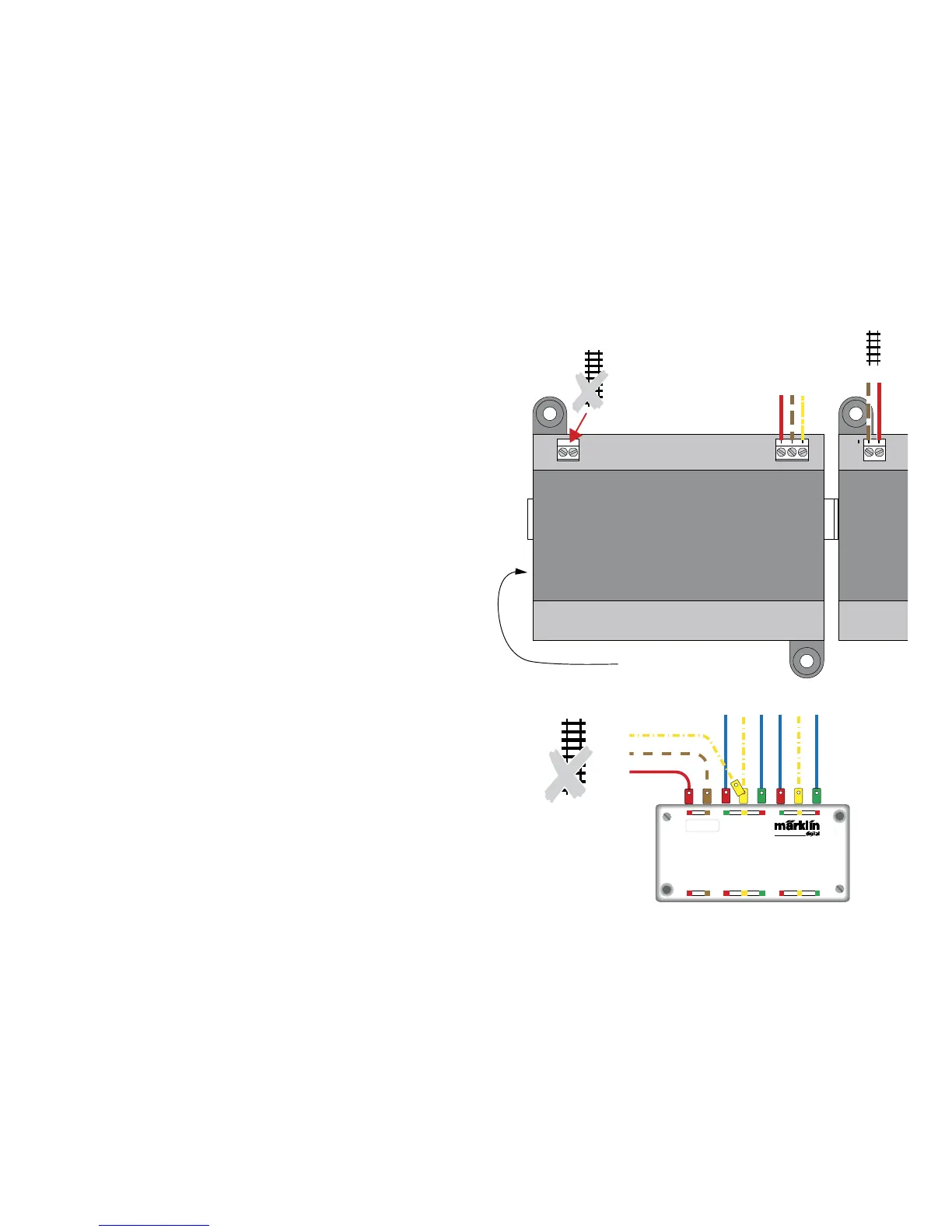

Electrical Connections
The 60822 Power Supply Unit requires only voltage supply
from the 66360/60361/60365/66367 switched mode power
pack.
The connections to the m83 / m84 decoders are done by
means of the side plug connection directly from device to
device, without an intermediate cable or wire.
The digital signal from the track (B/0) must be supplied at
the first m83/m84 connected to the system.
The 60822 Power Supply Unit cannot be supplied with
voltage by being connected to the track.
Connections for
66360/66361/66365/66367
decoder k 83
B
0
L
k83
Older k83 decoders can also be supplied with power with
the 60822 Power Supply Unit. These are connected to it
according to the graphics nearby on this page.
