Marstek JUPITER Series - Installation Instructions; Pre-Installation Inspection; Select Installation Location; Installing Tools

Before unpacking the device, check the packaging for visible damage, such as holes, cracks, or
other signs of possible internal damage, and check the model number of the device. If there are
any abnormalities in the packaging or the energy storage model does not match, do not unpack
it and contact your dealer as soon as possible.
After unpacking the device, check that the delivery items are complete and that there is no
visible external damage. If anything is missing or damaged, contact your dealer.
Installation Instructions
3.
3.1 Pre-installation inspection
3.2 Select installation location
Support floor installation, installation angle requirements:

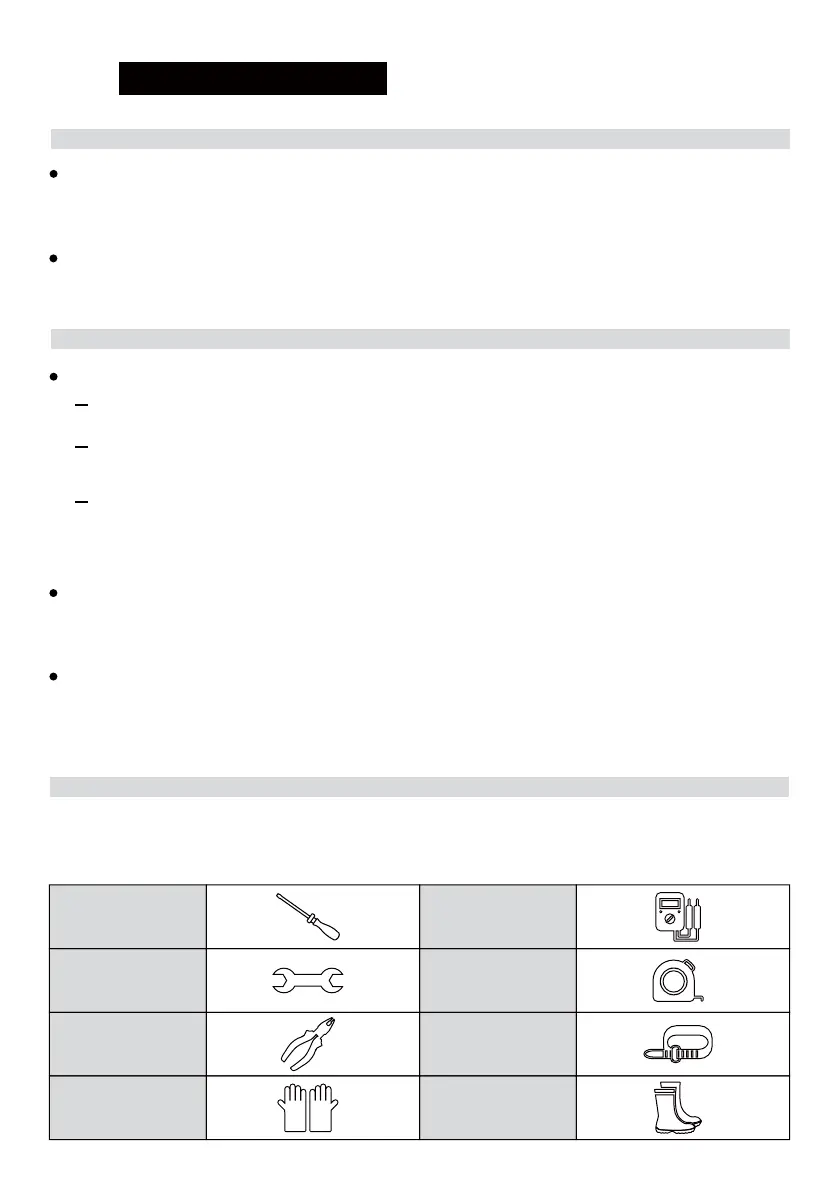

Installation tools include but are not limited to the recommended tools listed in the table below.
Other auxiliary tools may be used as appropriate during on-site installation.
3.3 Installing Tools
Screwdrivers
Wrench
Diagonal pliers
Insulating gloves
Multimeter
Measuring tape
Cable ties
Insulated shoes
* Note:
In the actual installation environment, the open circuit voltage of the photovoltaic module shall
not exceed the maximum voltage that the DC input side of the balcony photovoltaic integrated
machine can withstand. If the DC input voltage of the balcony photovoltaic integrated machine
exceeds this voltage, the balcony photovoltaic integrated machine may be damaged.
The DC terminals of the balcony photovoltaic integrated machine are printed with "+" and "-".
This mark does not indicate the positive or negative current, but only the type of terminal.
Among them, "+" indicates the male end, and "-" indicates the female end.
The energy storage device cannot be installed with the device tilted forward, horizontal, inverted, backward
or sideways.
For the installation location, please choose a solid brick-concrete structure, concrete wall and floor. If other
types of walls and floors are selected, the walls and floors must be made of flame-retardant materials and
meet the load-bearing requirements of the equipment.
When installing the all-in-one machine, ensure that there are no other equipment (except JUPITER-related
equipment and awnings) and flammable or explosive items around it, and reserve enough space to ensure
installation heat dissipation and safety isolation requirements.
