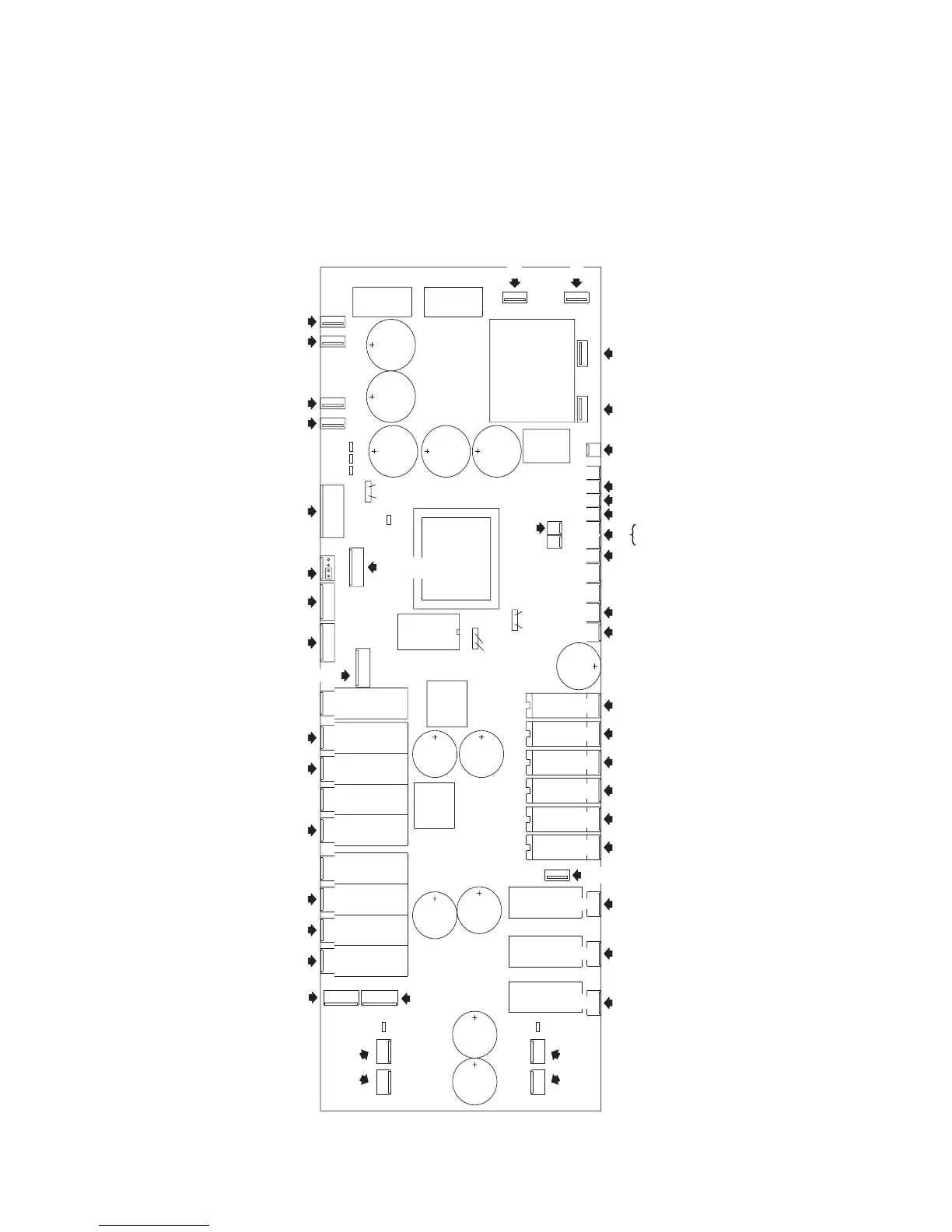

C IRCUIT BOARD CONNECTIONS
MAC 2000 Profile PCB
PL1182
PL401 PL402
PL805
PL804
PL704
PL1001
PL1002
PL1009
PL1101
PL403
PL404
PL1109
PL501
PL503
PL502
PL603
PL602
PL601
PL605
PL604
PL701
PL203PL202
PL108
PL206
PL903
PL901
PL904
PL905
F902 F901
PL214 PL212
PL211PL213
PL215
PL309
PL308
PL307
PL306
PL303
PL304
PL305
PL104
PL105
PL106
PL107
PL102
PL103
PL302 PL301
1 (EFFECT WHEEL)
1 (EFFECT WHEEL)
2 (ROT.EFFECT)
2 (ROT.EFFECT)
7 (IRIS)
7 (IRIS)
8 (GOBO 2)
8 (GOBO 2)
5 (GOBO 1)
5 (GOBO 1)
6 (COLOR)
6 (COLOR)
10 (ROT. GOBO 2)
10 (ROT. GOBO 2)
4 (ROT. GOBO 1)
4 (ROT. GOBO 1)
12 (DIMMER)
12 (DIMMER)
16 (CYAN)
16 (CYAN)
14 (MAGENTA)
14 (MAGENTA)
13 (YELLOW)
13 (YELLOW)
15 (CTC)
15 (CTC)
9 (FOCUS)
9 (FOCUS)
3 (ZOOM)
3 (ZOOM)
24 (LIGHT SENSOR)
24 (LIGHT SENSOR)
PL201
PL204
21 (P/T SWITCH)
21 (P/T SWITCH)
22 (OPTO 1)
22 (OPTO 1)
23 (OPTO 2)
23 (OPTO 2)
PL902
TILT
PAN
GND
DISPLAY
F1 (FAN HEAD SMALL)
F1 (FAN HEAD SMALL)
(FAN HEAD SMALL)
(FAN HEAD SMALL)
F2 (FAN HEAD LARGE)
F2 (FAN HEAD LARGE)
(FAN HEAD LARGE)
(FAN HEAD LARGE)
FAN BASE
FAN BASE
FAN BASE
FAN BASE
ELEC. BALLAST
ELEC. BALLAST
BLACK
BROWN
(BLUE) (BLUE)
6.3 AT 4.0 AT
12V AC ORA.
12V AC ORA.
12V AC YEL.
24V AC BLACK
24V AC BLACK
24V AC RED
24V AC RED
LINK
PL103
TRANSMISION ENA.
TRANSMISION DISA.
UPLOAD ENA.
UPLOAD DISA.
LOCK
BOOT
(DOOR
SWITCH)
HEAD TEMP. SENSOR
HEAD TEMP. SENSOR
FUSEFUSE
25
25 26
26
P/N 33120024-B
MADE IN DENMARK BY
MARTIN PROFESSIONAL A/S
(C) 2000 01001513C
11
19 (EFFECT, ROT.
19 (EFFECT, ROT.
EFFECT SENSOR)
20 (GOBO SENSOR)
20 (GOBO SENSOR)
18 (CMY SWITCH)
18 (CMY SWITCH)
CPU
D
+30V
+12V
+5V
LD402LD401
+5V ISO
