Transportation 5
T
RANSPORTATION
Important! Release the transport locks before operating the fixture.
Included items
The MAC 2000 Profile is shipped in a 1 or 2 unit flight case that
contains the following items.
• User manual
• 2 clamp attachment brackets
Transport locks
The head and yoke may be locked for transportation and service.
The locks are shown in Figure 1. The fixture must be unlocked
before operation.
Single flight case
Unpacking the fixture
1 Remove the top of the flight case.
2 With one person on each side, lift the fixture out of the
bottom of the flight case.
3 Release the pan and tilt locks before operating.
Packing the fixture
1 Disconnect the fixture from power and allow it to cool.
2 Lock the head and yoke in the position shown in Figure 2.
3 Place the fixture in the bottom of the flight case. Place the
top section over the fixture without forcing.

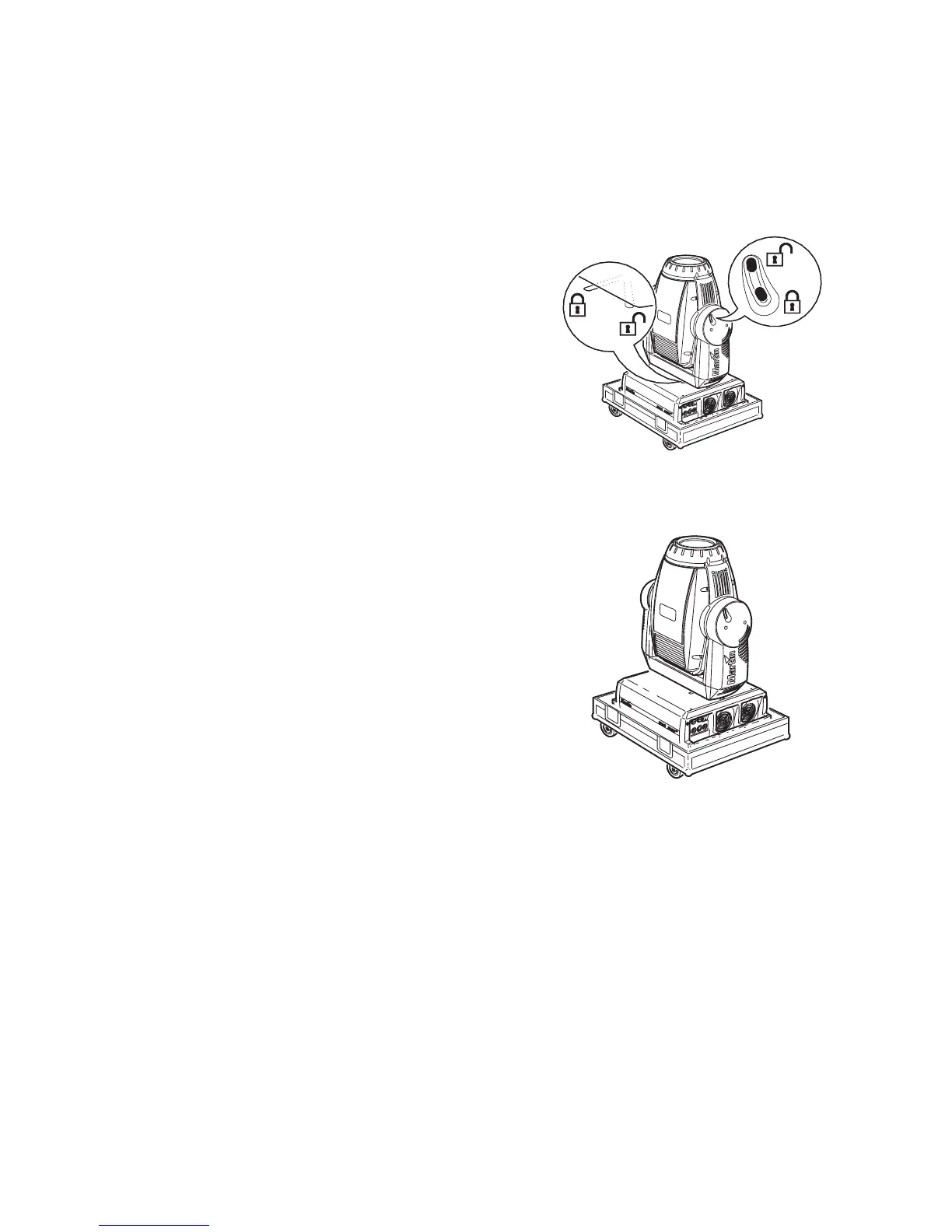

Figure 1: Pan and tilt locks
Figure 2: Single unit transport position
