18 MAC 600/E
MAC 600 E (electronic ballast)
The electronic ballast works at any voltage between 100 and 250 volts, and at any frequency between 50 and 60 Hz.
1. Disconnect the fixture from AC power. Remove the top covers.

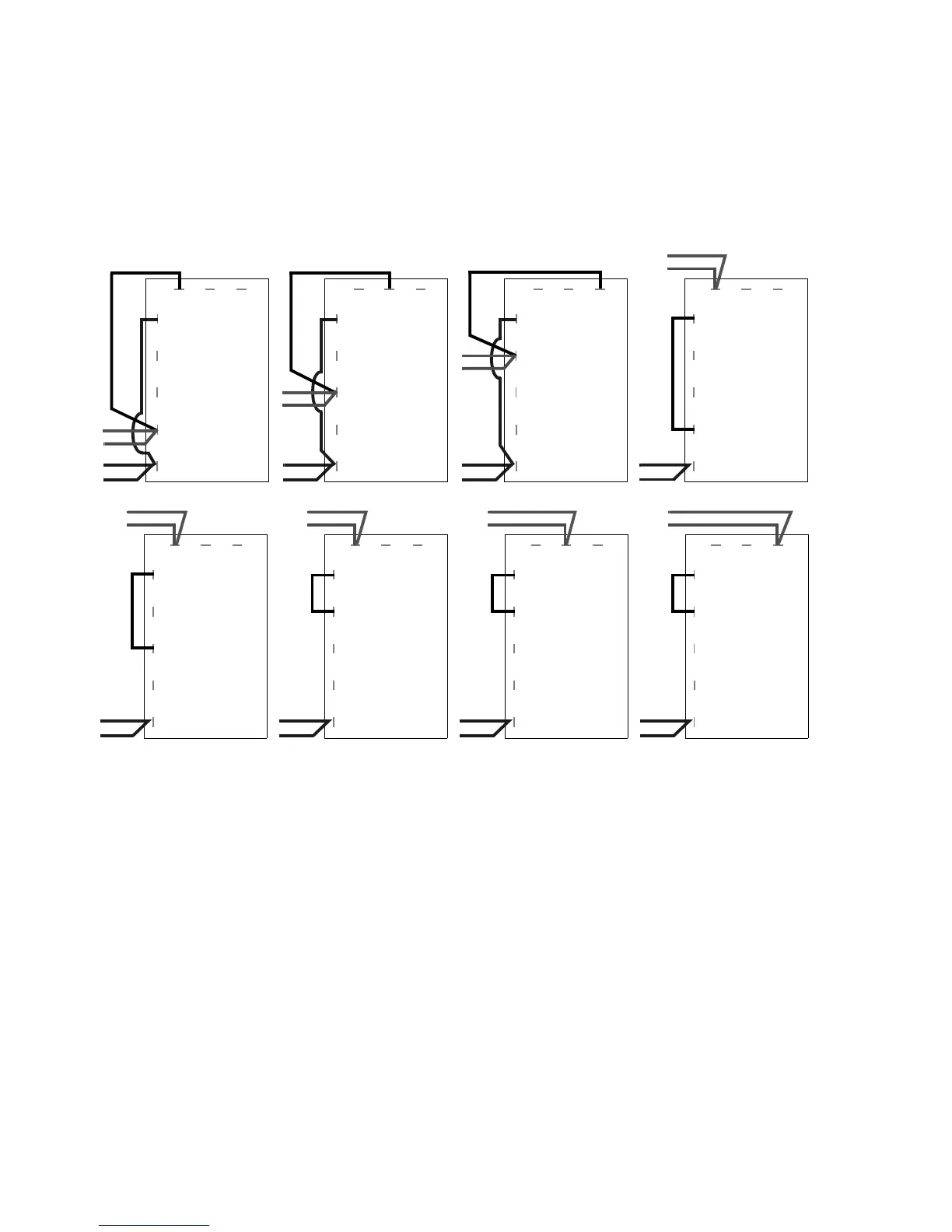

2. Tap the transformer for the local supply voltage as shown below.
3. Verify that the primary fuse, which is located near the power switch, is correct for the voltage setting.
Use a T 6.3 A fuse when the transformer is set at 200, 210, 220, 230, or 240 V. Use a T 10 A fuse
when it is set at 100, 110, or 120 V.
4. Replace the top covers before applying power.
1
4
5
7 8 9
black
blue
blue
110 V
3
red
brown
6
blue
1
3
4
5
6
7 8 9
brown
red
black
blue
blue
220 V
1
3
4
5
6
7 8 9
brown
red
black
blue
blue
230 V
1
3
4
5
6
7 8 9
brown
red
black
blue
blue
240 V
1
4
5
7 8 9
black
blue
blue
100 V
3
red
brown
6
blue
1
4
5
7 8 9
black
blue
blue
120 V
3
red
brown
6
blue
MAC 600 E Transformer Settings
1
3
4
5
6
7 8 9
brown
red
black
blue
blue
200 V
1
3
4
5
6
7 8 9
brown
red
black
blue
blue
210 V
