Martin MAC 600E - Specifications; Electrical, magnetic ballast version; Electrical, electronic ballast version; Compatible lamps

User Manual 25
appendix e
SPECIFICATIONS
Measurements
• Dimensions (LxWxH) without clamps.................................... 481 x 456 x 610 mm (18.9 x 17.9 x 24 in)
• Minimum rigging distance, center to center................................................................... 457 mm (18 in)
• Weight, without clamps, MAC 600 .............................................................................. 31.5 kg (69.3 lb)
• Weight, without clamps, MAC 600 E ........................................................................... 25.4 kg (55.9 lb)
Electrical, magnetic ballast version
• Ballast taps ............................................................................ 200/230/245 V, 50 Hz; 208/27 V, 60 Hz
• Power and current............................................. 750W, 3.9A @ 230V/50Hz; 750W, 4.2A @ 208V/60Hz
• Power factor (PF)......................................................................................................................... 0.85
Electrical, electronic ballast version
• Transformer taps....................................................... 100/110/120/200/210/220/230/240 @ 50 - 60 Hz
• Power and current................................................................................. 690 W, 3.2 A @ 230 V / 50 Hz
• Power factor (PF)......................................................................................................................... 0.94
Fuses
• Primary fuse, MAC 600, MAC 600 E @ 200 - 250 V AC ................................................ T 6.3 A, 250 V
• Primary fuse, MAC 600 E @ 100 - 130 V AC .............................................................. T 10.0 A, 250 V
• Fuse F601 ................................................................................................................... T 5.0 A, 250 V
• Fuse F602 .................................................................................................................... T 4.0 A, 250 V
• Fuse F603 ................................................................................................................ T 0.315 A, 250 V
Communication
• Protocols ................................................................................USITT DMX512 (1990) / Martin RS-485
• DMX start code ................................................................................................................................. 0
• Recommended cable......................... 24 AWG (min.), low capacitance, 85-150 Ω shielded twisted pair
• Connector type....................................................................... 3-pin XLR male/female (pin 1 = screen)
Compatible lamps
• Osram HSR-575/2..........................................575 W, 85 lm/W, 1000 h avg. life, 6000K, P/N 97010200
• Osram HSD-575.............................................575 W, 78 lm/W, 3000 h avg. life, 7200K, P/N 97010207
• Philips MSR-575/2 .........................................575 W, 85 lm/W, 1000 h avg. life, 7200K, P/N 97010201
• Philips MSD-575 ............................................575 W, 75 lm/W, 2000 h avg. life, 6000K, P/N 97010202
25°
437
579
145
356
403
420
481
456

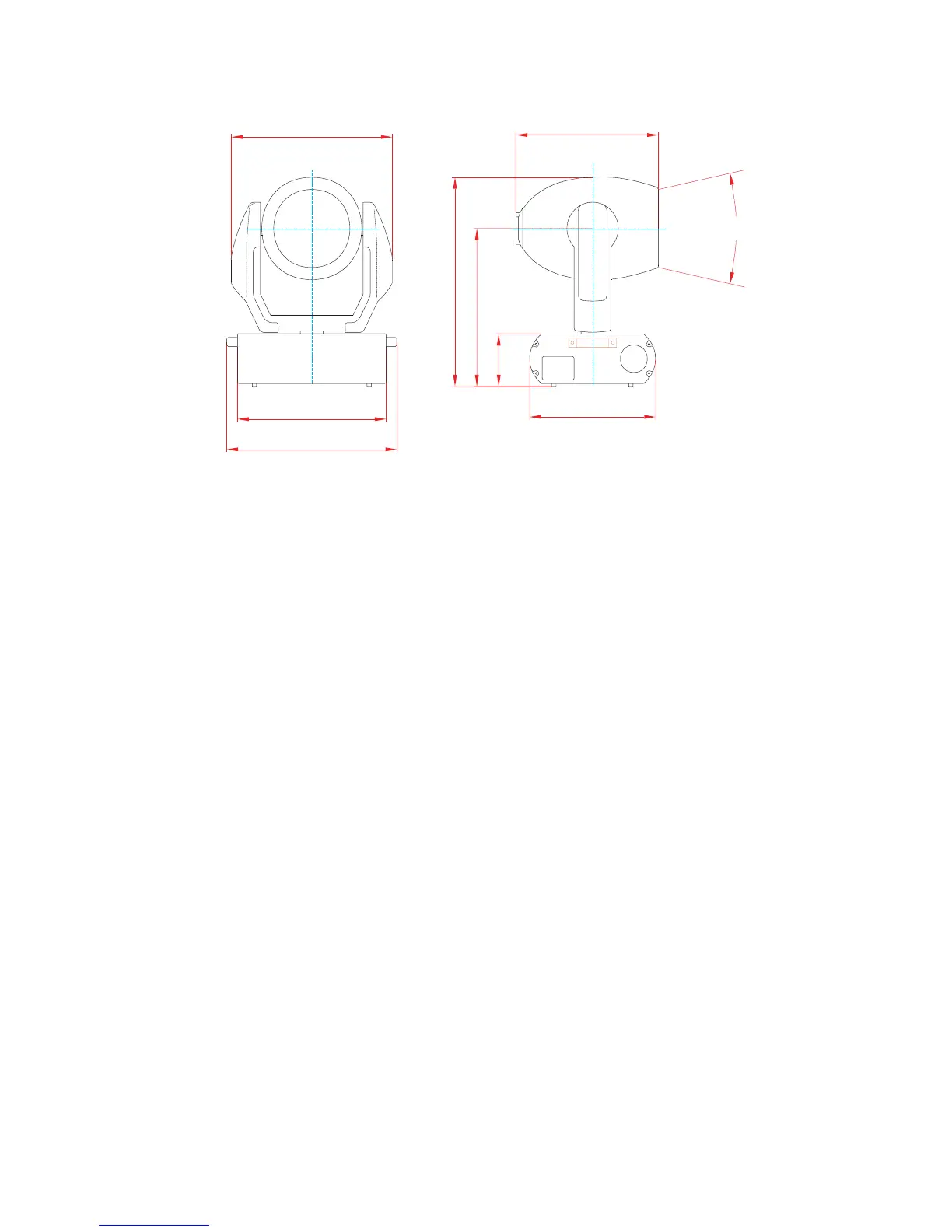

dimensions in millimeters
