24 MAC TW1 user manual
Optical path
Accessing and removing effects components
To gain access to the optical and effects components in
the head for cleaning and service:
1. Disconnect the fixture from power and allow it to cool
for 45 minutes.
2. Turn the 4 retaining screws in the top cover (see
Figure 10) one half-turn counter-clockwise to release
the cover. Covers are a tight fit on the MAC TW1, and
the top cover may require some pressure to remove.
A
B
C
D
E
F
G
H
I
J
A - Lamp
B - Reflector
C - Shield
D - Shutter
E, F, G - CMY flags
H - Condenser lens
I - Zoom lens
J - Front lens

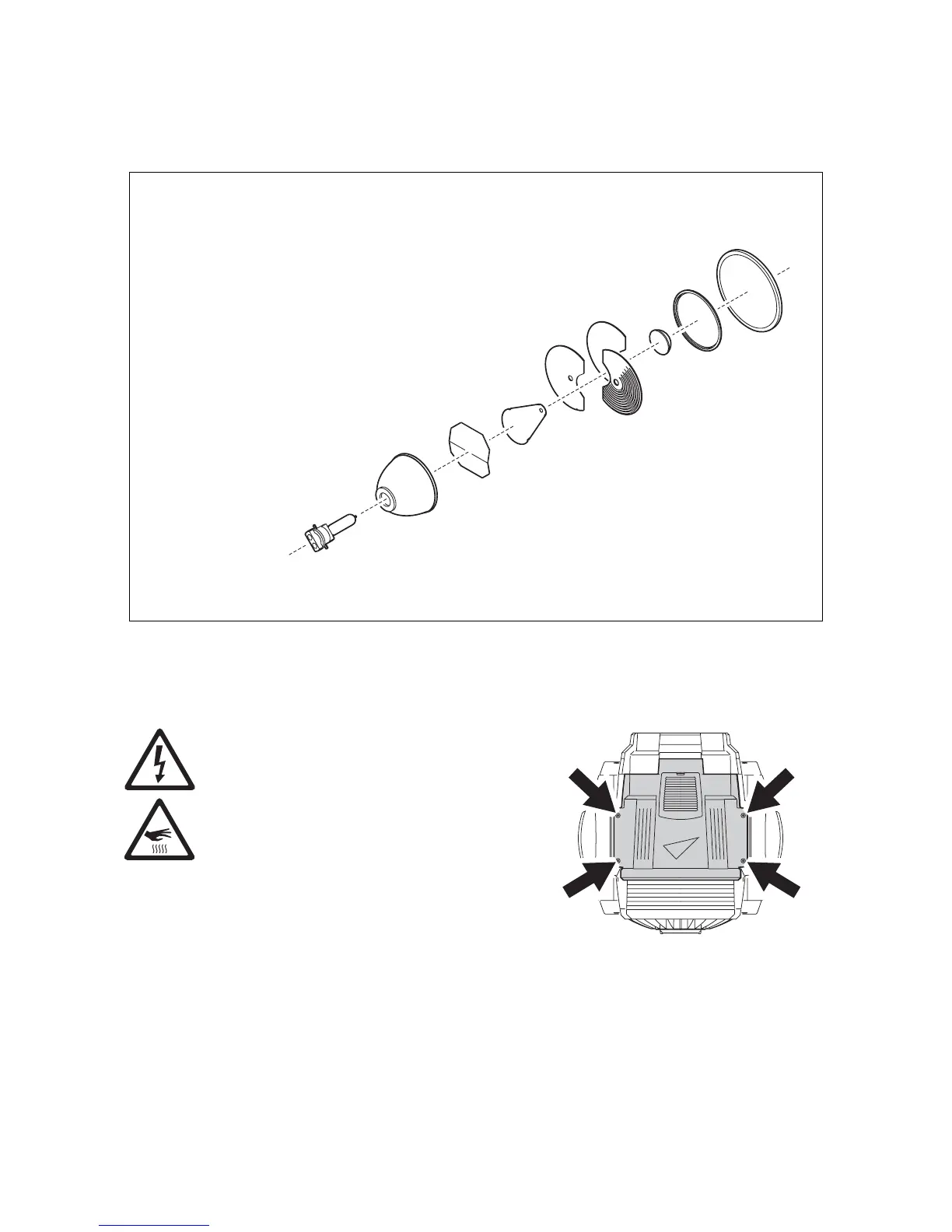

Figure 9: Optical path
Figure 10: Top cover retaining screws
