4.4.2_REFLECTORS

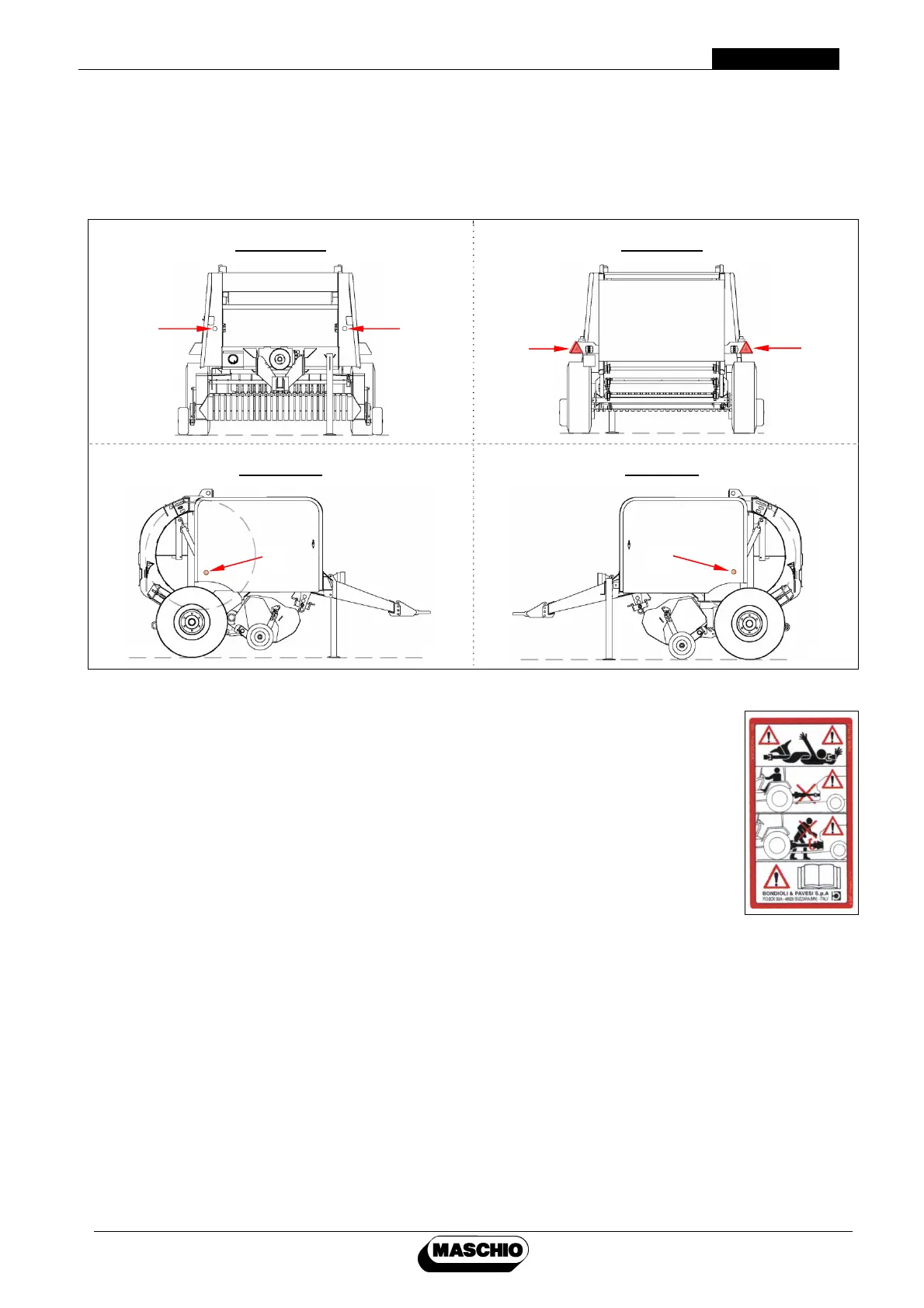

Two types of reflex reflectors are located on the round baler so that it can be seen more clearly during road
transport:
Rb) White round reflectors (front).
Ra) Orange round reflectors (lateral).
RT) Triangular reflectors (rear).
FRONT view
REAR view
RIGHT side
LEFT side
4.4.3_CARDAN SHAFT DECAL
An adhesive sign is affixed to the cardan shaft to draw the operator's attention and remind
him/her of the safety rules for using the cardan shaft.
Rb
Rb
RT RT
Ra
Ra
