USE AND MAINTENANCE
ENGLISH
Cod. F07022163
pag.23

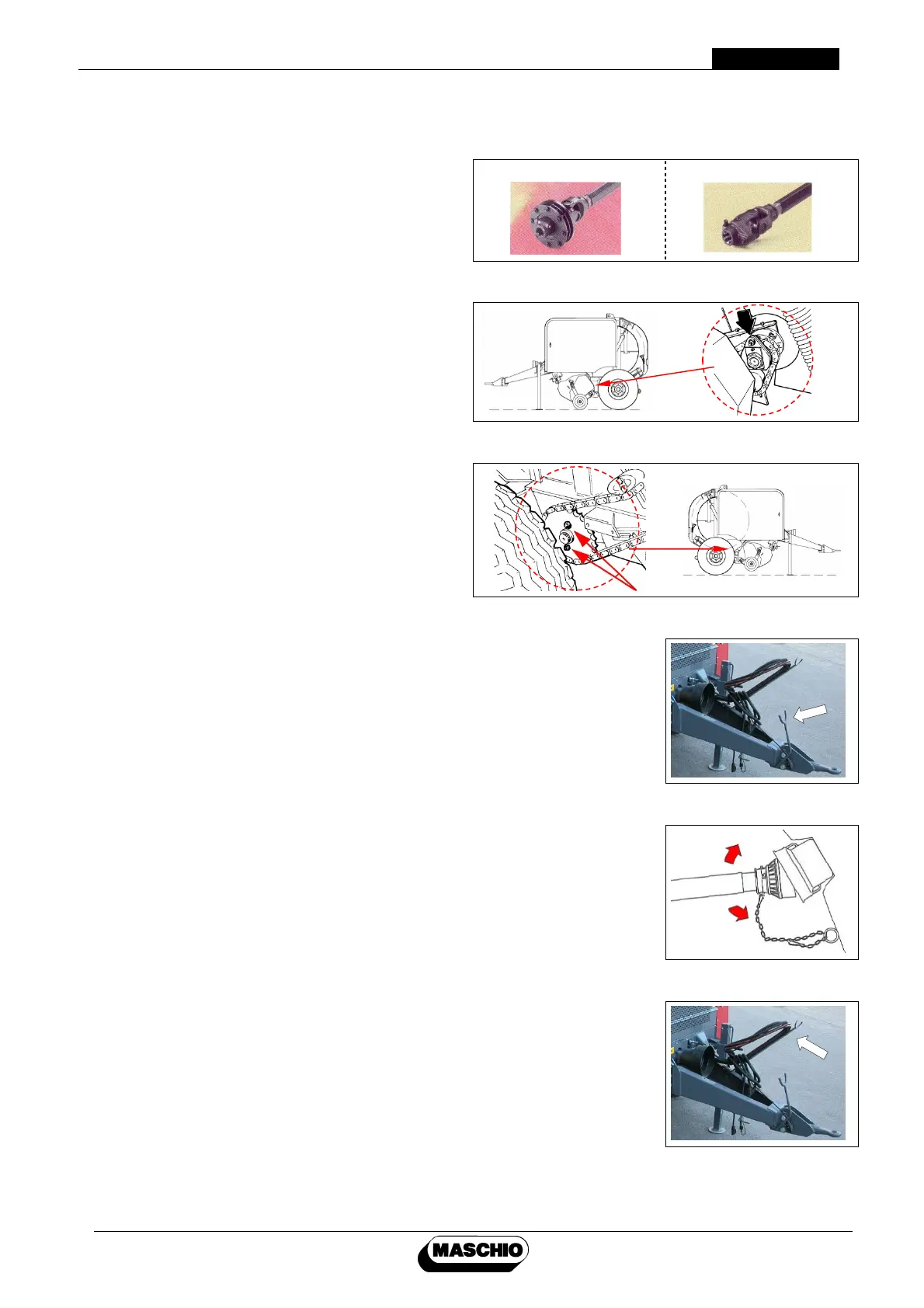

4.5.2_CARDAN SHAFT SAFETY DEVICE
Each cardan shaft is provided with a safety system to protect the mechanical parts from high pickup voltage
torques and maximum twisting moments:
“FV” = with clutch torque limiter.
“SB” = with shear bolt.
FV
SB
4.5.3_PICK-UP TRANSMISSION SAFETY DEVICE
The pick-up transmission is provided with a shear
bolt (safety device) against overloads and foreign
bodies.
4.5.4_FEED DEVICE TRANSMISSION SAFETY DEVICE
On the motion transmission to the feed device there
are fitted two shear bolts against overloads and
foreign bodies.
4.5.5_CARDAN SHAFT SUPPORT
This is for the cardan shaft to rest on when it is not connected to the tractor and
thus to protect it from damage.
4.5.6_CARDAN SHAFT SAFETY CHAIN
This prevents the rotation of the cardan shaft protection guards during work.
Attach it to the drawbar.
4.5.7_SUPPORTS AND CONDUIT GUIDES
These support hydraulic tubes, electrical cables and wiring.
