ENGLISH
USE AND MAINTENANCE
pag.56
Cod. F07022163

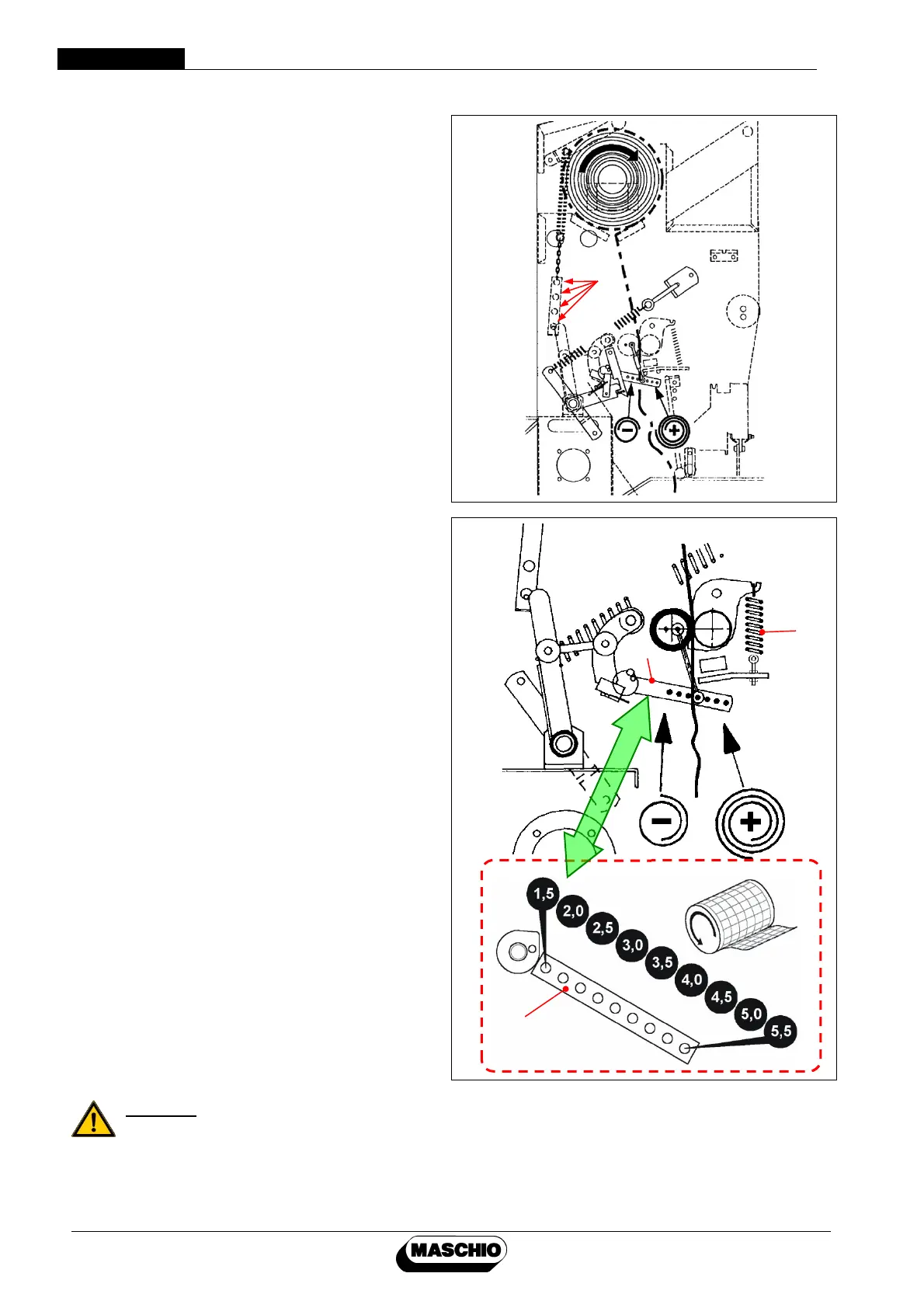

9.6.2_ADJUSTING THE NET WRAPPER
The net roll can be braked to the correct degree by
attaching the spring tensioner "T" of the side springs
in one of the holes provided.
If the spool is braked excessively the draw
rollers are unable to unwind the net.
To adjust the number of net turns with which to wrap
the bale, open the left lateral guard and select the
hole in correspondence with the number of turns you
want to use.
The contact pressure of the draw rollers can also be
regulated with the spring tensioners "M" located at
the side:
If the pressure between the rollers is excessive,
the net will tend to pull toward the centre and the
bale will not be wrapped across its entire width.
If on the contrary the pressure is insufficient the
rollers will not be able to unwind the net.
CAUTION!
Do not start work without the guards in place.
T
C
M
C
