9.14.5_DEVIATION BOX
WARNING! Never do this maintenance work with the baler working:
Stop the tractor, remove the keys from the dashboard and wait for all the
moving parts of the machine to stop completely.
Switch off the control system.
IMPORTANT!
Regularly check the oil level in the transmission box every 1000 bales and every 50 working
hours.
Use the oils advised by MASCHIO FIENAGIONE in chapter “9.13_Lubrication”.
Depending on the type of box mounted on your machine, check the oil level in the transmission box regularly
through the plug located at the back of the box which can be seen from the rear hole of the front cross
member of the machine.
If oil comes out of the box, or if it is at the same level as the hole of the plug this means that the oil
level is correct.

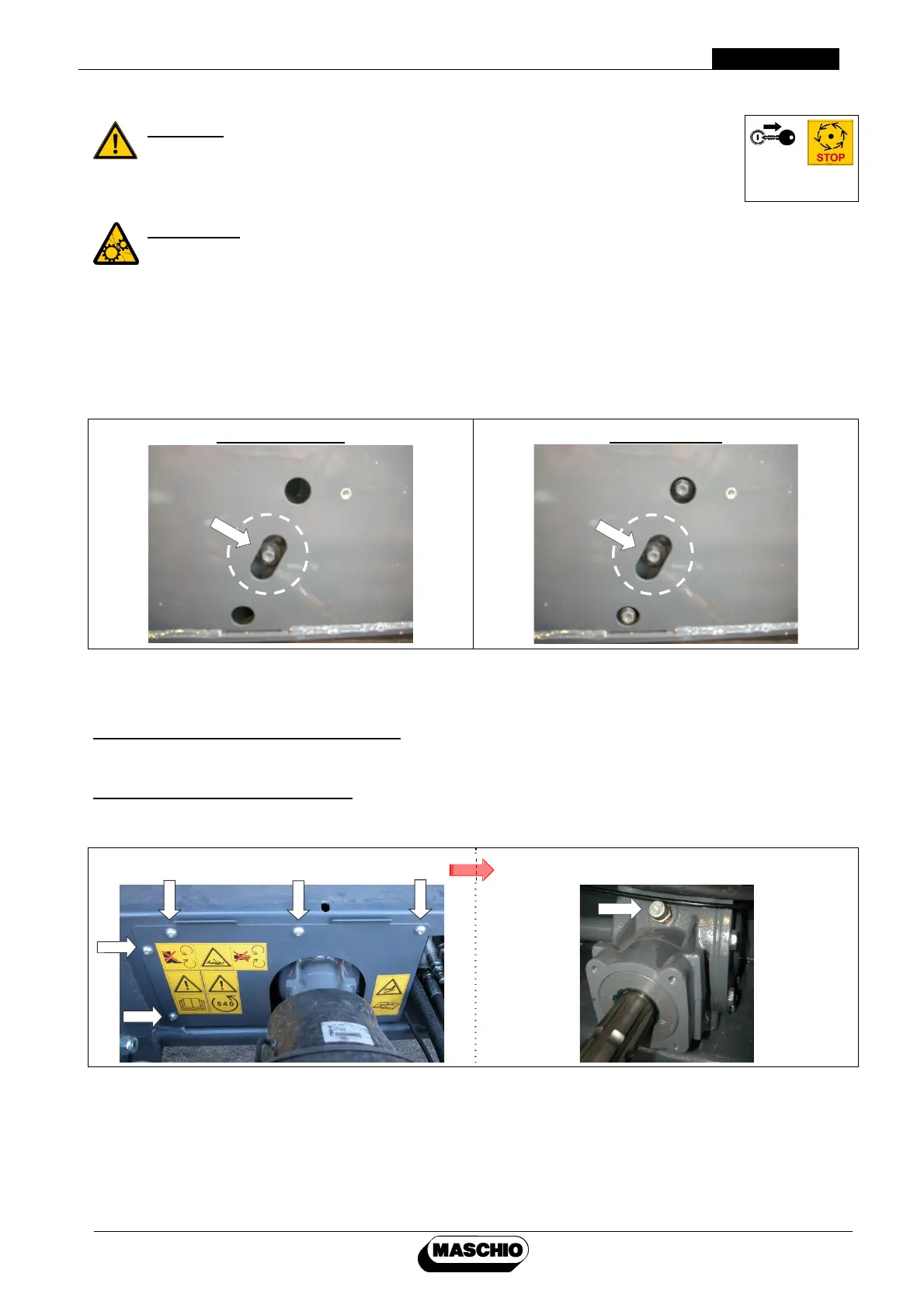

Box type COMER
Box type BYPY
After checking the oil level in the transmission box replace the plug.
If the quantity of oil in the transmission box is insufficient it must be topped up.
THE QUANTITY OF OIL NEEDED IS 1.1 kg
Depending on the type of box mounted on your machine top up the oil in one of the following ways:
1st method (with COMER type box):
1) Unscrew the screws and remove the protective casing of the box,
2) Unscrew and remove the plug located on the top part of the box and top up the oil.
1
2
After topping up the oil level in the box replace the plug.
Replace the guard with the same screws and tighten them.
