Maschio ENTRY 150 - 12_PROBLEMS AND CAUSES; 12.1_POWER FEED

USE AND MAINTENANCE
ENGLISH
Cod. F07022163 pag.75

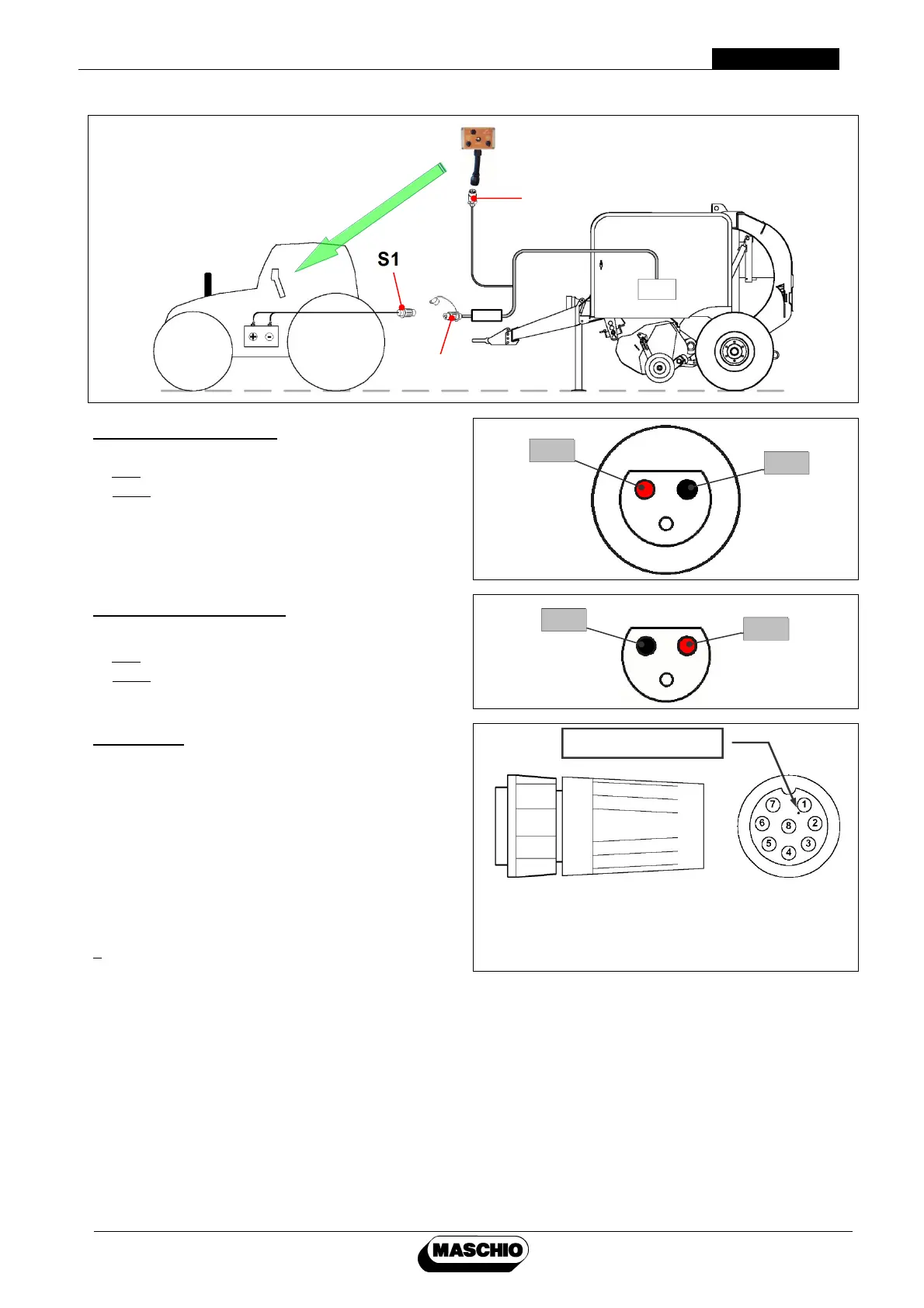

11.7_MATING CONNECTORS
Tractor side feeder cable
“S1” = Female COBO connector (rear view):
+) Red: positive 12V
-) Black: negative
Machine side feeder cable
“C” = Male COBO connector (rear view):
+) Red: positive 12V
-) Black: negative
Signal cable
“CS” = 8 pin connector LTWBD-08BFFA-L180
(front side)
1) Brown
2)
3) Yellow
4) Green
5) White
6)
7) Grey
8)
2
S1
+
-
-
+
PIN 1 Reference
C
CS
FUSE
