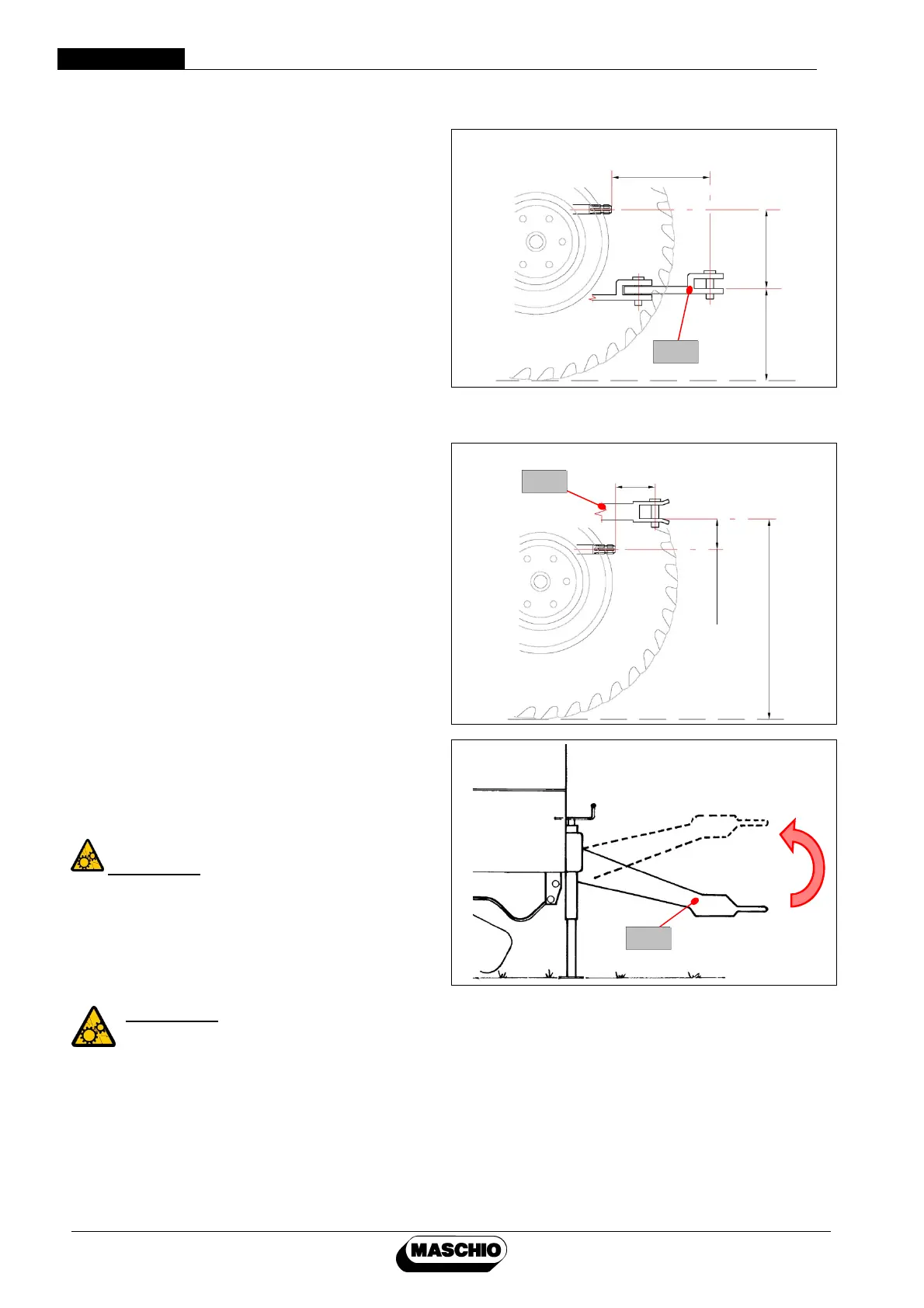

7.3.1_“STANDARD” HOOK
The machines leave MASCHIO FIENAGIONE with
the hook for the tractor in the “STANDARD”
configuration.
If necessary it is permissible to use an extension "P"
for hooking up to your tractor within the limits shown
in the figure.
7.3.2_“HIGH” HOOK
It is also possible to connect the round baler to
tractors having a “HIGH” towing device, within the
limits allowed, as shown in the figure.
In order to do this it is necessary to adapt the
drawbar of the round baler to the hook “A” of the
tractor.
The drawbar “T” of the machine can be adapted to
the tractor only in the vertical direction.
Turned upside down it can be used in the “HIGH”,
hook of the tractor.
IMPORTANT!
Tighten both screws of the drawbar to: 240Nm
(175 lb-ft)
IMPORTANT! It is permitted to use the high hook with a measurement of 800÷1050mm.
160÷290
max. 300
450
P
800÷1050
min. 200
max. 200
A
T
