IS 6.1
- 46
GB
GB
Cod.48745

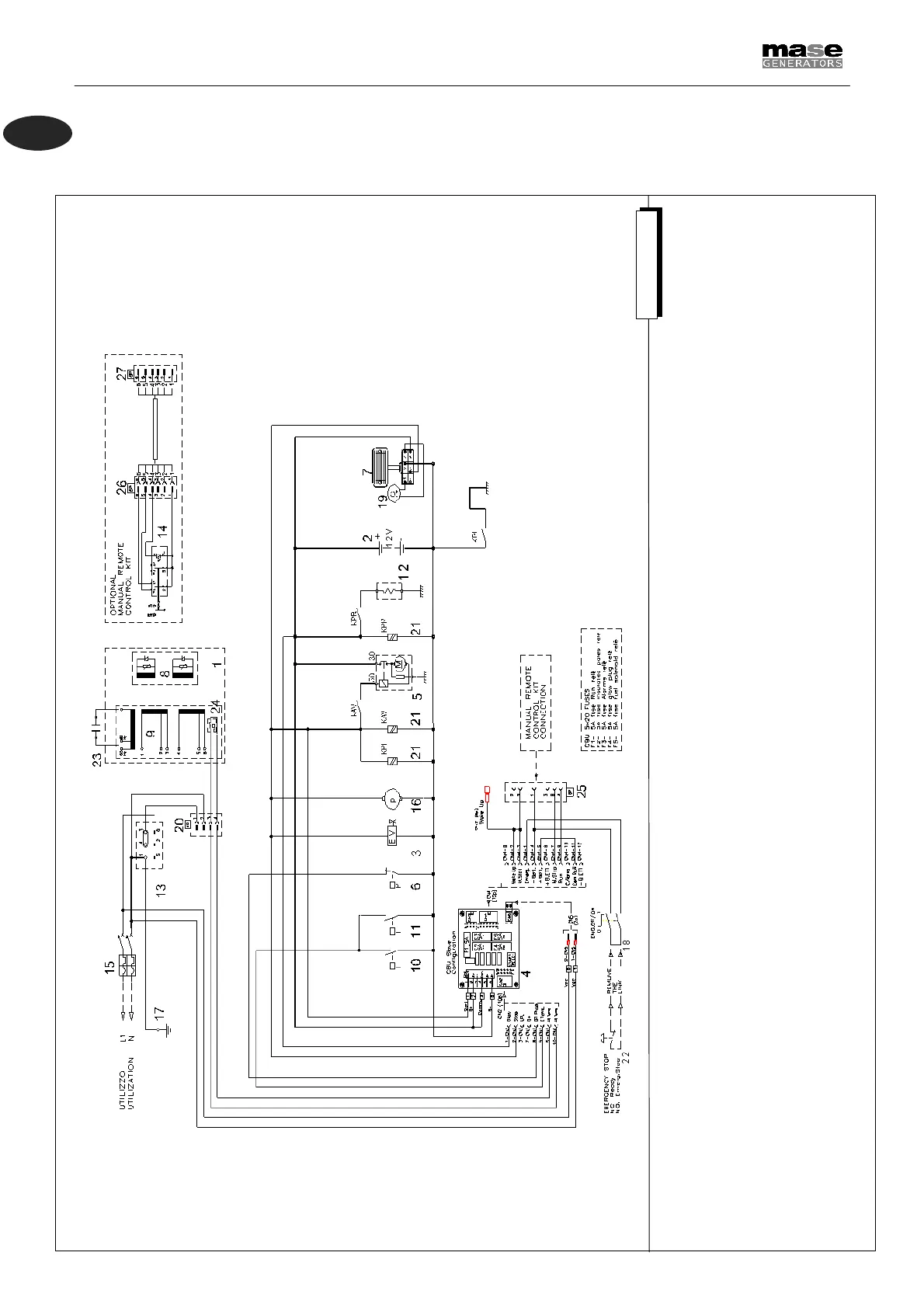

INSULATED POLE VERSION
19 DJNAMO
20 4 POLES CONNECTOR
21 RELAY
22 EMERGENCY PUSHBUTTON
23 CAPACITOR
24 ALTERNATORTHERMOSTAT
25 6 POLES CONNECTOR
26 6 POLES CONNECTOR
27 6 POLES CONNECTOR
10 ENGINE THERMOSTAT
11 ENGINE THERMOSTAT
12 PREHEATING
13 ALTERNATORTERMINAL BOARD
14 START-STOP BUTTON
15 MAGNETOTHERMAL SWITCH 2P
16 FUEL PUMP
17 GROUND CONNECTION
18 0/1 SWITCH
1 ALTERNATOR
2 BATTERY
3 FUEL SOLENOID
4 ENGINE PROTECTIONMODULE
5 STARTER MOTOR
6 OIL PRESSURE SWITCH
7 BATTERY CHARGE REGULATOR
8 ROTOR
9 STATOR
