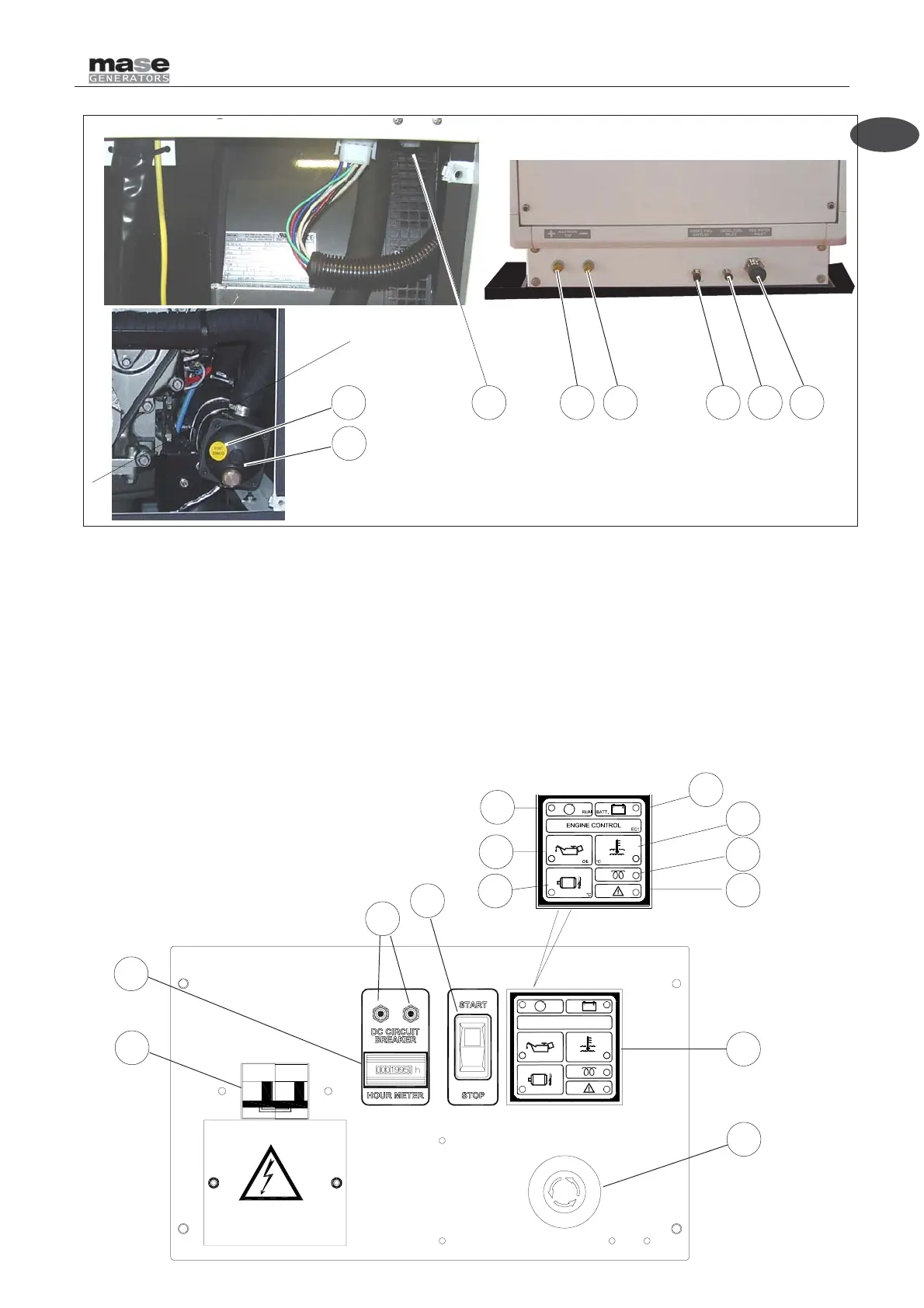

2.2 COMMAND AND CONTROL PANEL (STANDARD VERSION)
Each generator is fitted with an instrument panel for
commands and controls with the following components:
1) Magnetothermal switch
2) Hourcounter
3) Thermal switch DC breaker
4) START/STOP/Preheating switch
5) Engine protection module
6) “°C” Alternator high temperature alarm light
7) “OIL” Low oil pressure alarm light
8) “RUN” Engine on light
9) “BATT” Battery charger light
10)”°C” Engine high temperature alarm light
11)Preheating light (not used)
12)Generic alarm light (not used)
13)Emergency button
