Mase IS 24 - Wiring Diagrams IS 30 T - 34 T

IS 24 - 27 - 25T - 30T - 34T
- 47
GB
GB
Cod.45978
1
A.V.R.
5C 5B 5A 7 6 5 3A 4 3
100Kohm
60HZ
9
1
1
1
10 WIRING DIAGRAM

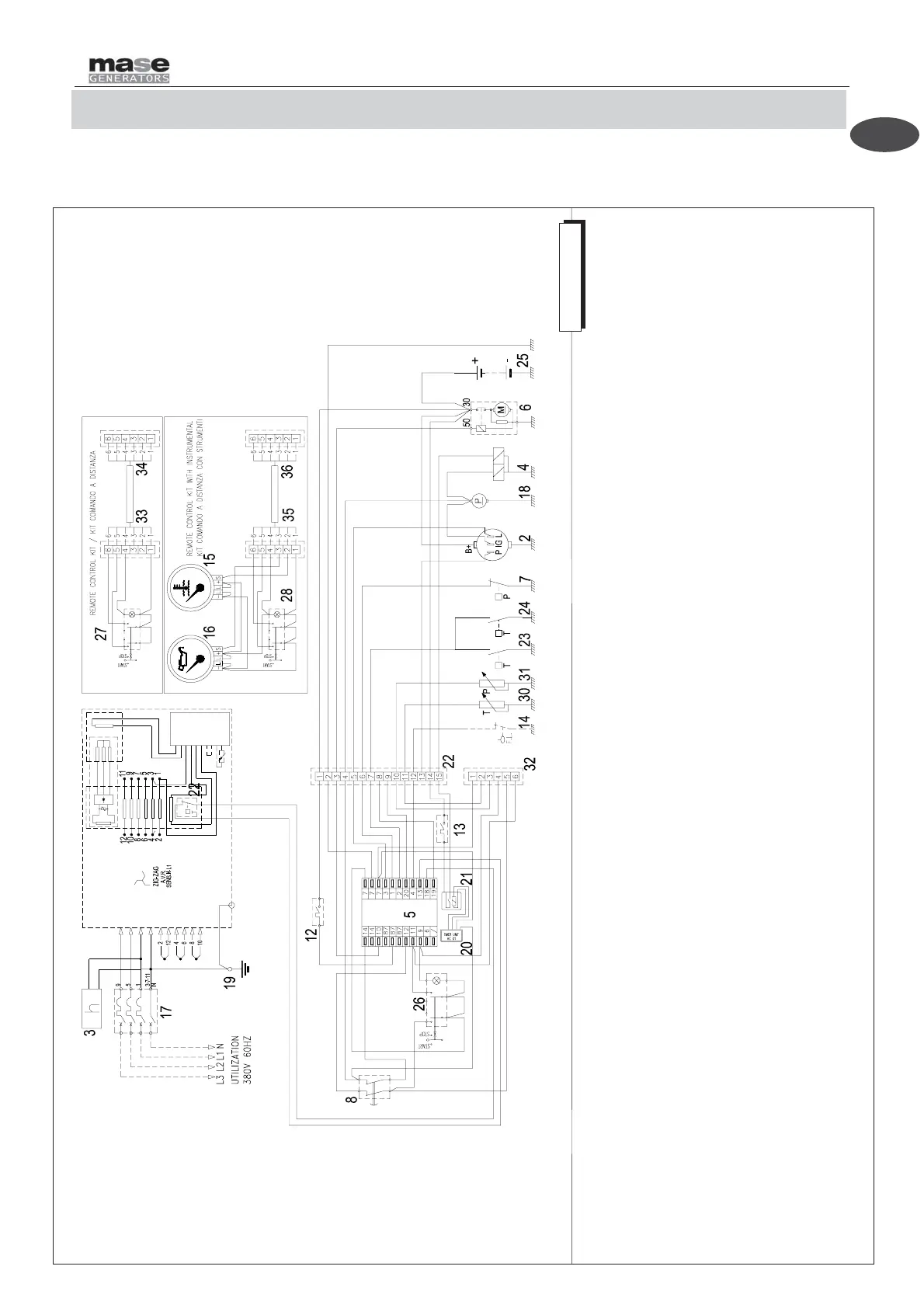

10.3 WIRING DIAGRAM IS 30T - 34T
15 TEMPERATURE GAUGE INSTRUMENT 16 OIL PRESSURE GAUGE INSTRUMENT 17 MAGNETOTHERMAL SWITCH 2P 18 FUEL PUMP 19 GROUND CONNECTION 20 TIMER UNIT 21 RELE’ 22 15 POLES CONNECTOR 23 ENGINE THERMOSTAT 24 ENGINE THERMOSTAT 25 BATTERY 26 START-STOP BUTTON 27 START-STOP BUTTON
1 ALTERNATOR 2 BATTERY CHARGER ALTERNATOR 3 HOUR COUNTER 4 STOP ELECTROMAGNET 5 ENGINE PROTECTION MODULE 6 STARTER MOTOR 7 OIL PRESSURE SWITCH 8 EMERGENCY STOP BUTTON 9 ELECTRONIC VOLTAGE REGULATOR 10 ROTOR 11 STATOR 12 THERMAL SWITCH 13 THERMAL SWITCH 14 FUEL LEAKAGE FLOAT
28 START-STOP BUTTON 29 ALTERNATOR THERMOSTAT 30 TEMPERATURE SENSOR 31 OIL PRESSURE SENSOR 32 6 POLES CONNECTOR 33 6 POLES CONNECTOR 34 6 POLES CONNECTOR 35 6 POLES CONNECTOR 36 6 POLES CONNECTOR
