Mase IS 24 - Wiring Diagrams; Wiring Diagrams IS 24 - 27

IS 24 - 27 - 25T - 30T - 34T
- 45
GB
GB
Cod.45862
60HZ
5A
5B 5C 7
A.V.R.
3 3A 4A 4 6 5 2 1

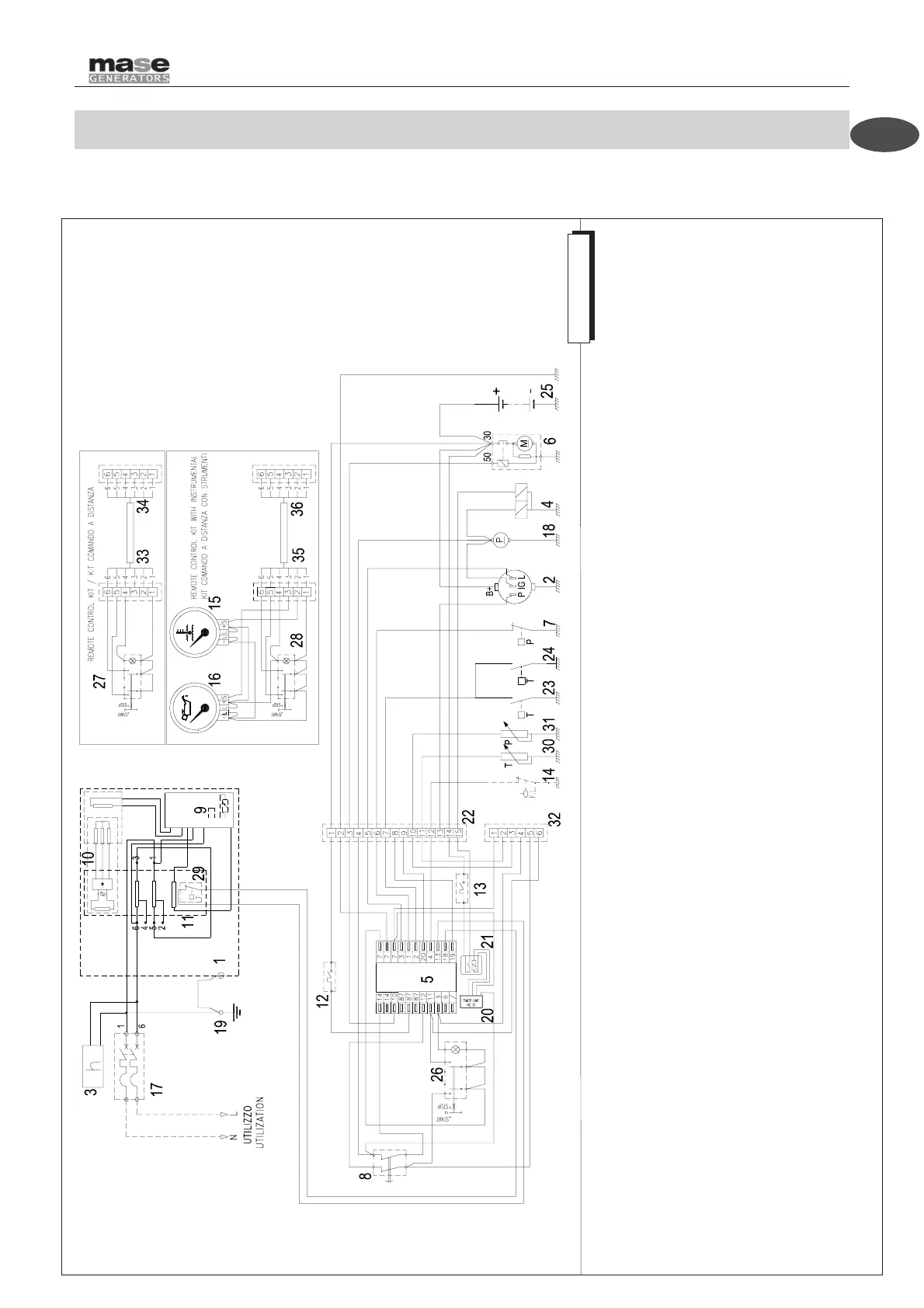

10 WIRING DIAGRAM
14 FUEL LEAKAGE FLOAT 15 TEMPERATURE GAUGE INSTRUMENT 16 OIL PRESSURE GAUGE INSTRUMENT 17 MAGNETOTHERMAL SWITCH 2P 18 FUEL PUMP 19 EARTH CONNECTION 20 TIMER UNIT 21 RELE' 22 15 POLES CONNECTOR 23 ENGINE THERMOSTAT 24 ENGINE THERMOSTAT 25 BATTERY
1 ALTERNATOR 2 BATTERY CHARGER ALTERNATOR 3 HOUR COUNTER 4 STOP ELECTROMAGNET 5 ENGINE PROTECTION MODULE 6 STARTER MOTOR 7 OIL PRESSURE SWITCH 8 EMERGENCY STOP BUTTON 9 ELECTRONIC VOLTAGE REGULATOR 10 ROTOR 11 STATOR 12 THERMAL SWITCH 13 THERMAL SWITCH
26 START-STOP BUTTON 27 START-STOP BUTTON 28 START-STOP BUTTON 29 ALTERNATOR THERMOSTAT 30 TEMPERATURE SENSOR 31 OIL PRESSURE SENSOR 32 6 POLES CONNECTOR 33 6 POLES CONNECTOR 34 6 POLES CONNECTOR 35 6 POLES CONNECTOR 36 6 POLES CONNECTOR
10.1 WIRING DIAGRAM IS 24 - 27
