Mase IS 24 - Wiring Diagrams IS 25 T

IS 24 - 27 - 25T - 30T - 34T
- 46
GB
GB
Cod.45984
1
A.V.R.
5C 5B 5A 7 6 5 3A 4 3
100Kohm
60HZ
9

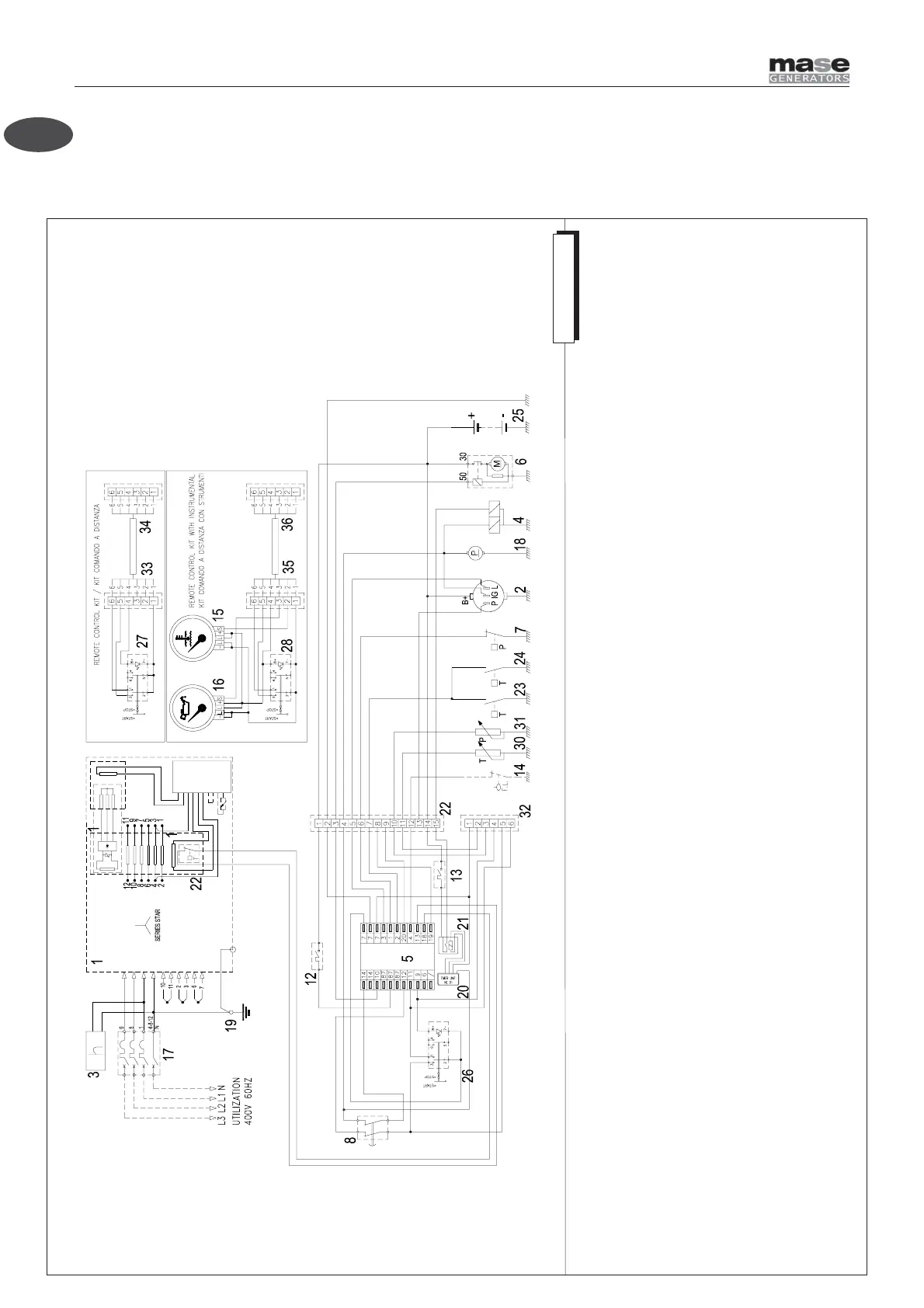

10.2 WIRING DIAGRAM IS 25T
15TEMPERATURE GAUGE INSTRUMENT 16OIL PRESSURE GAUGE INSTRUMENT 17MAGNETOTHERMAL SWITCH 2P 18FUEL PUMP 19GROUND CONNECTION 20TIMER UNIT 21RELE’ 2215 POLES CONNECTOR 23ENGINE THERMOSTAT 24ENGINE THERMOSTAT 25BATTERY 26START-STOP BUTTON 27START-STOP BUTTON
1 ALTERNATOR 2 BATTERY CHARGER ALTERNATOR 3 HOUR COUNTER 4 STOP ELECTROMAGNET 5 ENGINE PROTECTION MODULE 6 STARTER MOTOR 7 OIL PRESSURE SWITCH 8 EMERGENCY STOP BUTTON 9 ELECTRONIC VOLTAGE REGULATOR 10ROTOR 11 STATOR 12THERMAL SWITCH 13THERMAL SWITCH 14FUEL LEAKAGE FLOAT
28START-STOP BUTTON 29ALTERNATOR THERMOSTAT 30TEMPERATURE SENSOR 31OIL PRESSURE SENSOR 326 POLES CONNECTOR 336 POLES CONNECTOR 346 POLES CONNECTOR 356 POLES CONNECTOR 366 POLES CONNECTOR
