Masimo Rad-G Quick Start Guide

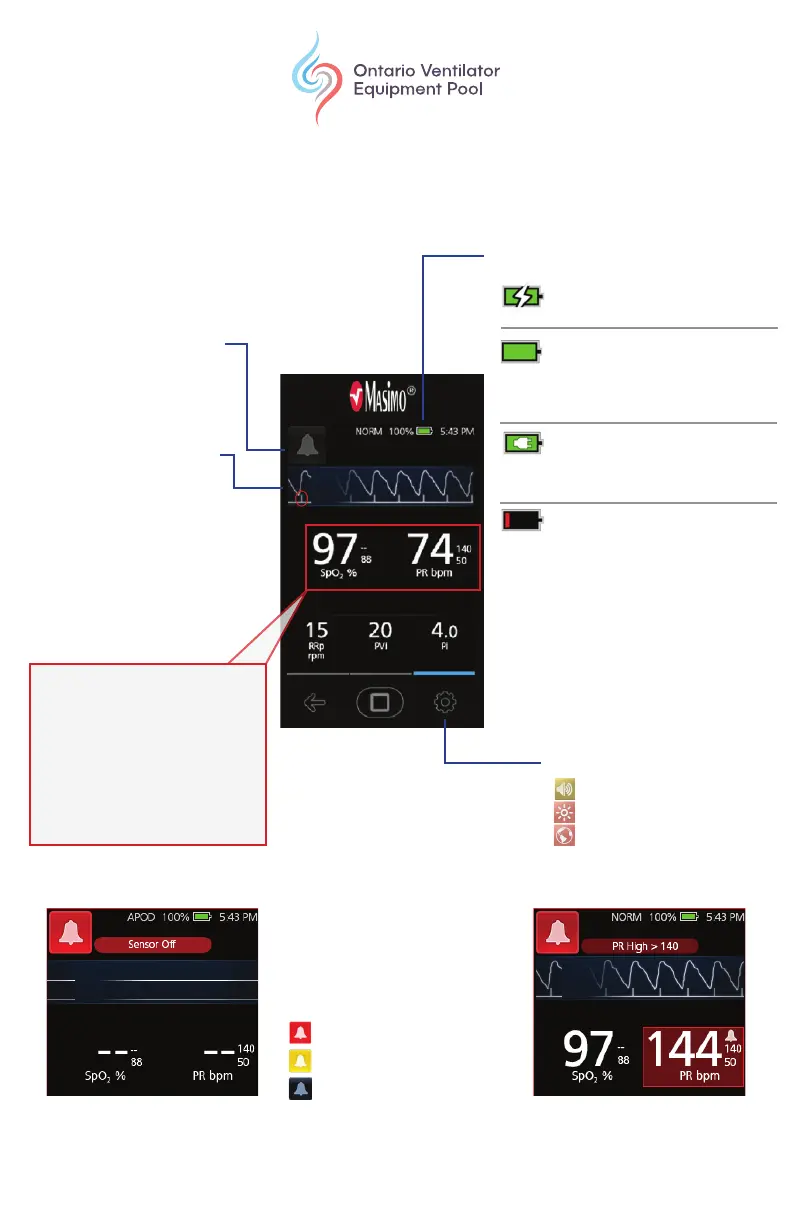

Active Alarms:
Alarm bell illuminates and
alarm message appears at
top of screen. The parameter
box will also illuminate red.
High Priority Alarm
Medium Priority Alarm
No Active Alarms
Operation
1
Battery Indicator (24hrs of use):
Alarm
Acknowledgement:
Displays active alarms
and allows silencing of
active alarms.
Waveform:
Displays continuous
pleth waveform and
signal condence.
Height of vertical bars
provides an assessment
of the condence in the
SpO
2
value displayed.
Device connected to AC
power and charging.
Device unplugged from AC
power; Battery % beside
icon provides current
charge level.
Device connected to AC
power and battery fully
charged.
Battery charge reaches a low
level:
- Icon will change colour
(red)
- A 'Low Battery' message
appears.
Connect device to AC power
to prevent the device from
powering o and to charge
battery.
Parameter Display:
Displays the current
measured value for
Oxygen SpO
2
% and Pulse
Rate PR. Alarm settings
displayed to the right of
the measured value.
Adjust brightness
Adjust alarm volume
Set date and time
Main Menu:
Masimo® Rad-G® Quick Start Guide
©2024 Ontario Ventilator Equipment Pool. All rights reserved.
Date of Issue: 2022-10-19. Rev. 2024-02-13.

Masimo Rad-G Specifications

General

Type	Handheld Pulse Oximeter
Ingress Protection	IP22
Operating Temperature	5°C to 40°C
Storage Temperature	-20°C to 60°C
SpO2 Range	0% to 100%
Pulse Rate Range	25 – 240 bpm
Battery Type	Rechargeable Lithium-ion
Connectivity	Bluetooth
Perfusion Index Range	0.02% to 20%
PVI Range	0% - 100%
Humidity	10% to 95% (non-condensing)
