• No time adjustment can be made to greater than 10 minutes.
• No time adjustment can be made after 10 minutes of the session elapses.

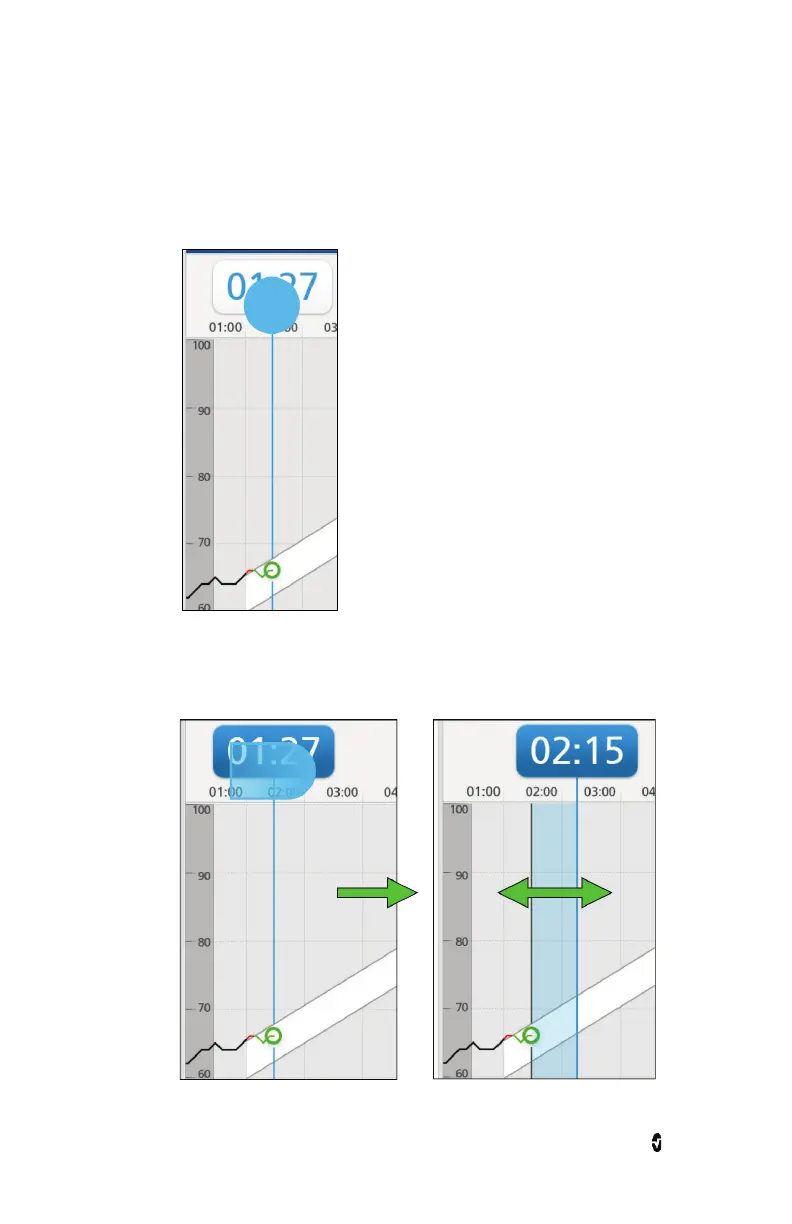

To adjust the time during Pathway operation, perform the following:
1. Press and hold the Time Scrub Button to activate the time adjustment.
2. The Time Scrub Button is blue when adjustment can be made. Drag the Time Scrub
Button left or right on the screen to the desired location. As the Time Scrub Button
is moved, the time adjusts in relation to the new location. Release the Time Scrub
Button at the new time.

Masimo Root Specifications

General

Category	Medical Equipment
Display	10.1 inch touchscreen
Connectivity	WiFi, Bluetooth
Power Supply	AC power
Dimensions	26.8 cm x 22.4 cm x 5.1 cm
Ports	USB, Ethernet
Supported Parameters	SpO2, Pulse Rate
Compatibility	Masimo sensors
Model	Root
