MASTER KITCHEN Prime Series - Electrical Connection and Grounding

EN-9
Istruzioni di montaggio:

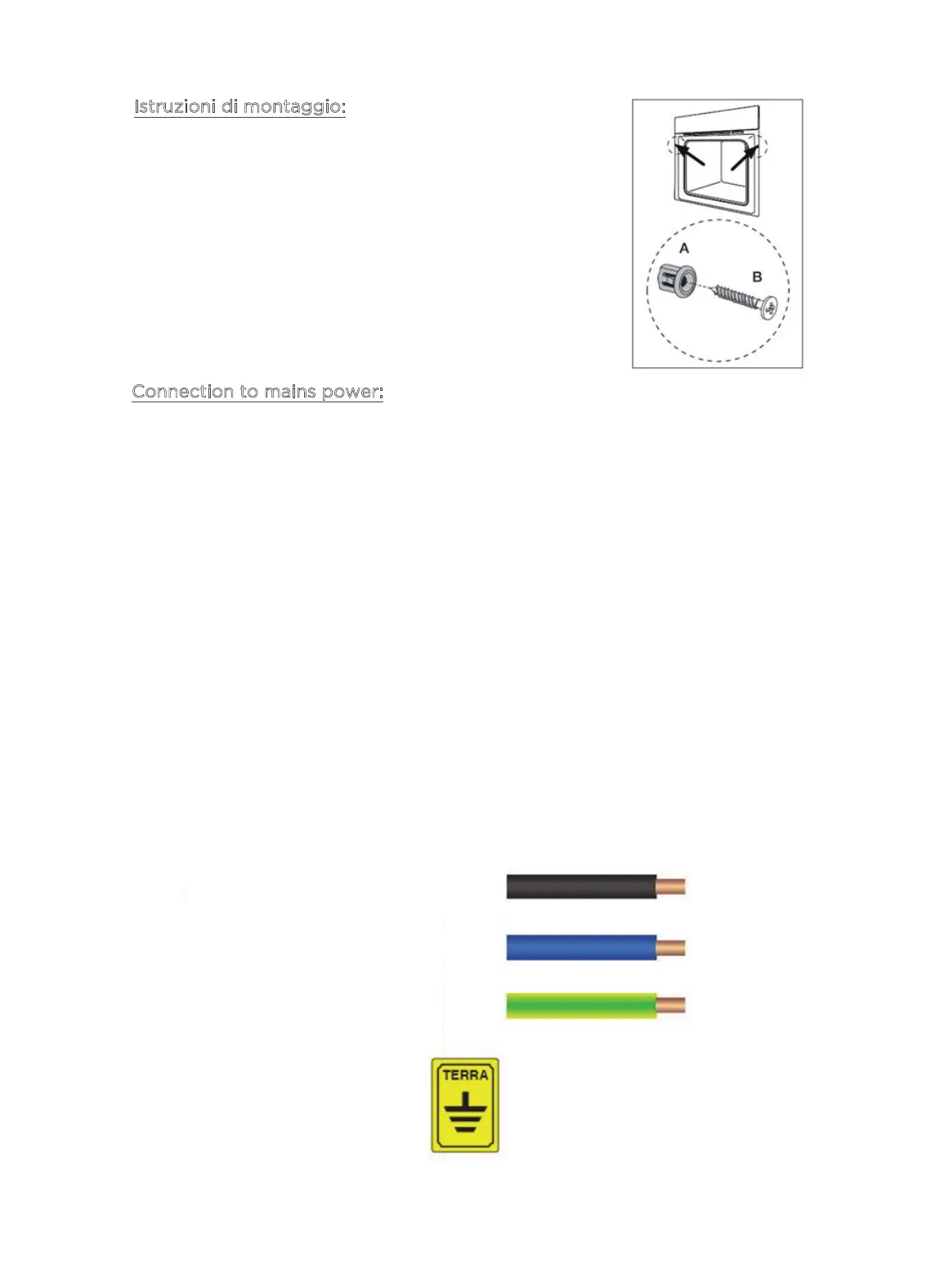

1) Place the equipment in its slot
2) Open the oven door
3) Fix oven to furniture, inserting the included spacers (A)
and screws (B) in the corresponding holes on the oven
sides.
4) Hide screws with the dedicated covers
ATTENTION: screws (B) fixing the oven to furniture must
be placed properly, without tightening them too much to
prevent damages to spacers (A).
Connection to mains power:
•
The oven is provided with a three-wired power cable and free terminals.
•
If the oven is permanently connected to power supply, provide it with a
disconnection switch and a suitable opening contact distance (at least 3 mm) to
allow full disconnection of the equipment under the conditions listed in Overvoltage
Category III.
Accertarsi che:
1. Use plug and outlet rated for 16 Ampere currents
2. Plug and outlet must be easily accessible and placed in such a way that no live parts
may be reached while inserting or removing the plug.
3. The plug must be easily inserted.
4. The oven shall not touch the inserted plug, when it is installed in furniture.
5. Do not connect the terminals of two different equipments to the same plug.
6. If needed, the power cable shall be replaced with one of 3 x 1,5 mm2 (H05VV-F or
H05RR-F type)
7. When plugging the equipment, check the correct polarity of free terminals
(Brown = Phase; Blue = Neutral; Yellow-green = Ground)
N.B. Make sure that the household electric line (voltage, maximum power and current)
matches the values specified for your oven.
GROUNDING
•
The installation must be provided with a
grounding wire, usually marked by a protective
sleeve of yellow-green color.
•
All household appliances must be grounded.
•
This wire must be connected to a remote
earth system (usually deeply buried rods),
which allows to discharge the current possibly
accumulated on the surface of the involved
equipments.
PHASE
NEUTRAL
GROUND
