MASTER KITCHEN Prime Series - Oven Installation and Power Connection; Installation Dimensions and Furniture

EN-8
INSTALLATION AND GENERAL DIMENSIONS
min. 560
min. 560
min. 560
MODELS:
- MKO 802 PR MS XS
- MKO 902 PR M XS
- MKO 902 PR M BK
- MKO 902 PR M WH
- MKO 906 PR M XS
- MKO 1006 PR M P XS
MODELS:
- MKO 82/12 M BK
- MKO 802/12 PR MS XS
- MKO 802/12 PR MS BK
CUT ON THE REAR SIDE OF FURNITURE (both for
top and column installations)
min. 560
To grant the secure operation of this appliance, please check that its installation
is compliant to the instructions. Any damages due to improper installation are not
covered by the warranty.
During installation, wear protective gloves to prevent cutting your hands due to sharp
edges.
WARNING, the oven shall not be installed behind a decorative panel to prevent
equipment overheating.
Do not install and operate the equipment if it is damaged.
Before powering on the equipment, please remove form it all packaging materials and
any protective adhesive film.

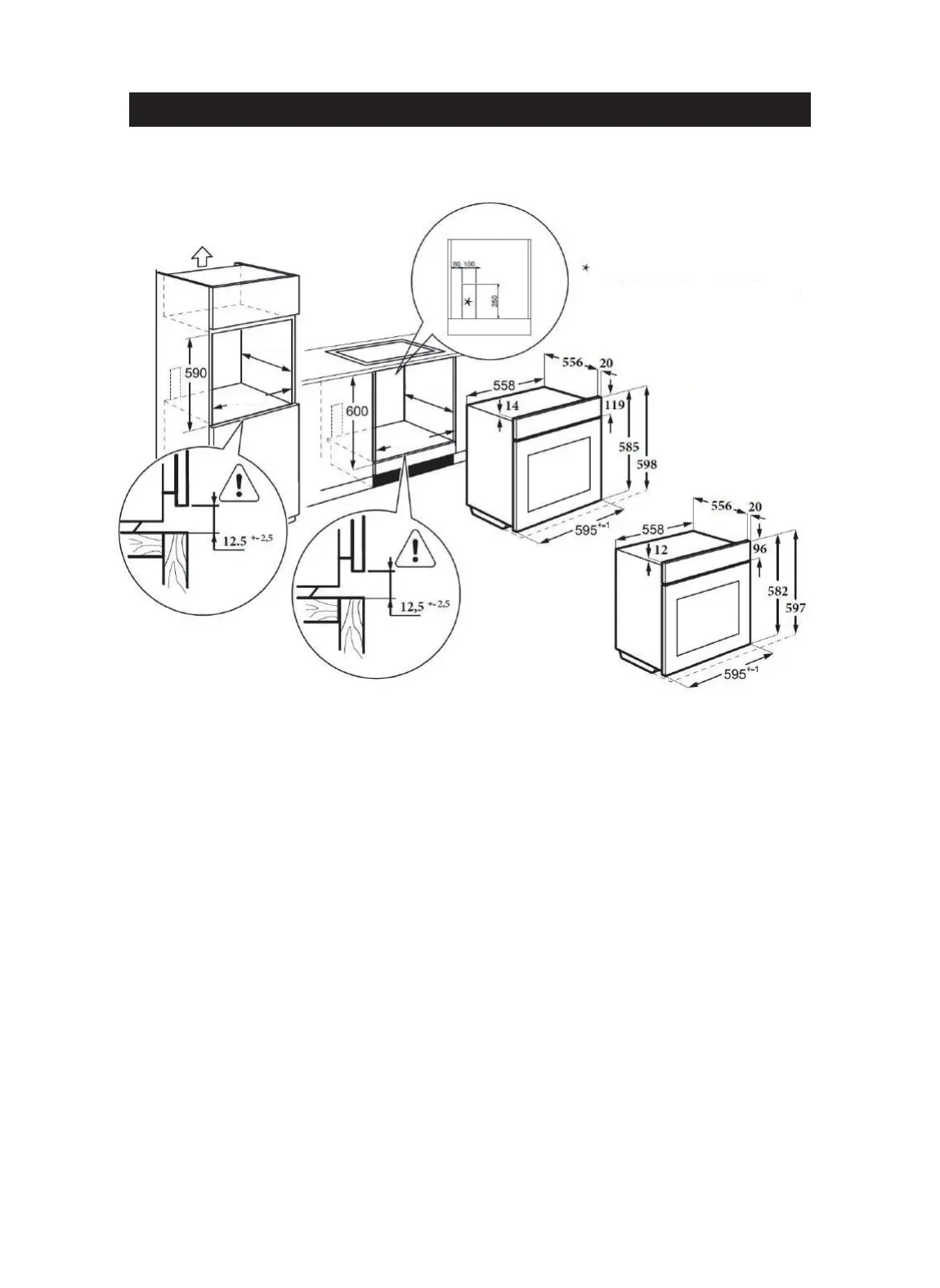

Sizes stated in the above picture are expressed in mm.
FEATURES OF INSTALLATION FURNITURE: The components of built-under furniture
(plastic or veneered wood materials) must use heat-resistant glue materials (at least
100°C). Using unsuitable materials and glues may cause damages and deformation.
Mounting furniture must allow the proper laying of electric cables and be robust
enough to bear the equipment weight.
The oven must be safely mounted in the dedicated slot, and can be fitted inside a
column or under the top of modular furniture, allowing the needed ventilation.
