EN-27
POWER CABLE REPLACEMENT
Instructions for correct cable replacement:
a) After unplugging the plug from the socket, use a small flat screwdriver to open the
terminal block in steps 1 and 2.
b) Use the star screwdriver to remove the screws 3, 4, 5 and 6.
c) Replace the power cord with the new one and secure the yellow/green wire in point
3, the brown wire in point 4 and the blue wire in point 5.
d) To complete the operation tighten the screw of point 6 and close the terminal
block.

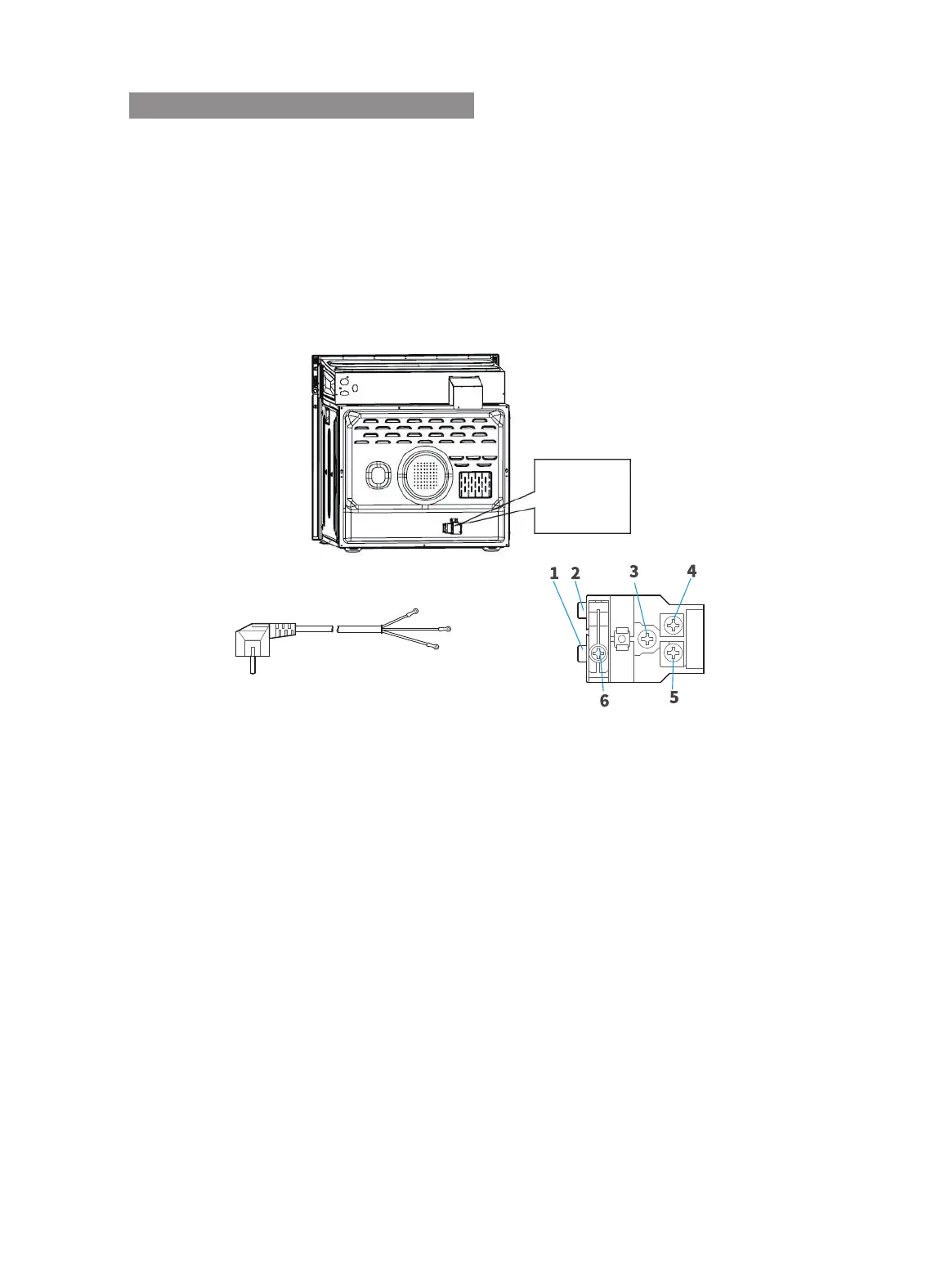

Terminal
block
position
Brown {L}
Power cable
Terminal block
Yellow/Green
Blue {N}
Caution, risk of electric shock!
Improper servicing could be dangerous. Repairs can be made and damaged cables
replaced only by specialist service technicians. If the appliance is faulty, remove the
cord from the power outlet or disconnect the jump switch from the meter. Contact
customer support.
Attention!
The oven could be supplied with cord without plug (for the characteristics of the plug
and the electrical connection see the appropriate section).
