EN-25
After thoroughly cleaning the glasses with hot water and a soft cloth, dry them
thoroughly and reassemble them following the reverse procedure.
Caution, when mounting the double glass (internal glass) make sure that the locking
pins positioned at the bottom insert and fit correctly in the relative brackets fixed to
the oven door uprights.
At this point it is possible to reassemble the door of the appliance following the
instructions described in the previous paragraph.
For MODELS: MKO 802-PR MS XS; MKO 902-PR MS XS; MKO 902-PR M BK;
MKO 902-PR M WH; MKO 906-PR M XS; MKO 1006-PR M P XS

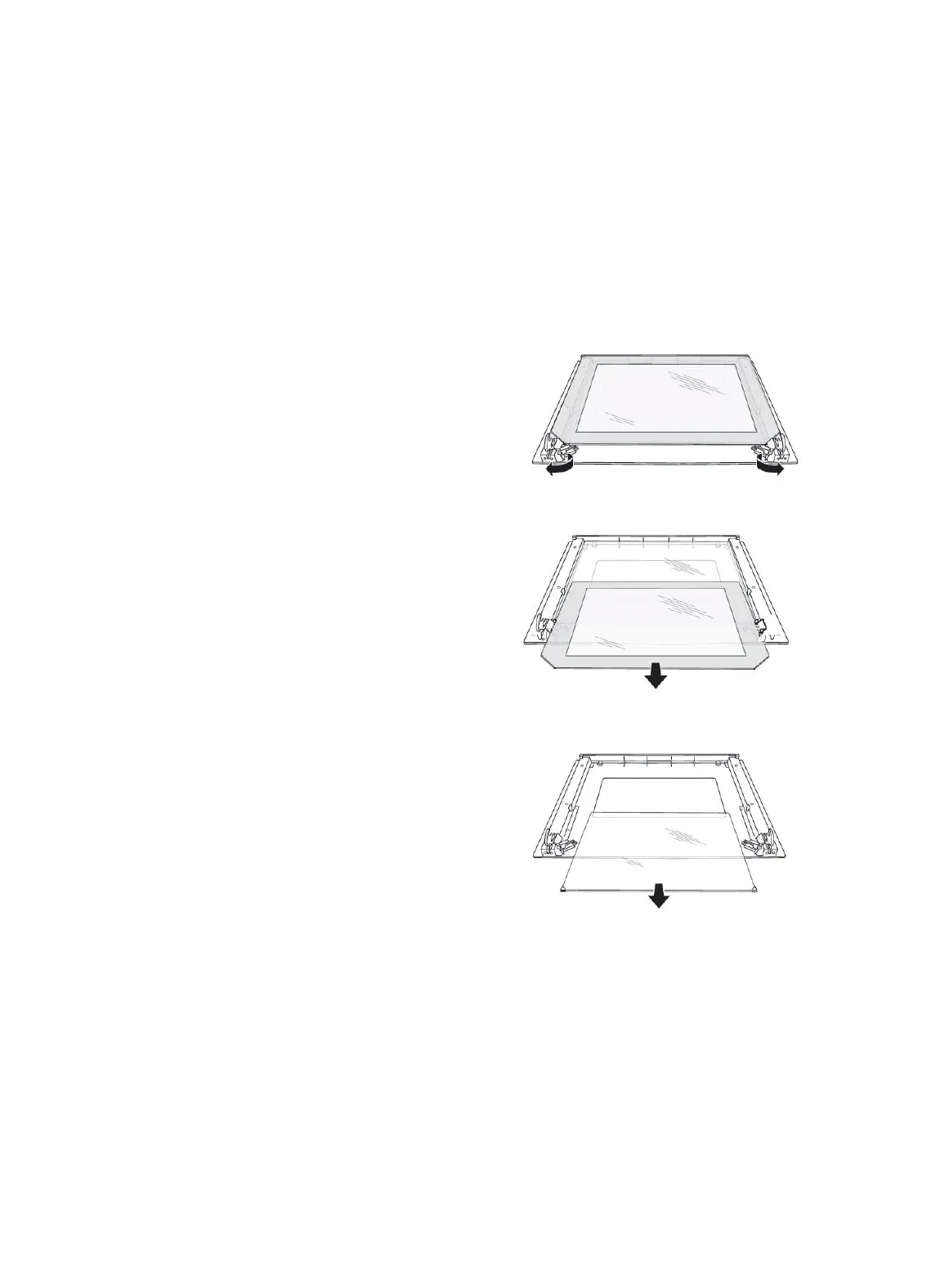

1. Rotate the two black block stops
positioned at the bottom of the oven door
as shown in Figure 1
Figure 1
2. Lift the inner glass panel (double glass)
at the bottom and carefully push it in the
direction of the arrow as shown in Figure
2 and remove it completely from the oven
door.
Figure 2
3. At this point, it is possible to remove the
intermediate glass (or third glass), first
lift it in the lower part (taking care not to
lose the rubbers mounted in the two lower
corners) and then carefully remove it in the
direction of the arrow (Figure 3)
Figure 3
After thoroughly cleaning the glasses with hot water and a soft cloth, dry them
thoroughly and reassemble them following the reverse procedure.
At this point it is possible to reassemble the door of the appliance following the
instructions described in the previous paragraph.
