Page 3-44 2014 MasterCraft Owners Manual • Gauges & Video Screens
G A U G E S & V I D E O S C R E E N S

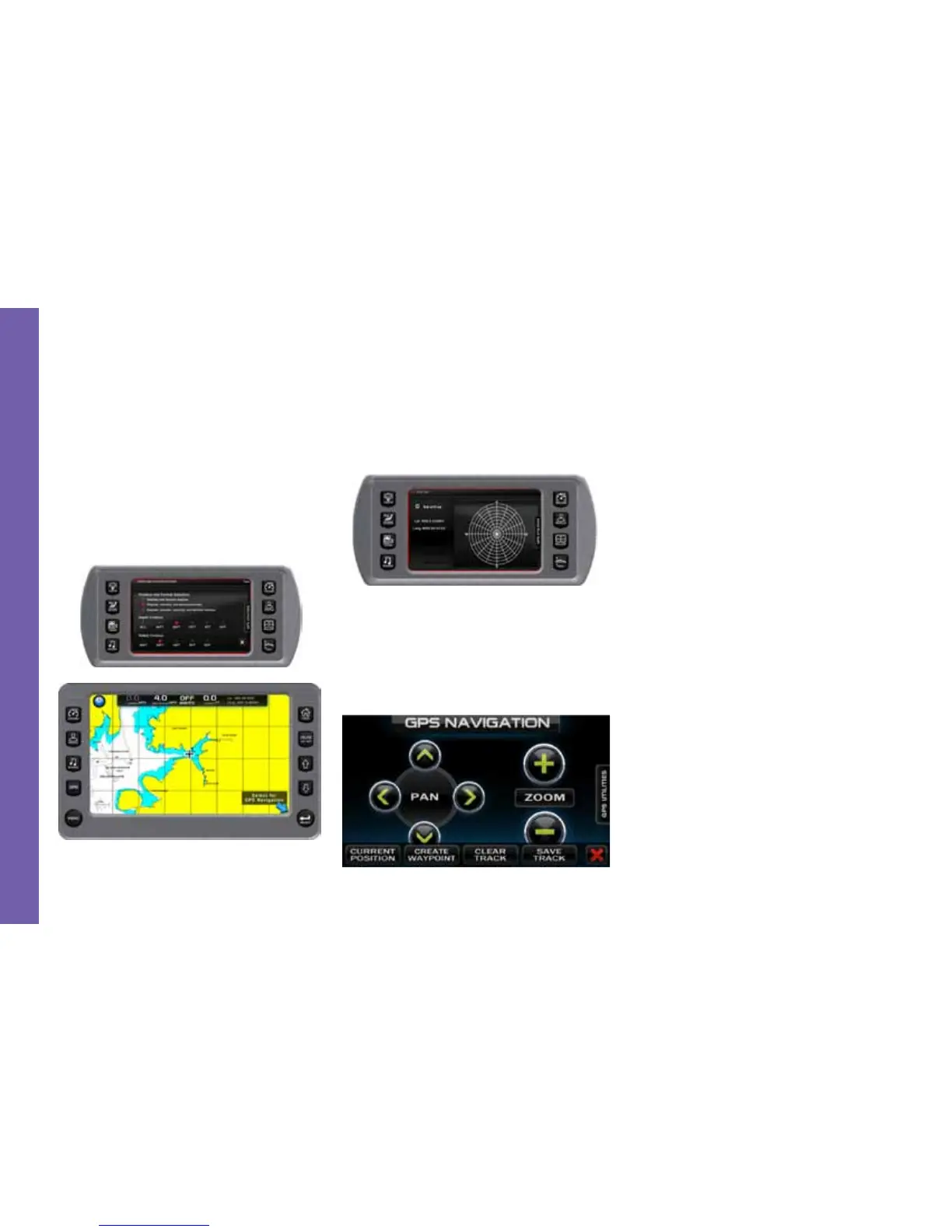

Depth and Position Set-up
Use the Depth and Position Set-up on
the 4.5” touch screen and the results can be
immediately seen on the map displayed on
the 7” touch screen. For example, modify
the Depth Contour or the Safety Contour,
the contours are immediately shown on the
7” touch screen. The Depth and Position
Set-up screen can be closed by touching
[X].
GPS Status
The GPS Status screen on the 4.5” touch
screen is identical to the GPS Status screen
on the 7” touch screen. It shows the status
of detectable satellites and their locations.
Track Menu
Touch menu to:
• Find the current position on the map;
• Create waypoints;
• Clear track;
• Save track.
CURRENT POSITION—The position
of the boat. A track beings recording from
the current position and continues to record
until the track is cleared or saved.
CREATE WAYPOINT—Touch this
button to create a waypoint at the current
position of the cursor on the map. When
this button is touched a keyboard is dis-
played to type a name for the waypoint.
When [DONE] is touched, the waypoint
is placed on the map and can be managed
through the Waypoint Manager.
CLEAR TRACK—Touch this button
to clear the currently recording track.
SAVE TRACK—Use this button to
save the currently recording track. When
this button is touched, a keyboard is dis-
played to type a name for the track. When
[DONE] is touched, the track is diagramed
on the map.
