below the Autolaunch speed, the tab de-
ploys to one-hundred percent (100%).

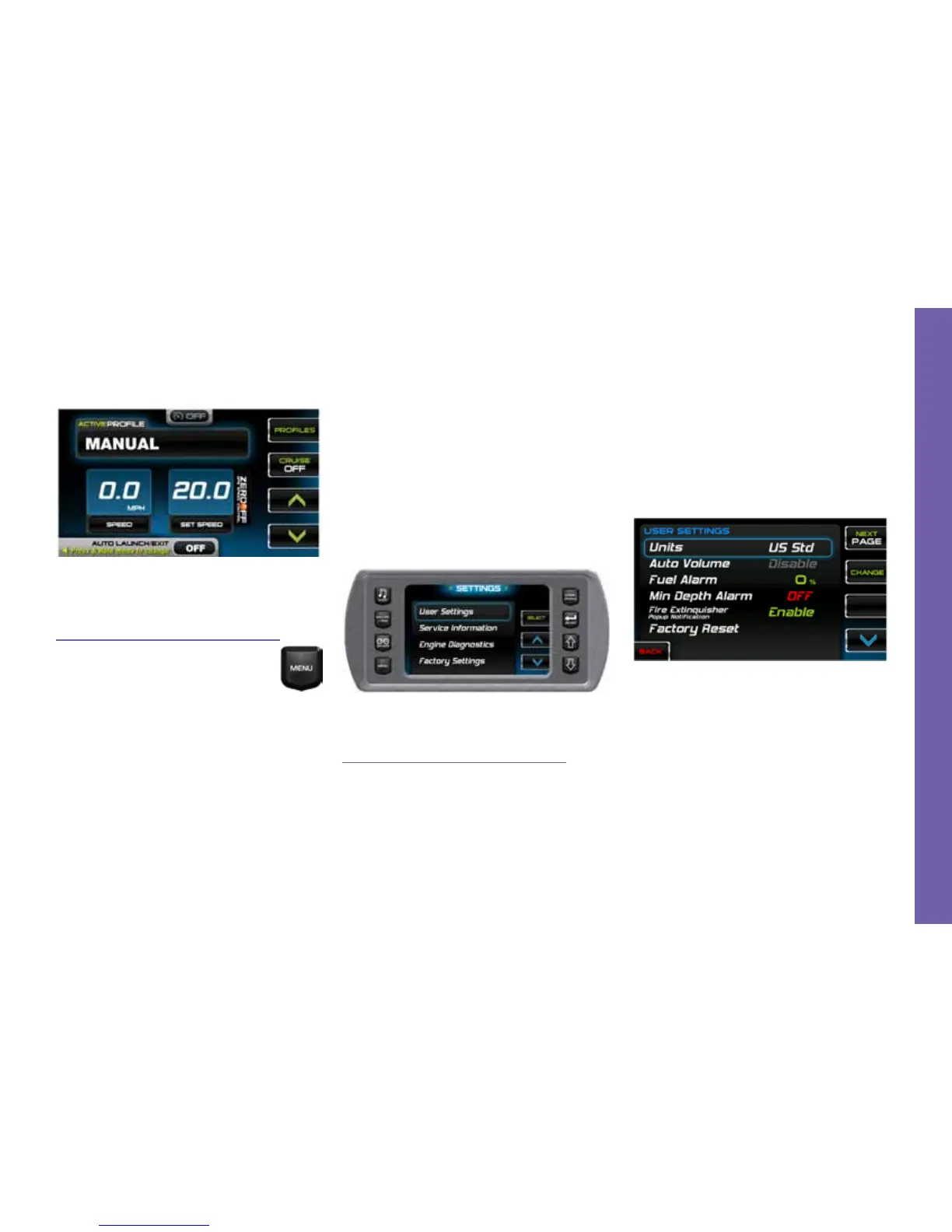

Main Settings Menu
The Main Menu screen for
viewing engine statistics is acces-
sible by pressing Quick Access
Key.
The following settings are available:
USER SETTINGS—This allows you to
customize the display options for ambi-
ent light and brightness, set U.S. or metric
units, and other settings.
SERVICE INFORMATION—This pro-
vides information about the software ver-
sion, dealer, oil changes and dealer services.
NOTE: Some settings require a dealer
code to access.
ENGINE DIAGNOSTICS—Displays a
list of engine fault codes and descriptions;
on some engines, corrective action will be
shown.
FACTORY SETTINGS—Displays the
boat model, attitude adjustment (center)
tab, surf tabs and depth transducer.
NOTE: These settings require a dealer
code to access.
User Settings
The User Settings option provides the
user with a way to specify viewing prefer-
ences. The settings are all edited by touch-
ing the soft keys to the right of the option.
Touch [USER SETTINGS] to access the
rst of two user setting screens.
User Settings–
Soft Key Commands
NEXT PAGE—Advances to the next or
previous page of settings.
CHANGE—Changes the currently select-
ed setting.
DOWN ARROW—Highlights the next
setting.
BACK—Returns to the Main Settings
menu.
PLUS—Increases the setting value.
MINUS—Decreases the setting value.
Gauges & Video Screens • 2014 MasterCraft Owners Manual Page 3-11
G A U G E S & V I D E O S C R E E N S
