Gauges & Video Screens • 2014 MasterCraft Owners Manual Page 3-47
G A U G E S & V I D E O S C R E E N S

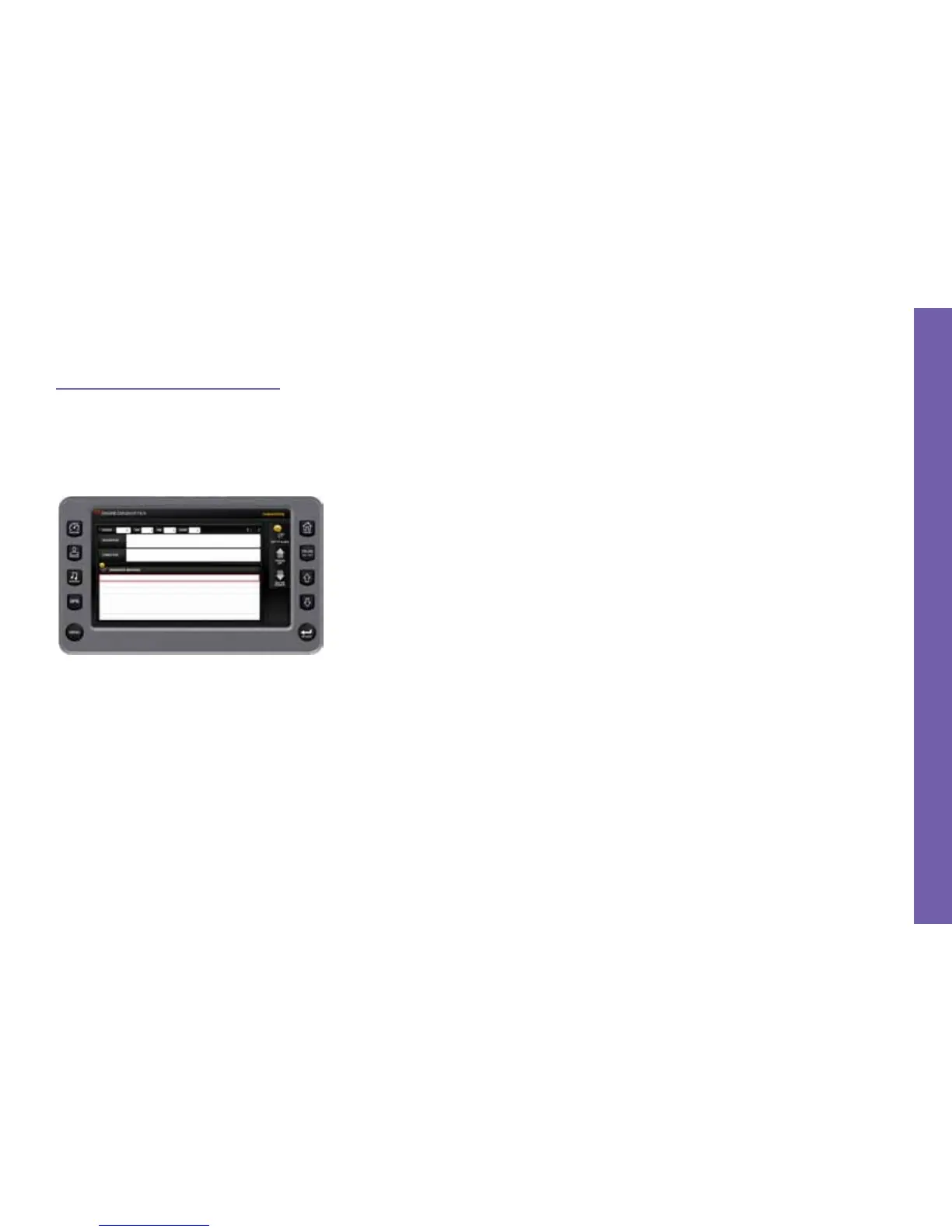

Engine Diagnostics
When choosing this selection, the dis-
play will query the engine’s ECU, and pro-
vide feedback on any diagnostic codes that
have been activated and stored in the ECU
for service needs.
Engine Diagnostics–
Soft Key Commands
GET FAULTS—Queries the engine’s
ECU for feedback on diagnostic codes that
have been activated and stored in the ECU
for service needs.
UP—DOWN—Navigates through the
fault list.
The following is a list of eld denitions
contained on the ENGINE DIAGNOS-
TICS screen:
SOURCE—Identies the component
having the fault: engine 1, 2 or auxiliary.
STATUS—Indicates whether the fault
has been corrected.
SPN—“Suspect parameter Number”—
fault code.
If not translated into text by the display,
see an authorized MasterCraft dealer.
FMI—“Failure Mode Indicator’’—fault
code.
The FMI is dened by SAW J1939. If
not translated into text, see an authorized
MasterCraft dealer.
COUNT—The number of times the
event has been agged.
Description—Most common SPNs and
FMIs have text for the description stored in
the display. If there is no text, then this SPN
and FMI must be dened by referring to
the engine manufacturer or the SAE J1939
standard.
NOTE: This eld is only used with cer-
tain models of engines.
CORRECTION—Suggested action for
correction.
Fault Code Pop-ups
A fault condition will trigger a pop-up
dialog box on the screen describing the na-
ture of the fault.
How to Hide/Show Faults
To hide the fault code pop-up being dis-
played on the screen, press the soft key next
to the “Hide” icon. The pop-up will disap-
pear. However, the “Warning” or “Stop”
icon will remain on the screen to indicate
there is still a fault. Pressing “Hide” does
not clear the fault; it only hides the pop-up
message.
When a fault code has been hidden,
a “Show” icon will remain in the bottom
right corner. When this soft key is pressed,
the fault code will again be displayed.
Scrolling Through
Multiple Messages
The title bar of the fault code pup-
up may indicate multiple messages, as
