3-8 MASTERFLEX
®
Digital Pump Drive Operating Manual Masterflex
Section 3
Operation
Tubing Size: and its Maximum Flow Rate are displayed. Select desired
tubing size by using the UP/DOWN keys to highlight the size tubing
installed in the pump head and press ENTER.
Settings Menu
(continued)

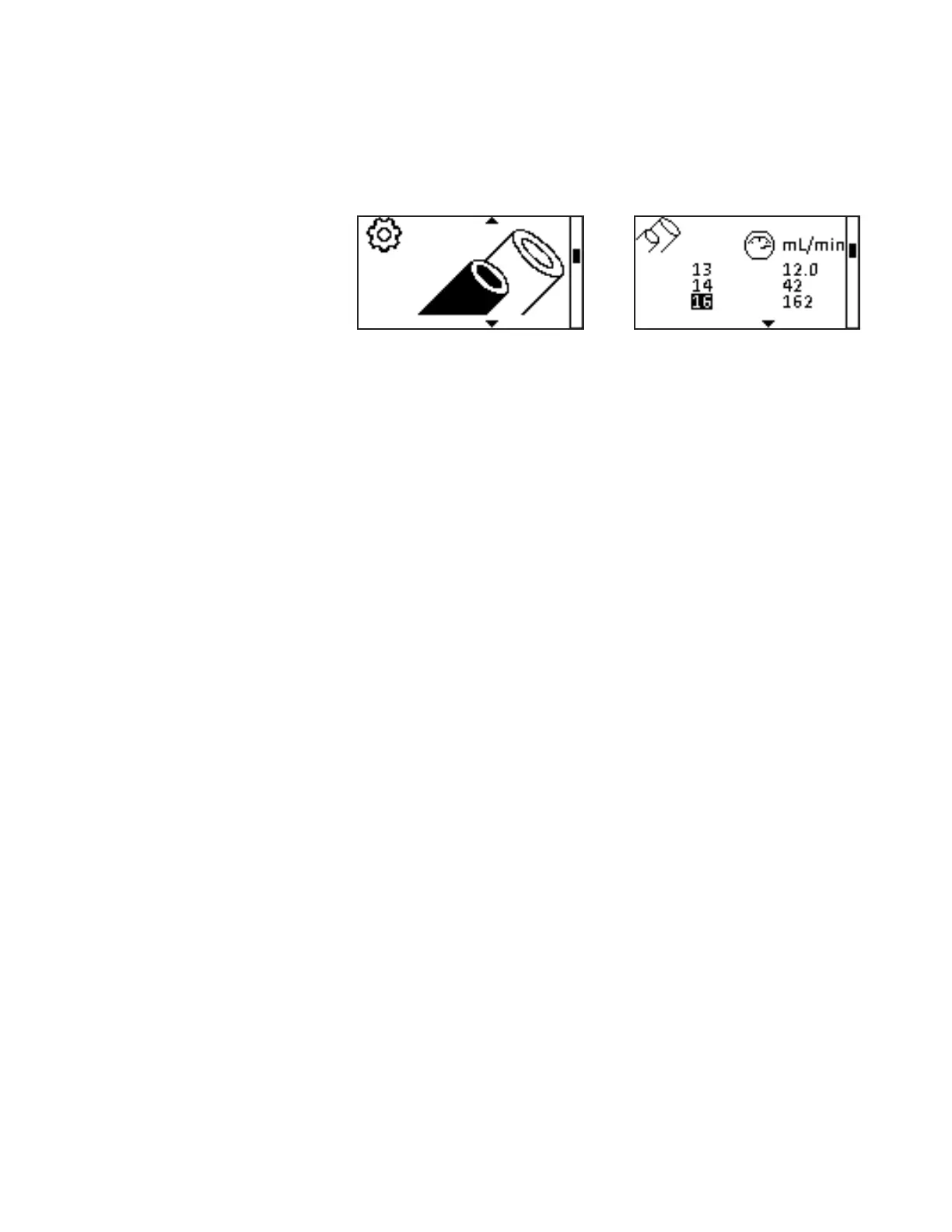

Figure 3-5. Tubing Size Selection Screens.
