7.4 DC wiring
Notes: – DC wiring is the same for parallel and split-phase systems.
– Use ONE battery bank whose capacity is suitable for the application.
– Always use the same length cables! Be aware that to keep the drawings in this chapter
clear and easy to read, the cable lengths have not been drawn in proportion to each other.
* Integrate a fuse holder in the positive battery wire but do not place the fuse yet!

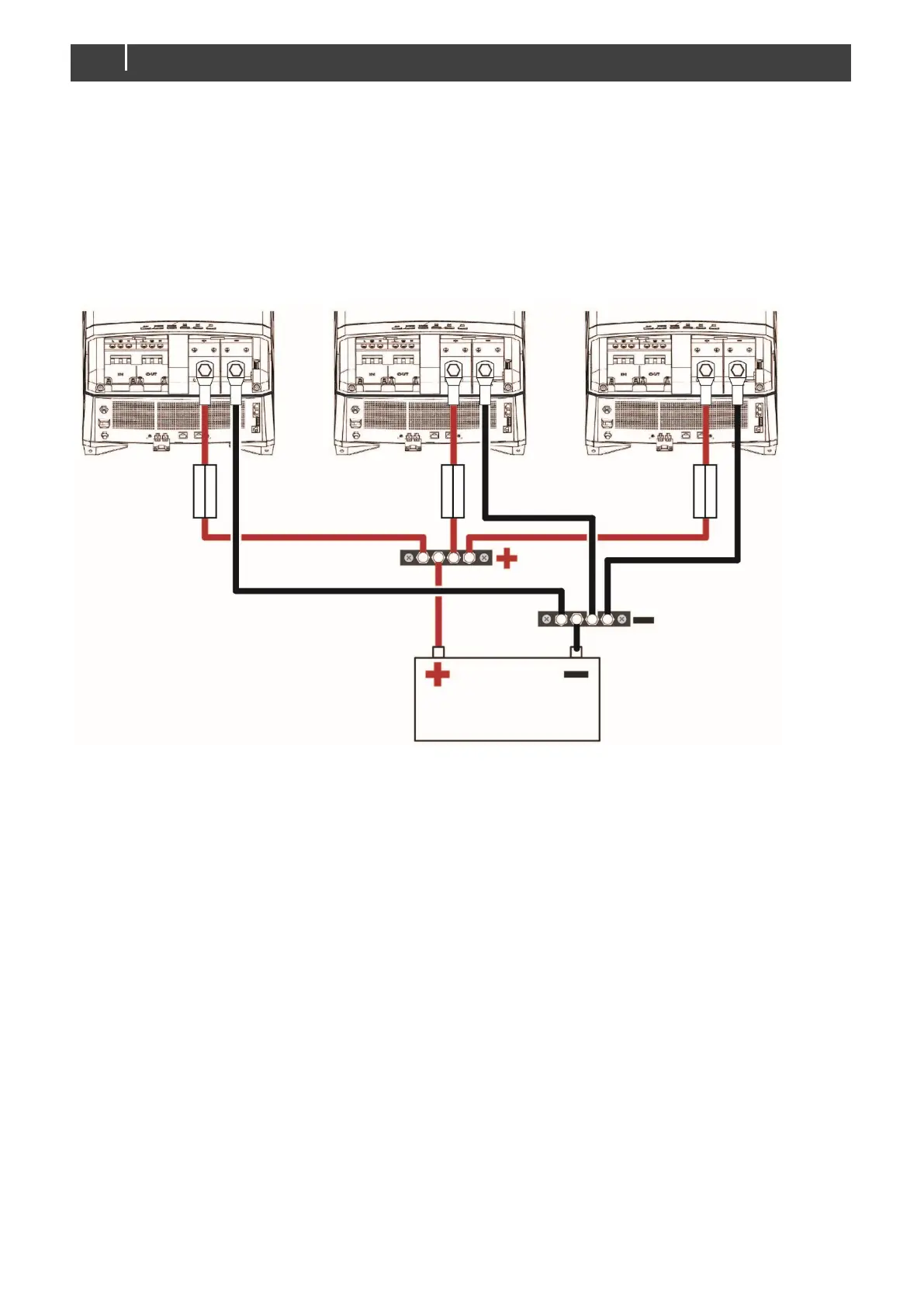

Figure 10: DC wiring example
Primary
Replica 1
Replica 2
(RED)
(BLACK)
BATTERY BANK
*
*
*
