7.5.1 AC wiring of single-phase parallel units
Connect the AC input L, PE and N wires to the AC IN screw terminals.

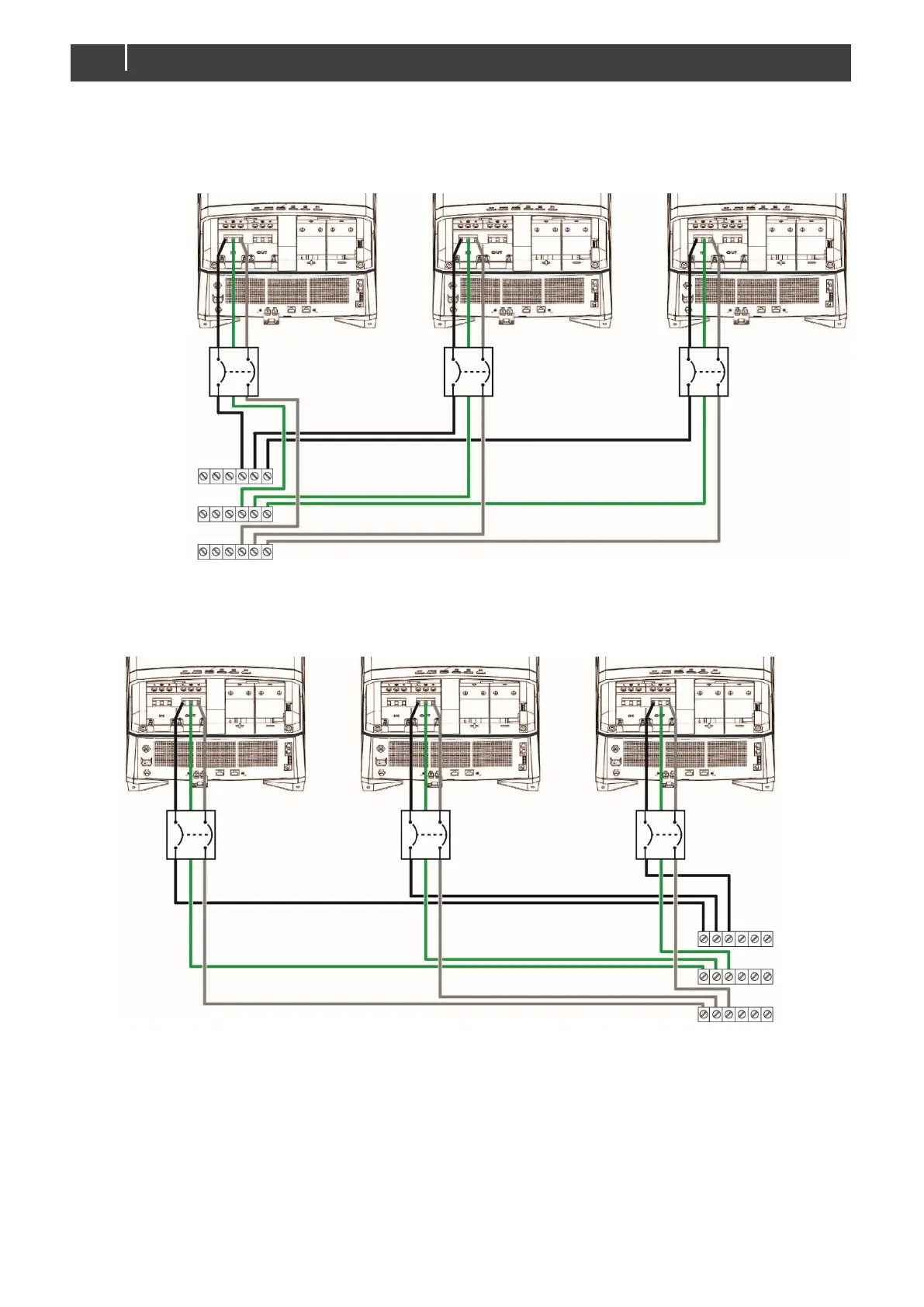

Figure 12: wiring single-phase AC IN
Connect the AC output L, PE and N wires to the AC OUT screw terminals.
Figure 13: wiring single-phase AC OUT
Primary
Replica 1
Replica 2
AC IN
PE (GREEN)
N (WHITE)
L (BLACK)
Primary
Replica 1
Replica 2
AC OUT
PE (GREEN)
N (WHITE)
L (BLACK)
