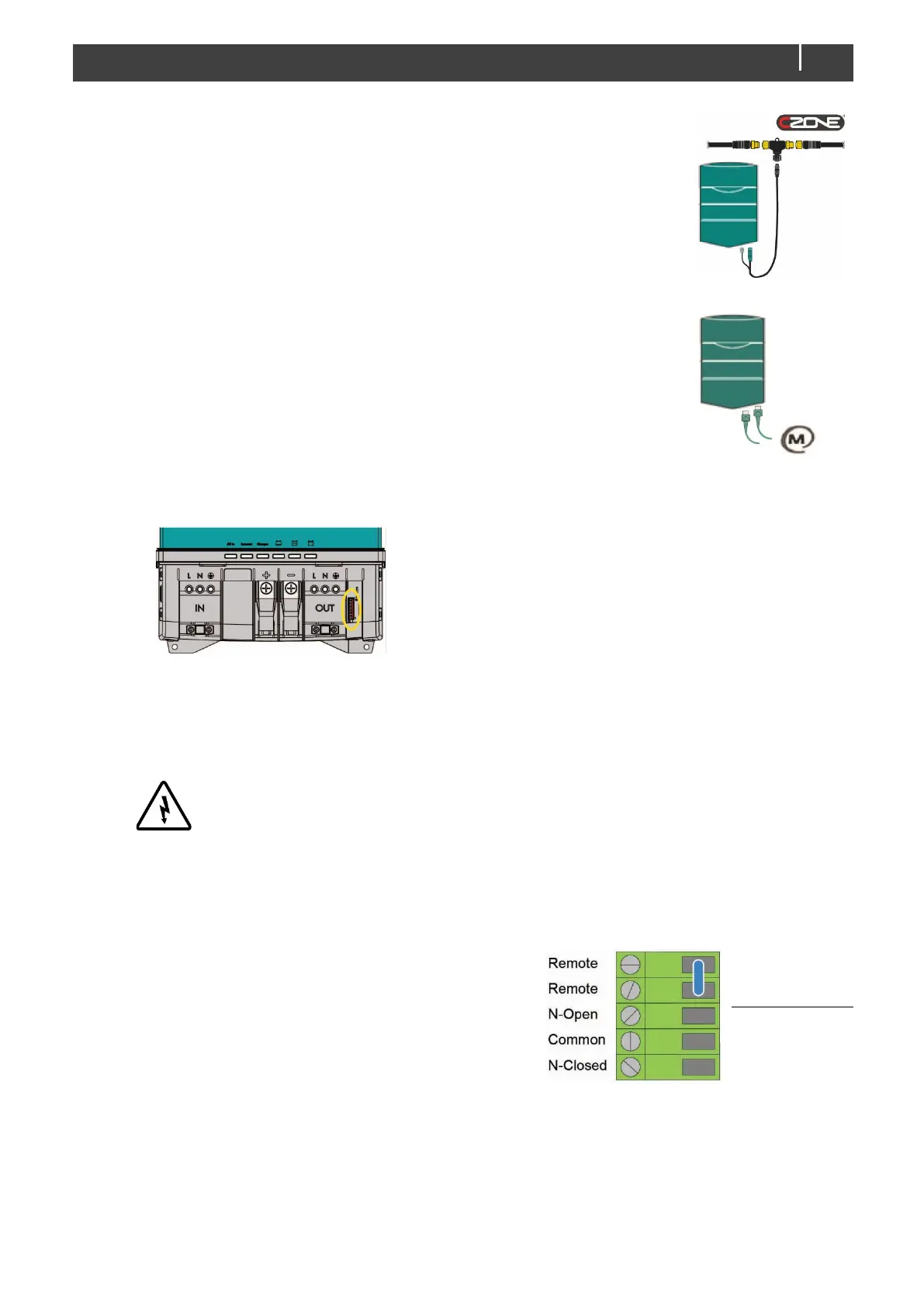

Adding the CombiMaster Inverter/Charger to a CZone network

1 Disconnect the backbone at the closest backbone connection

and add in a tee connector.

2 Reconnect the backbone connection with the new tee connector

in place.

3 Connect the RJ45 CZone drop cable to the black coupler on the

tee and then plug the connectors into either of the

communication ports of the CombiMaster Inverter/Charger.

Adding the CombiMaster Inverter/Charger to a MasterBus

network

1 Disconnect a MasterBus cable or Terminator from the closest

MasterBus device and connect it to the CombiMaster

Inverter/Charger.

2 Connect the new MasterBus cable to the other MasterBus device

and then connect to the CombiMaster Inverter/Charger.

3 Ensure that the network is properly terminated.

Step 12. Option: use a small screwdriver to change DIP switch settings. See section 5.1 on page 25.

Note: if added to a CZone network, the DIP switches are

used to set the CZone address.

Step 13. Option: connect external alarm or remote switch input. See section 4.8.

Step 14. Set the desired output voltage and other configuration settings using a remote control panel

or the DIP switches, see chapter 5 on page 25.

Step 15. Check all wiring. If all wiring is OK: open the safety switch (if available) and place the inverter

fuse.

WARNING!

When the fuse is placed, internal capacitors may cause a spark. This is normal

Step 16. Close the connection compartment and fix the screws at the bottom.

Step 17. Close the safety switch (if available) and switch on the CombiMaster Inverter/Charger.

4.8 Accessories connector (dry contacts)

The screw terminal at the bottom side of the CombiMaster

Inverter/Charger, offers the following contacts:

Remote

switch input

Alarm output

Mastervolt CombiMaster 120V Series User Manual
