17.6 Working with trigger events 137

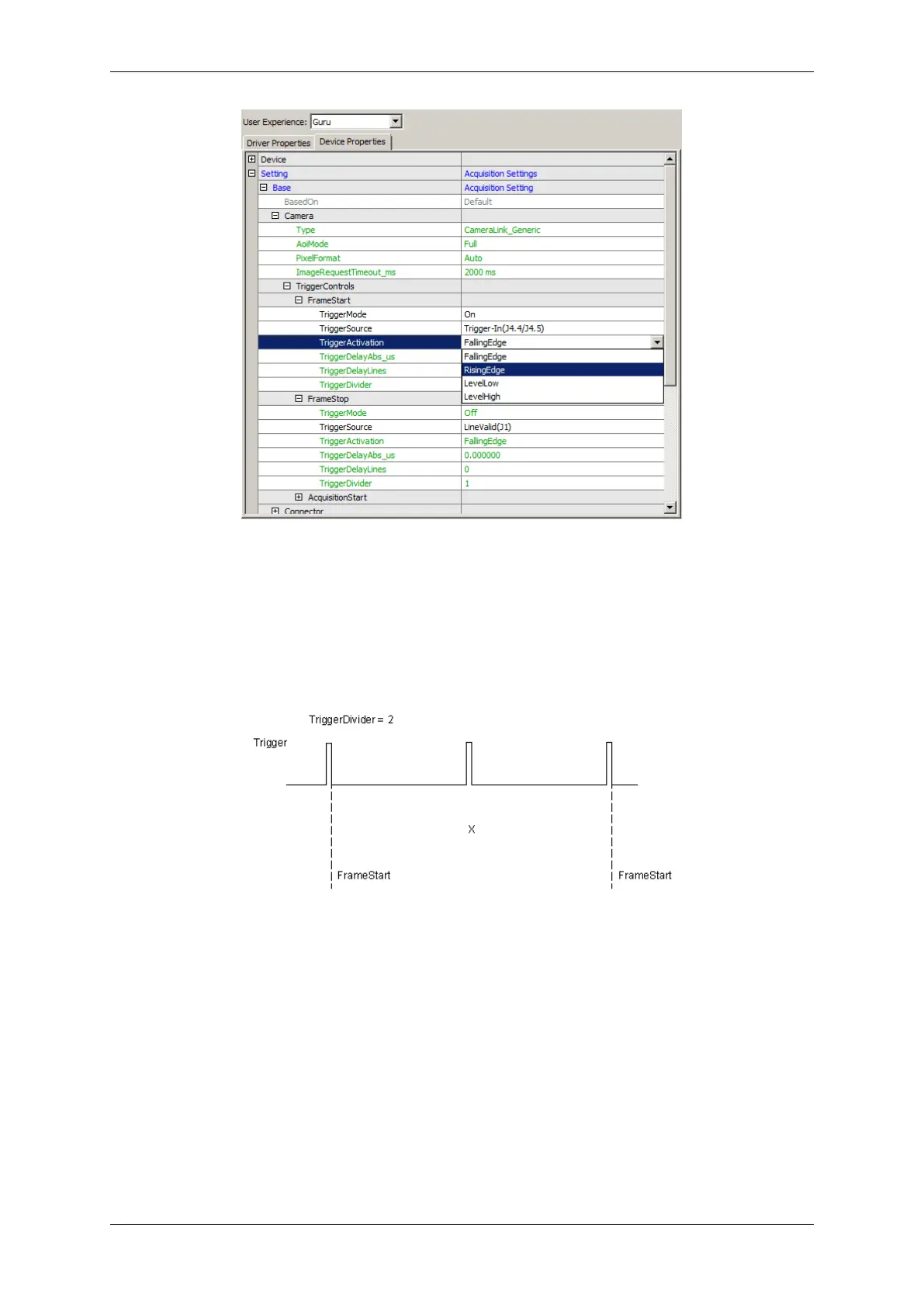

Figure 4: wxPropView - Possible trigger activations
With the property "TriggerDivider" it is possible to define, which trigger events are regarded (see Figure 5).
Figure 5: Trigger divider
17.6.2 FrameStart + FrameStop
In this mode you have two signal definitions. With the appearance of the stop event, the image acquisition will be
stopped line-synchronously and the amount of acquired lines will be available as result or image information.
Figure 7 shows an example definition, where the FrameStart is on a rising edge of J3 and FrameStop is on a falling
edge of J4.
