138 CONTENTS

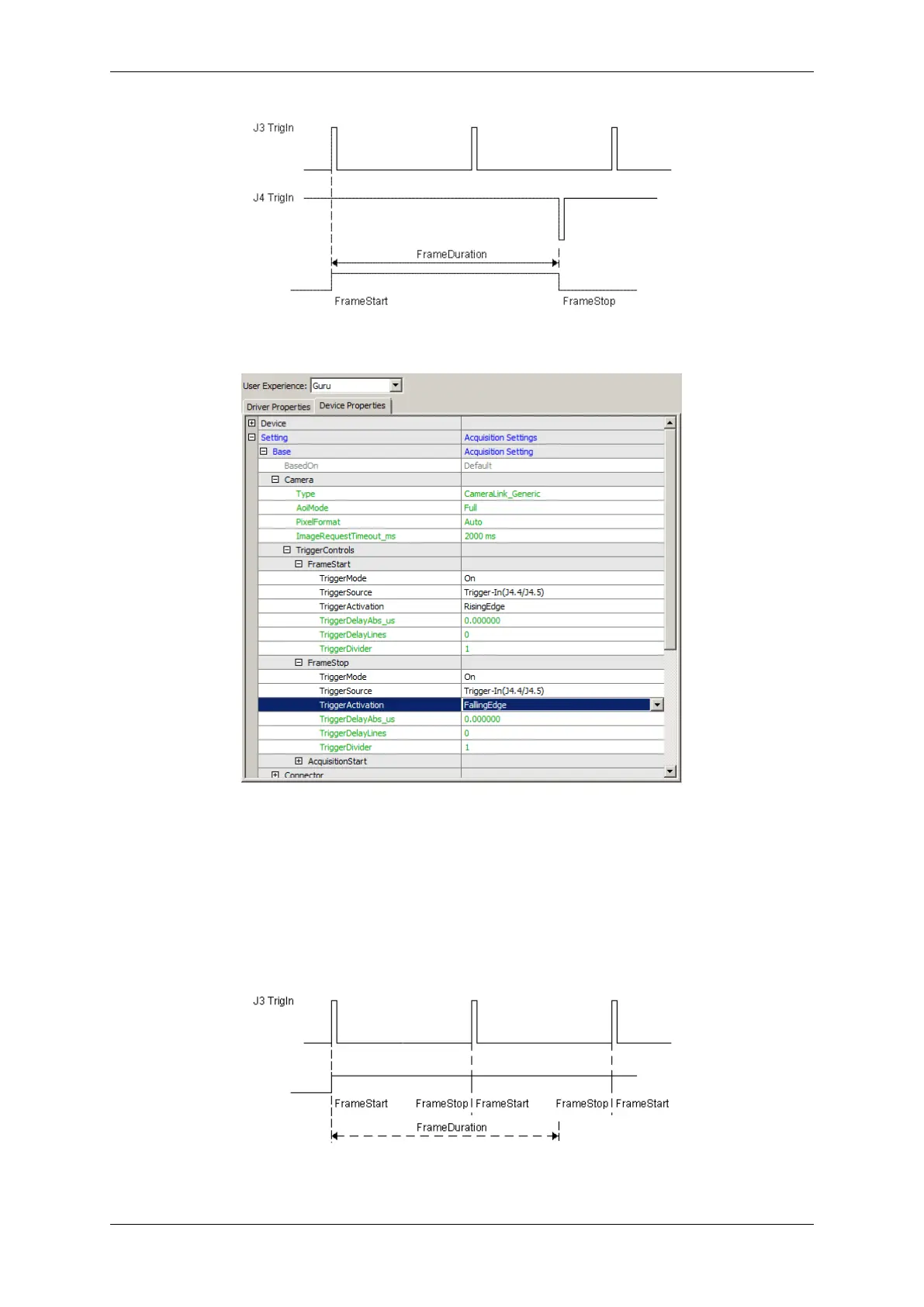

Figure 6: FrameStart and FrameStop
Figure 7: wxPropView - Second trigger on
17.6.2.1 FrameStart + FrameStop (with restart option using the same event)
In this mode every trigger event is accepted at any time during active image acquisition. If a trigger event happens
during an acquisition, the acquisition will be stopped line-synchronously even if all requested lines of the previous
image have not been acquired completely. The amount of lines will be available as result or image information.
You have to select the same parameters using the same event in "FrameStart" and "FrameStop" to activate
this mode.
MATRIX VISION GmbH
