17.6 Working with trigger events 139

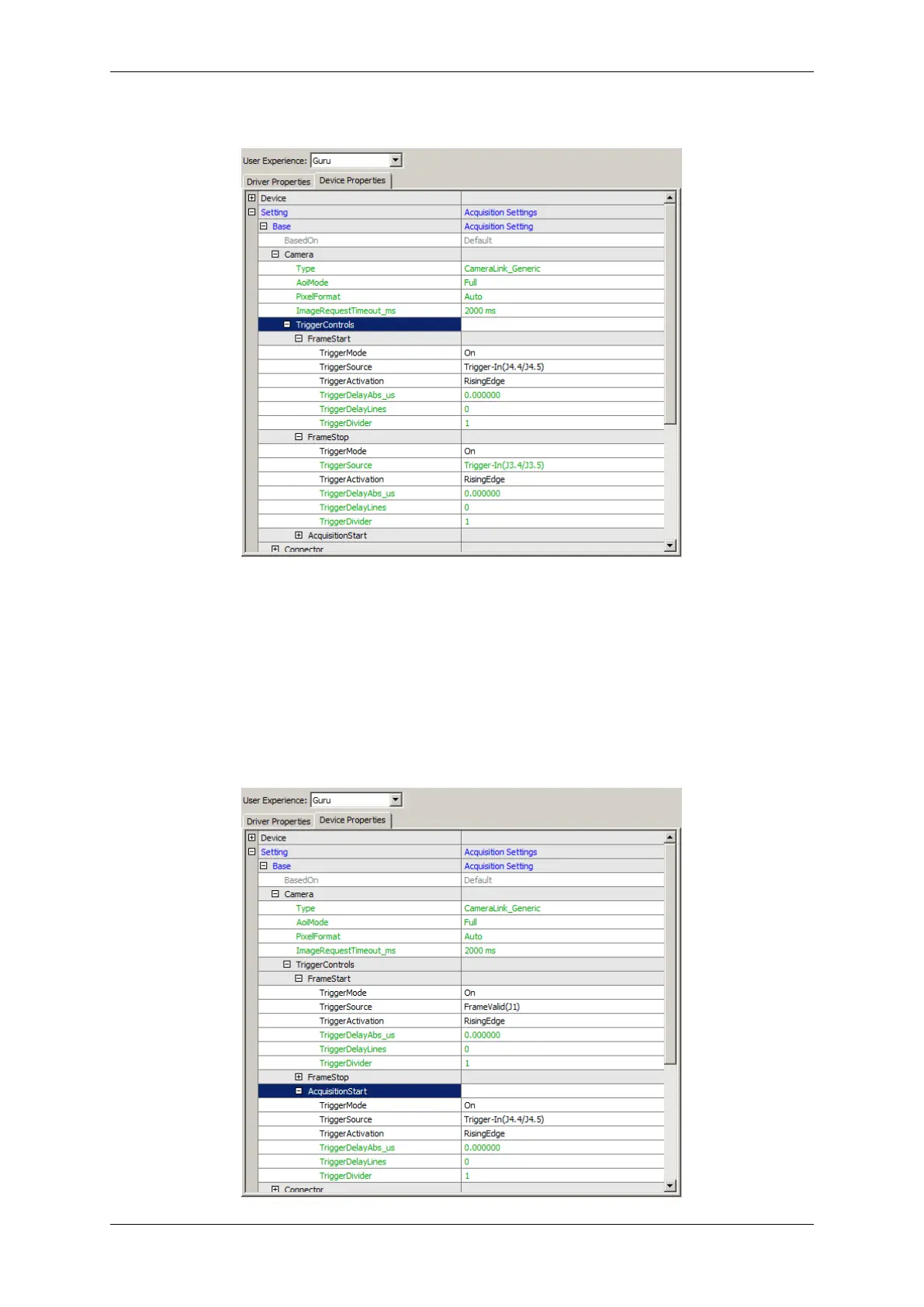

Figure 8: Trigger restart
Figure 9: wxPropView - Trigger overlap
Using line scan cameras, it is possible to define a delay using "TriggerDelayLines". With it you can shift,
for example, the FrameStart.
17.6.3 AcquisitionStart
Some cameras like line scan cameras send "FrameValid" or "LineValid" as a signal for "FrameStart".
Anyway, it is necessary to have the possibility to set the start of the acquisition. This can be done using "←-
AcquisitionStart".
MATRIX VISION GmbH
