Matrix ClimbMill C50-F - Console Replacement

22
5.3 CONSOLE REPLACEMENT
1) Turn off power and disconnect the cord from the machine.

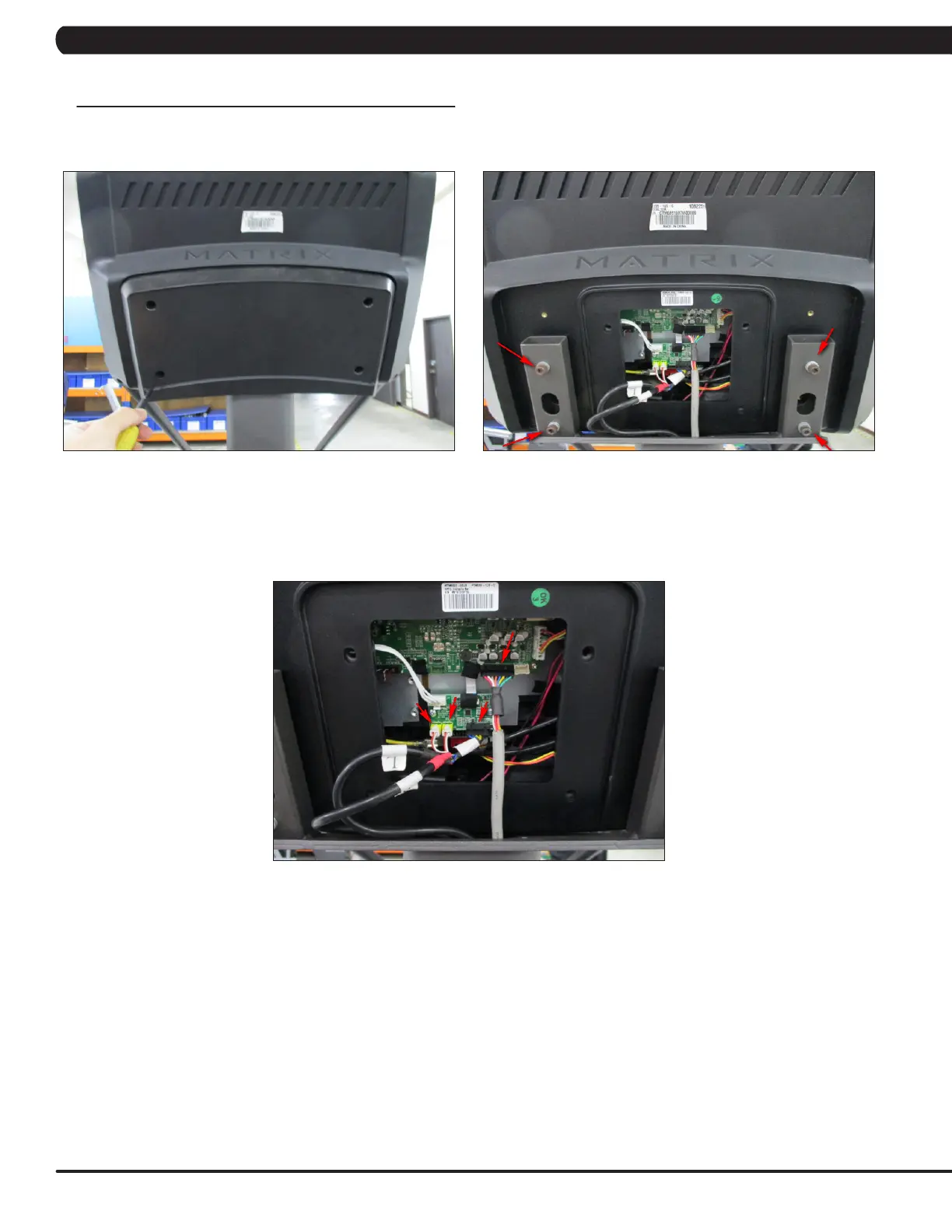

2) Remove the 4 screws holding the console back cover to the console (Figure A).
3) Remove the 4 screws holding the console to the console mast (Figure B).
4) Disconnect the console cable and other wiring (hand pulse and quick key cables) from the console, then remove the console (Figure C).
5) Reverse Steps 1-4 to install a new console set. NOTE: Tighten the bolts removed in Step 3 to 9.5 N-m.
6) Test the Climb Mill for function as outlined in Section 5.19.
FIGURE BFIGURE A
CHAPTER 5: PART REPLACEMENT GUIDE
FIGURE C
