CHAPTER 5: PART REPLACEMENT GUIDE
5.10 DRIVE BELT REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Remove the service cover as outlined in Section 5.1.
3) Remove the side covers as outlined in Section 5.2.

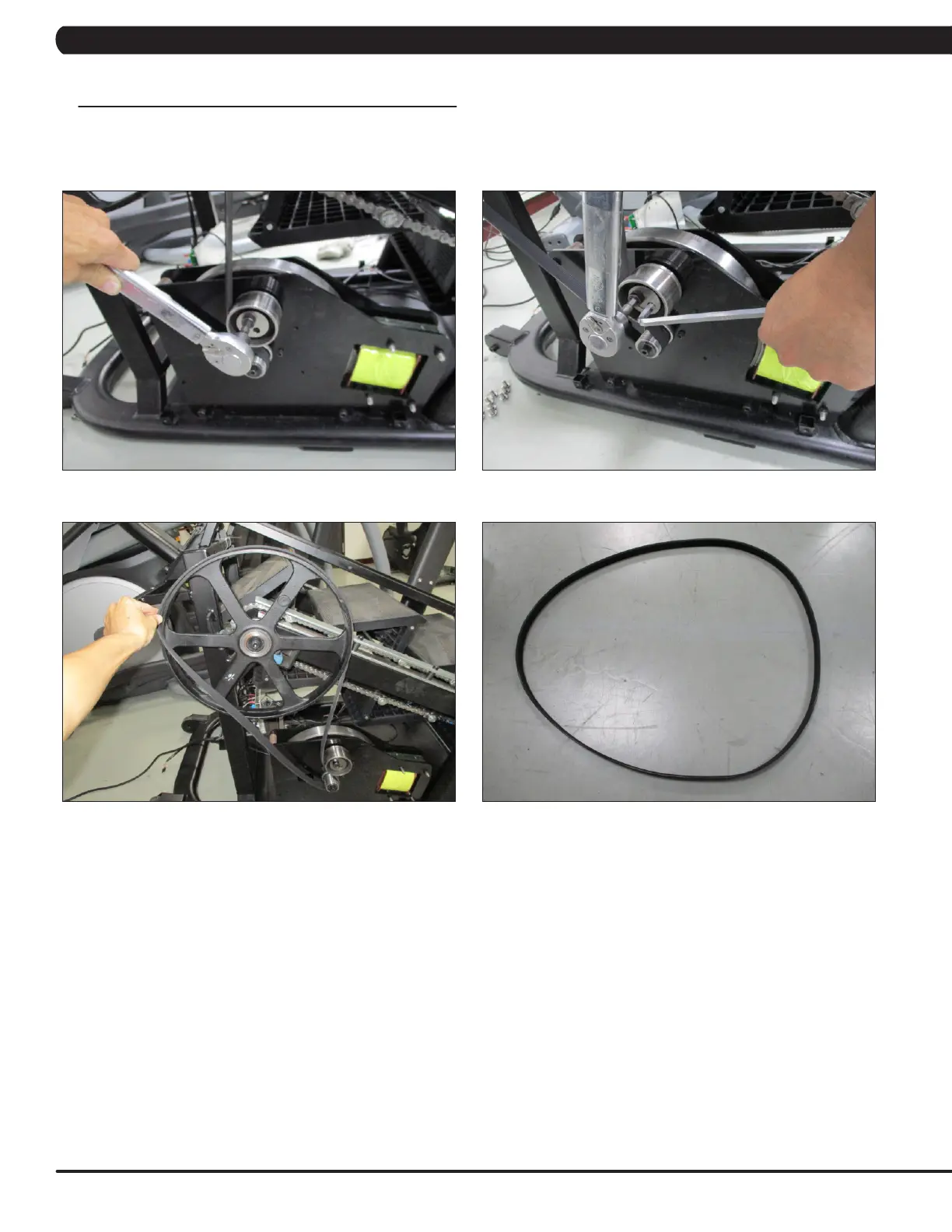

4) Loosen the belt tension bolt and rotate the idler set counter-clockwise until there is enough slack in the belt to remove it (Figures A ~ D).
5) Install the replacement belt and reverse necessary steps to secure the assembly until the belt is tight. NOTE: Tighten the drive belt to 120 ~
130 lbs (90 ~ 105 Hz). The idler bolt should be torqued to 80 N-m.
6) Test the Climb Mill for function as outlined in Section 5.19.
FIGURE BFIGURE A
FIGURE DFIGURE C
