CHAPTER 5: PART REPLACEMENT GUIDE
5.7 EMERGENCY STOP SET REPLACEMENT

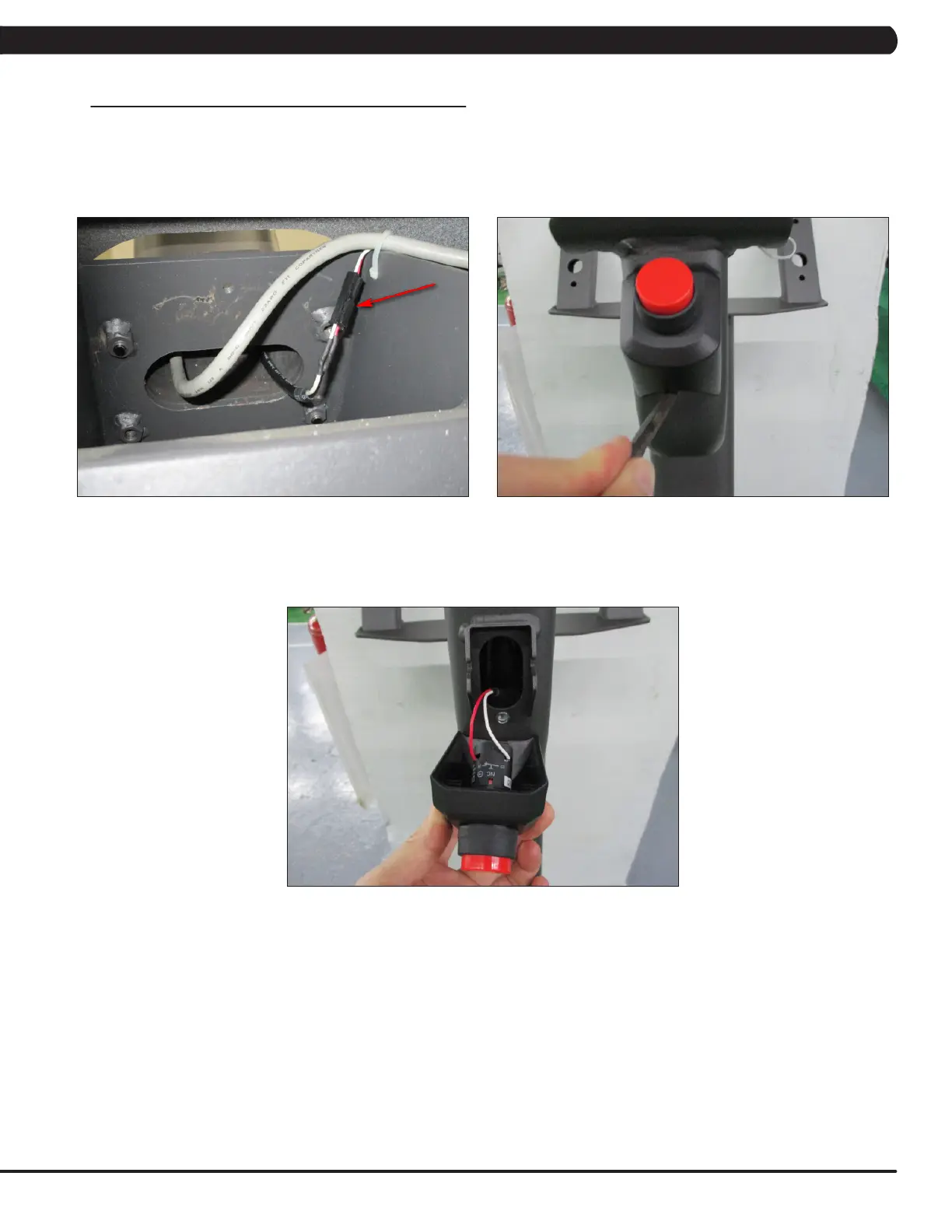

FIGURE A
FIGURE B
A. Emergency Stop Set (on the console mast)
1) Turn off power and disconnect the cord from the machine.
2) Remove the service cover as outlined in Section 5.1.
3) Disconnect the E-stop wire connector at the bottom of the console mast (Figure A).
4) Remove the screw holding the E-stop set to the console mast (Figure B).
5) Pull the E-stop set out of the console mast (Figure C).
6) Reverse Steps 1-5 to install a new E-stop set.
7) Test the Climb Mill for function as outlined in Section 5.19.
FIGURE C
