28
CHAPTER 5: PART REPLACEMENT GUIDE
5.7 EMERGENCY STOP SET REPLACEMENT - CONTINUED

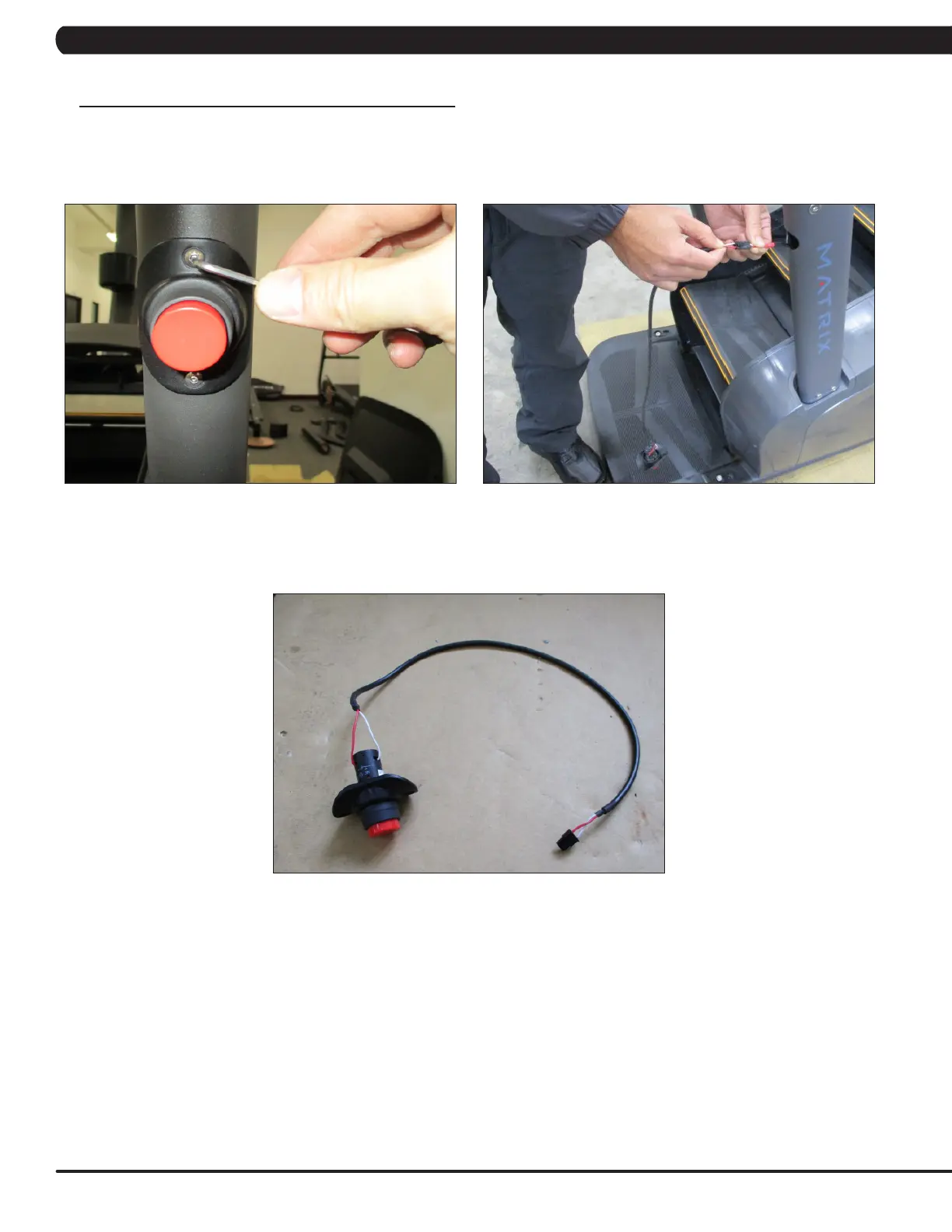

B. Emergency Stop Set (on the lower right side handlebar)
1) Turn off power and disconnect the cord from the machine.
2) Remove the 2 screws holding the E-stop set to the lower right side handlebar (Figure A).
3) Pull the E-stop cable connector out of the handlebar mast and disconnect it (Figure B).
4) Remove the E-stop set (Figure C).
5) Reverse Steps 1-4 to install a new E-stop set.
6) Test the Climb Mill for function as outlined in Section 5.19.
FIGURE A FIGURE B
FIGURE C
To Next Page
