CHAPTER 5: PART REPLACEMENT GUIDE
5.16 CONTROL ZONE REPLACEMENT
1) Turn off power and disconnect the cord from the machine.
2) Remove the 2 screws holding the control zone to the frame (Figure A).
3) Pull up on the Control Zone carefully (Figure B).
4) Unplug the wire from the Control Zone (Figure C) and remove the Control Zone from the unit (Figure D).
5) Reverse Steps 1-4 to install a new Control Zone.
6) Test the Climb Mill function as outlined in Section 5.19.

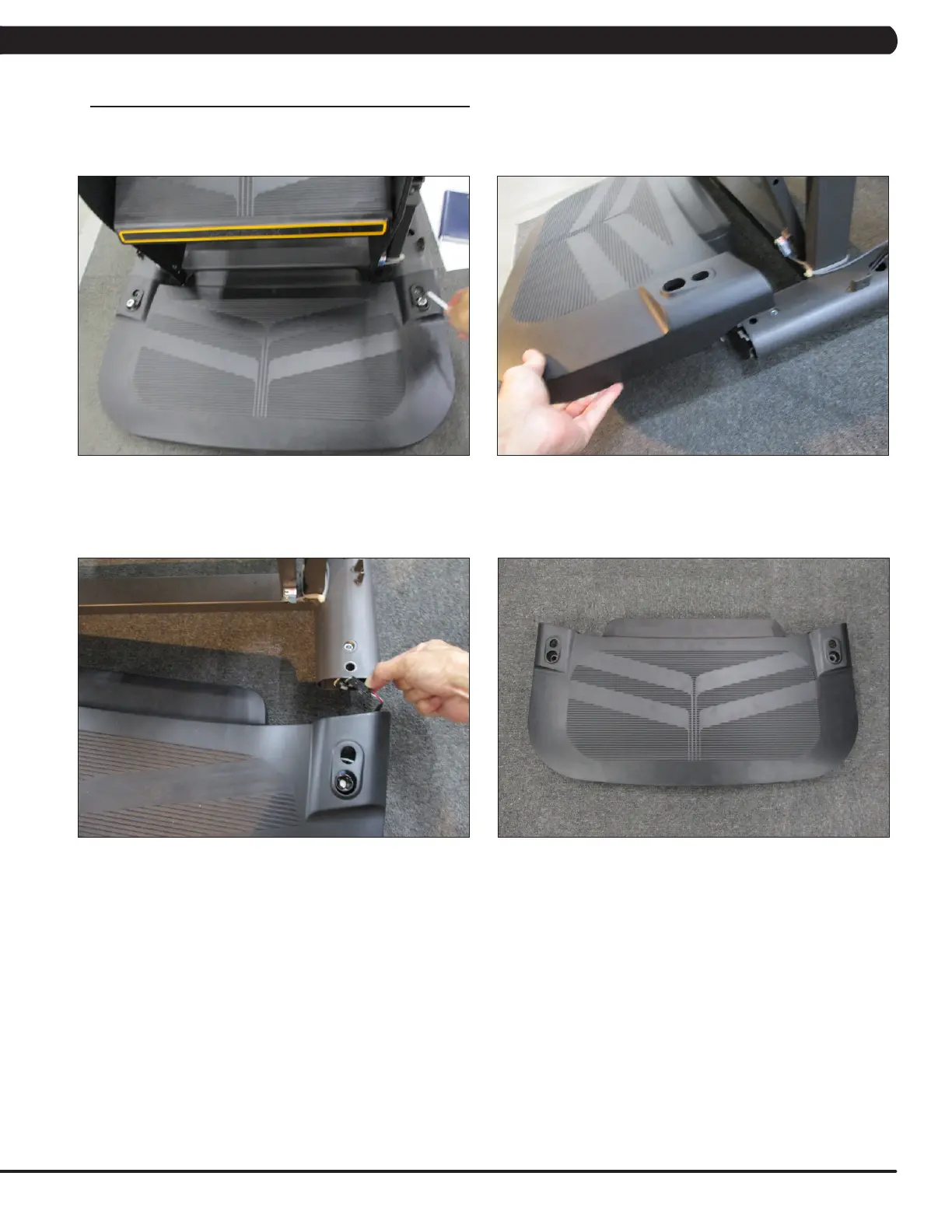

FIGURE A FIGURE B
FIGURE DFIGURE C
