31
5.9 STAIR REPLACEMENT - CONTINUED
7) Remove the axle from the lower side of the stairs needing to be replaced following the same procedure as Steps 4-6.

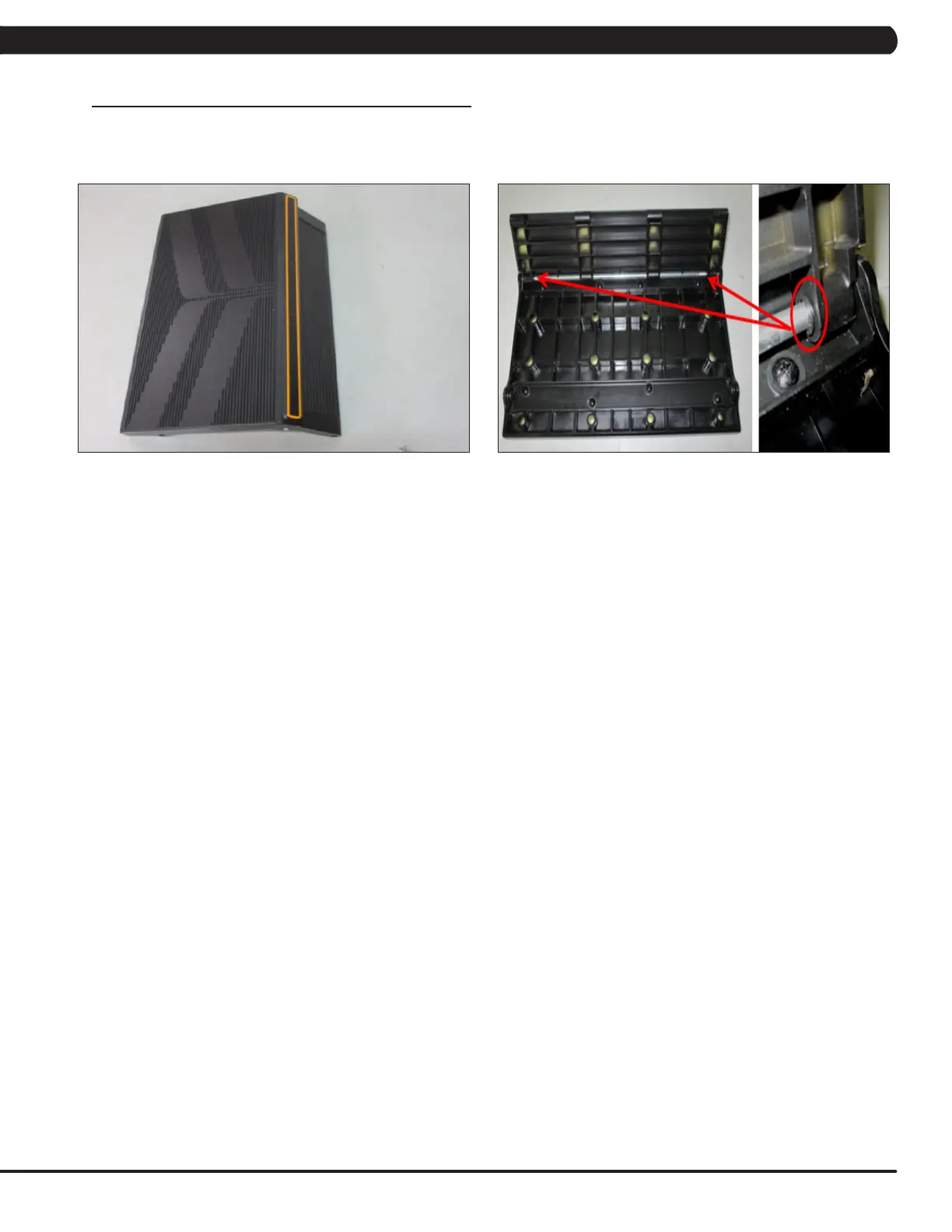

8) Remove the stair set when you have removed both axles (Figure E).
9) Remove the E-shaped clip from the short axle between the 2 portions of the stair set (Figure F). This will allow you to separate the 2 portions
of the stair set.
10) Reverse Steps 1-9 to install a new stair set.
11)Turnthebrakebartothelefttounlockthestairsoncethereplacementisnished.
12) Test the Climb Mill for function as outlined in Section 5.19.
FIGURE FFIGURE E
CHAPTER 5: PART REPLACEMENT GUIDE
