28 Matrix ETERNITY Quick Start

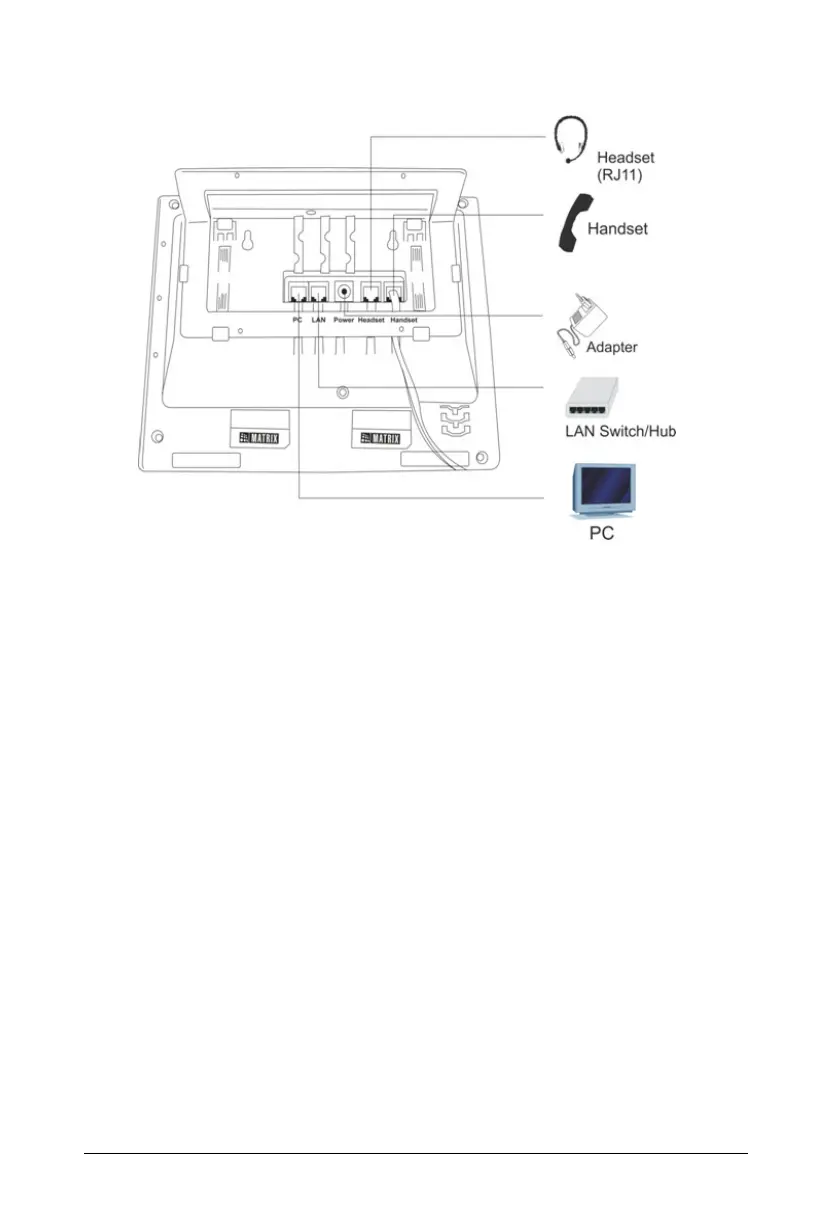

• If you want to use a Headset (not supplied) with your phone, you may plug a
headset with a 2.5 mm single connector into the headset jack on the left side
panel of the phone.
OR
You may plug a headset with an RJ11 connector in to the headset port at the
bottom of the phone.
• Connect the LAN Port of SETU VP248 to the LAN Switch/Hub or a Router/
Modem, according to your installation scenario.
• To connect your phone to a computer on your desk, use an Ethernet cable (not
supplied with this phone) to connect the PC Port of the phone to the LAN Port of
the computer.
• Plug the connector of the Power Adapter in to the power jack at the back of the
phone. Use only the adapter provided with the phone to prevent any damages
that may arise from the use of other adapters.
If your phone supports Power over Ethernet (PoE), and you want to use PoE,
make sure that your LAN supports PoE. Supply power through an 802.3af
connection on the LAN Port of the phone. Do not connect the Adapter!
